NCP96-BEPEK (2005)

Toyota Belta

Production Nov 2005 - Aug 2008
Engine 2NZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0511- )2NZFE

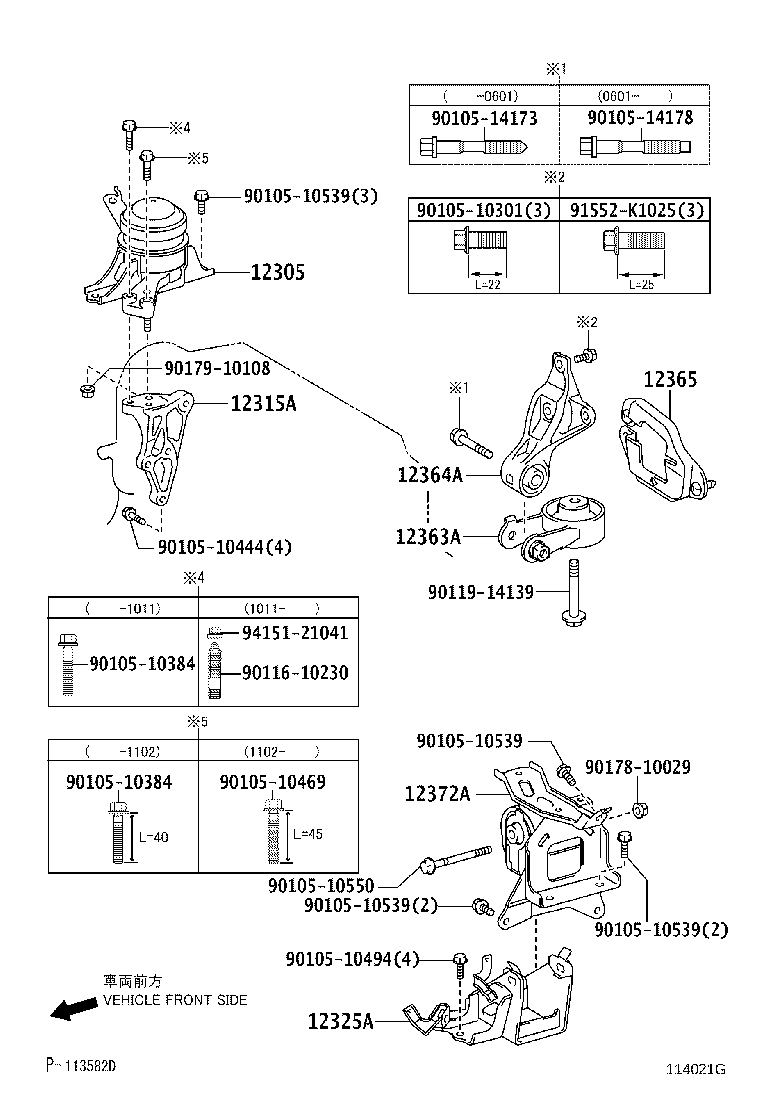

Click highlighted areas on diagram

diagram 12305 12315A 12325A 12363A 12364A 12365 12372A 9010510301 9010510384 9010510384 9010510444 9010510469 9010510494 9010510539 9010510539 9010510539 9010510539 9010510550 9010514173 9010514178 9011610230 9011914139 9017810029 9017910108 91552K1025 9415121041
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-21200

2NZFE..NCP96

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-21031

2NZFE..NCP96

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21180

2NZFE..NCP96

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-21080

2NZFE..NCP96

 1
12364A - ROD, ENGINE LATERAL CONTROL
12364-21040

2NZFE..NCP96

 1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40010

2NZFE..NCP96

寒冷地仕様

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-21150

2NZFE..NCP96

 1
Common parts
90105-10301
90105-10384
90105-10444
90105-10469
90105-10494
90105-10539
90105-10550
90105-14173
90105-14178
90116-10230
90119-14139
90178-10029
90179-10108
91552-K1025
94151-21041
