Toyota Bb QNC25 EXHAUST PIPE - JDM Part Detective

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17410-B1150	K3VE..QNC25	01/2006 - 09/2008	1
17410-B1150	K3VE..QNC25	09/2008 - 02/2010	1
17410-B1151	K3VE..QNC25	03/2010 - 09/2014	1
17410B - GASKET, EXHAUST PIPE
17451-B1031	K3VE..QNC25	05/2009 - 09/2014	1
17451-B1030	K3VE,3SZVE..QNC2#	01/2006 - 09/2008	1
17451-B1030	K3VE,3SZVE..QNC2#	09/2008 - 04/2009	1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
17569-97201	K3VE,3SZVE..QNC2#	01/2006 - 09/2008	2
17569-97201	K3VE..QNC25	09/2008 - 09/2014	2
17410K - SPRING, EXHAUST PIPE
17152-97201	K3VE..QNC25	09/2008 - 09/2014	2
17152-B1010	K3VE,3SZVE..QNC2#	01/2006 - 08/2006	2
1741A - PIPE SET, EXHAUST
17410-B9720	K3VE..QNC25	01/2006 - 09/2008	1
17410-B9720	K3VE..QNC25	09/2008 - 09/2014	1
17448 - BAFFLE, TAIL PIPE
17448-B1010	K3VE..QNC25	09/2008 - 09/2014	1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-B2010	K3VE..QNC25	09/2008 - 09/2014	3
17567-87210	K3VE,3SZVE..QNC2#	01/2006 - 09/2008	3
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-B2010	K3VE..QNC25	09/2008 - 09/2014	3
17567-87210	K3VE,3SZVE..QNC2#	01/2006 - 09/2008	3
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-B2010	K3VE..QNC25	09/2008 - 09/2014	3
17567-87210	K3VE,3SZVE..QNC2#	01/2006 - 09/2008	3

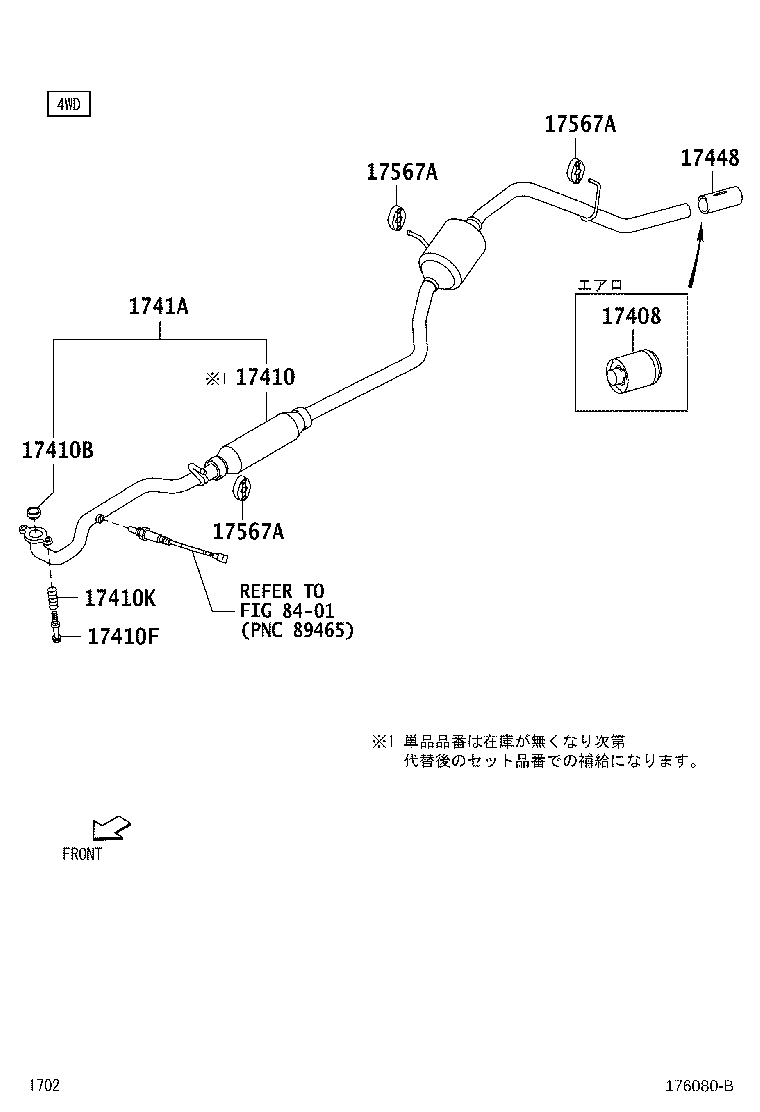

Linked diagrams
8401

QNC25-BHSXK (2008)
