QNC25-BHSXK (2006)

Toyota Bb

Production Jan 2006 - Sep 2008
Engine K3VE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1607)

Click highlighted areas on diagram

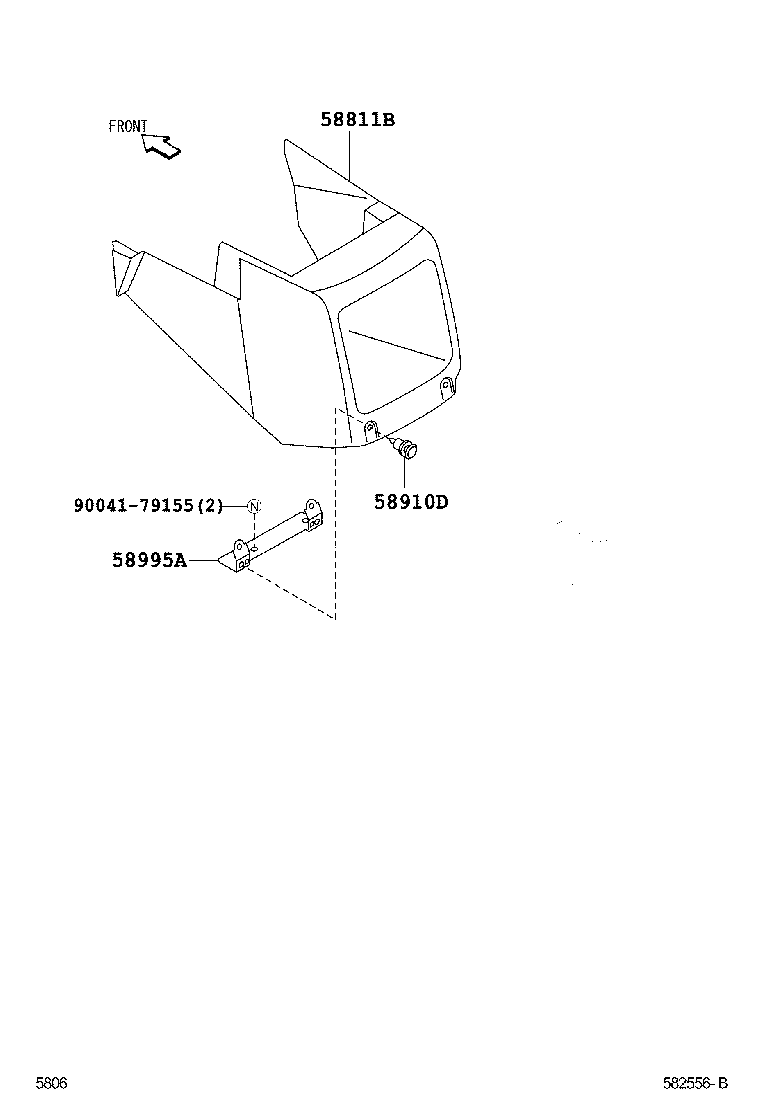

diagram 58811B 58910D 58995A 9004179155
Part # Description Qty Price
58811B - BOX, CONSOLE
58801-B1010B0

QNC2#

DK.GRAY,TRIM1#

 1
58801-B1020B0

QNC2#

寒冷地仕様,DK.GRAY,TRIM1#

 1
58910D - CLIP(FOR CONSOLE BOX)
90467-07055C1

QNC2#

-,ﾌﾞﾗｯｸ

 2
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-B1010

QNC2#

 1
Common parts
90041-79155
