QNC25-BHSXK (2006)

Toyota Bb

Production Jan 2006 - Sep 2008
Engine K3VE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )

Click highlighted areas on diagram

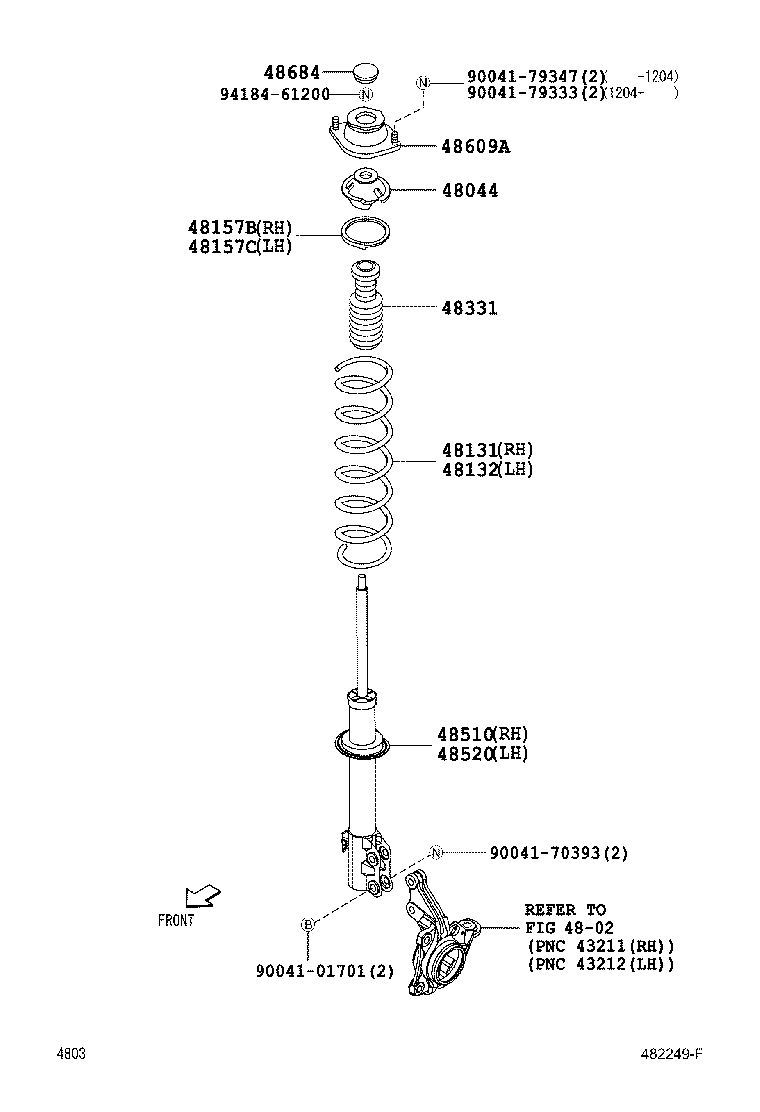

diagram 4802 48044 48131 48132 48157B 48157C 48331 48510 48520 48609A 48684 9004101701 9004170393 9004179333 9004179347 9418461200
Part # Description Qty Price
48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1
48470-B1010

QNC2#

 2
48131 - SPRING, FRONT COIL, RH
48131-B1080

QNC25

 1
48132 - SPRING, FRONT COIL, LH
48131-B1080

QNC25

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-B1010

QNC2#

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-B1010

QNC2#

 1
48331 - BUMPER, FRONT SPRING, NO.1
48331-B1020

QNC2#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-B1070

QNC25

 1
48510-B1071

QNC25

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-B1070

QNC25

 1
48510-B1071

QNC25

 1
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-B1010

QNC2#

 2
48684 - COVER, BEARING DUST
48684-87202

QNC2#

 2
Common parts
90041-01701
90041-70393
90041-79333
90041-79347
94184-61200
Linked diagrams
4802

(0601- )

Click highlighted areas on diagram

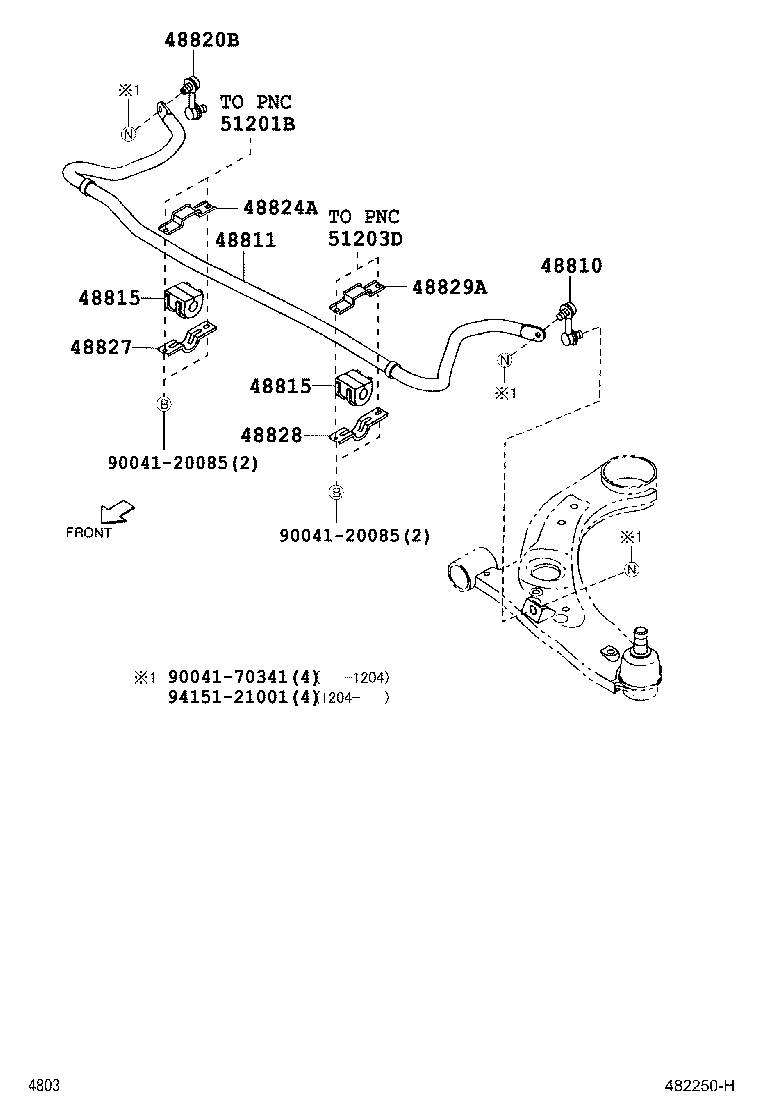

diagram 48810 48811 48815 48815 48820B 48824A 48827 48828 48829A 9004120085 9004120085 9004170341 9415121001
Part # Description Qty Price
48810 - LINK ASSY, FRONT STABILIZER, LH
48831-B1010

QNC2#

 1
48811 - BAR, STABILIZER, FRONT
48811-B1010

QNC2#

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-B1010

QNC2#

 2
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-B1010

QNC2#

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48821-B1010

QNC2#

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-B1010

QNC2#

 1
48827 - BRACKET, FRONT STABILIZER, NO.2 RH
48827-B1010

QNC2#

 1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48827-B1010

QNC2#

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-B1010

QNC2#

 1
Common parts
90041-20085
90041-70341
94151-21001
