QNC25-BHSXK (2006)

Toyota Bb

Production Jan 2006 - Sep 2008
Engine K3VE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )

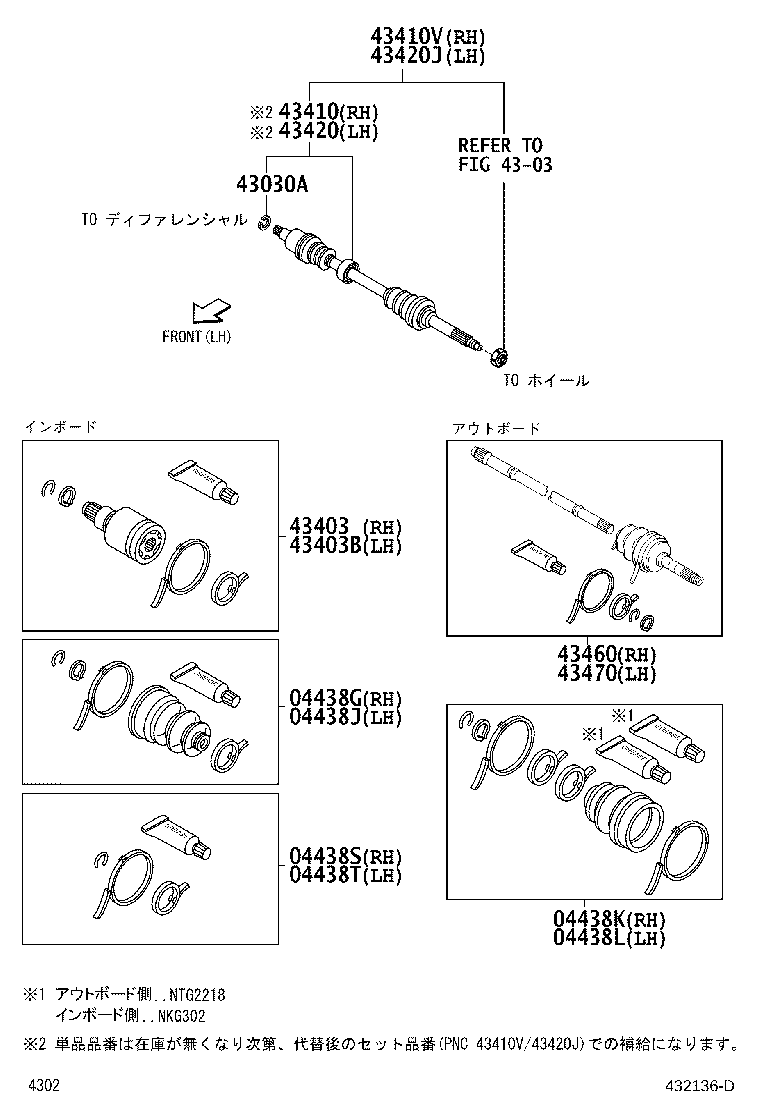

Click highlighted areas on diagram

diagram 04438G 04438J 04438K 04438L 04438S 04438T 4303 43030A 43403 43403B 43410 43410V 43420 43420J 43460 43470
Part # Description Qty Price
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-B1080

QNC2#

 1
04437-B1081

QNC2#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-B1081

QNC2#

 1
04438K - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH
04425-B1080

QNC2#

 1
04425-B1080

QNC2#

 1
04425-B1081

QNC2#

NTN

 1
04438L - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH
04425-B1081

QNC2#

NTN

 1
04425-B1081

QNC2#

NTN

 1
04438S - CLAMP KIT, FRONT DRIVE SHAFT, RH
04435-B1090

QNC2#

 1
04435-BZ010

QNC2#

 1
04438T - CLAMP KIT, FRONT DRIVE SHAFT, LH
04435-B1090

QNC2#

 1
04435-BZ010

QNC2#

 1
43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)
90045-20298

QNC2#

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43408-B9340

QNC25

 1
43408-B9341

QNC25

 1
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43408-B9191

QNC2#

 1
43408-B9190

QNC2#

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-B1070

QNC25

 1
43410V - SHAFT SET, FRONT DRIVE, RH
43410-B9540

QNC25

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-B1030

QNC2#

 1
43420J - SHAFT SET, FRONT DRIVE, LH
43420-B9540

QNC2#

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43411-B9210

QNC25

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43412-B9090

QNC2#

 1
Linked diagrams
4303
