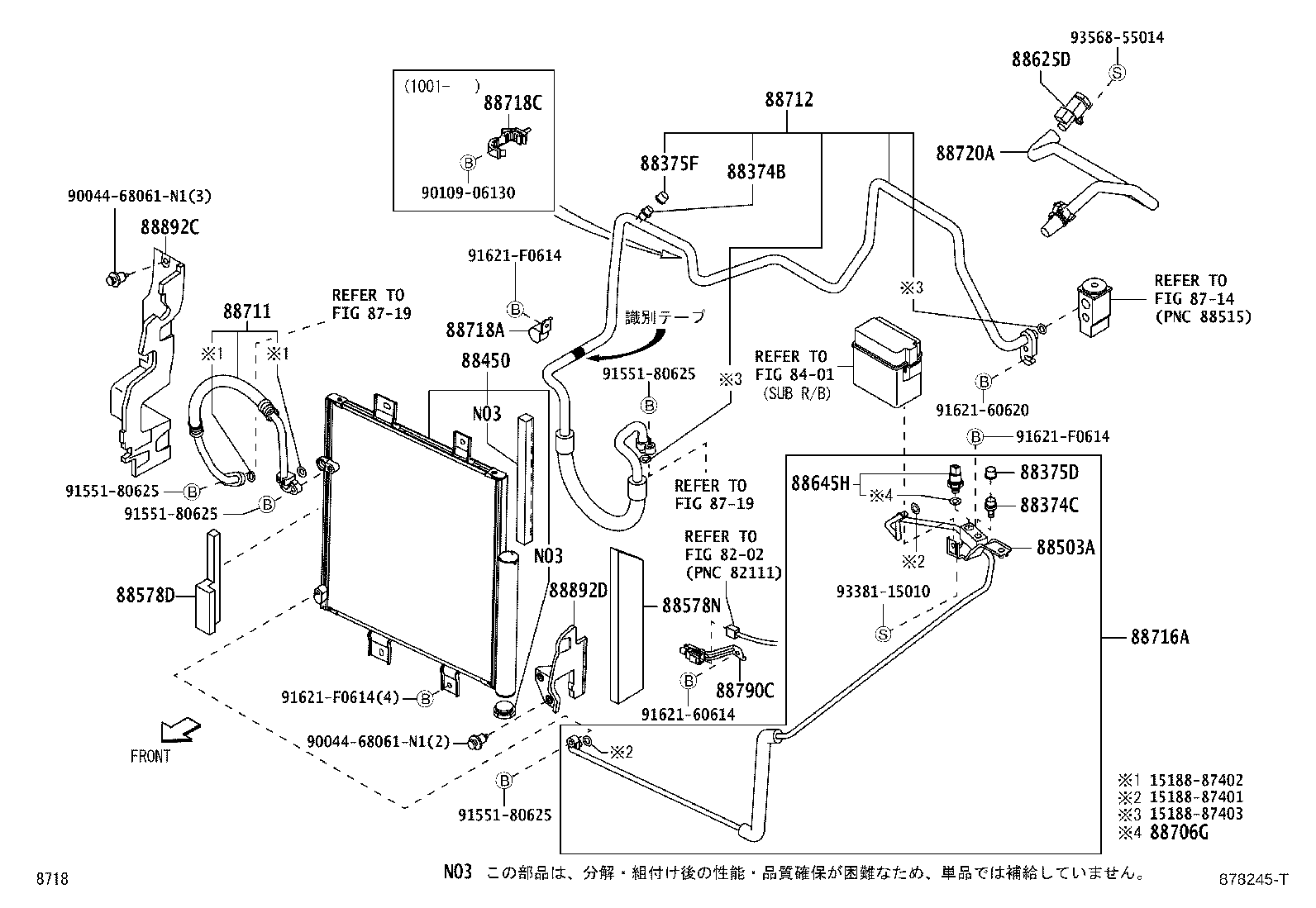

Toyota Bb QNC25 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-87601	QNC2#	01/2006 - 09/2008	1
88374C - VALVE, SERVICE, NO.2
88374-87601	QNC2#	01/2006 - 09/2008	1
88375D - CAP, SERVICE VALVE, NO.2
88375-87603	QNC2#	01/2006 - 09/2008	1
88375F - CAP, SERVICE VALVE, NO.3
88375-87601	QNC2#	01/2006 - 09/2008	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-B1050	QNC2#	01/2006 - 09/2008	1
88503A - BRACKET, PRESSURE REGULATOR
88665-B1010	QNC2#	01/2006 - 09/2008	1
88578D - PACKING, COOLER PIPE, NO.1
88578-B1140	QNC2# ｺﾝﾃﾞﾝｻｰ右側	01/2006 - 09/2008	1
88578N - PACKING, COOLING PIPE, NO.4
88578-B1130	QNC2# ﾗｼﾞｴｰﾀｰﾌｱﾝ側	01/2006 - 09/2008	1
88625D - THERMISTOR, COOLER
88790-B1020	QNC21,25..Z 内気ｾﾝｻｰ	01/2006 - 09/2008	1
88645H - SWITCH, PRESSURE NO.1
88645-20050	QNC2#	01/2006 - 09/2008	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-B1030	QNC2#	01/2006 - 09/2008	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-B1070	QNC2# 識別色 = 青色	01/2006 - 09/2008	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-B1100	QNC2#	01/2006 - 09/2008	1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-B1030	QNC2#	01/2006 - 09/2008	1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-B1010	QNC21,25..Z	01/2006 - 09/2008	1
88790C - THERMISTOR ASSY
88790-B1010	QNC21,25..Z 外気ｾﾝｻｰ	01/2006 - 09/2008	1
88892C - PLATE, CONDENSER, NO.1
88892-B1010	QNC2# ｾﾝﾀ	01/2006 - 09/2008	1
88892D - PLATE, CONDENSER, NO.2
88892-B1020	QNC2# 左側	01/2006 - 09/2008	1
Common parts
15188-87401
15188-87402
15188-87403
90044-68061N1
90109-06130
91551-80625
91621-60614
91621-60620
91621-F0614
93381-15010
93568-55014
Linked diagrams
8202
8401
8714
8719

QNC25-BHSGK (2006)

(0601-1607)
