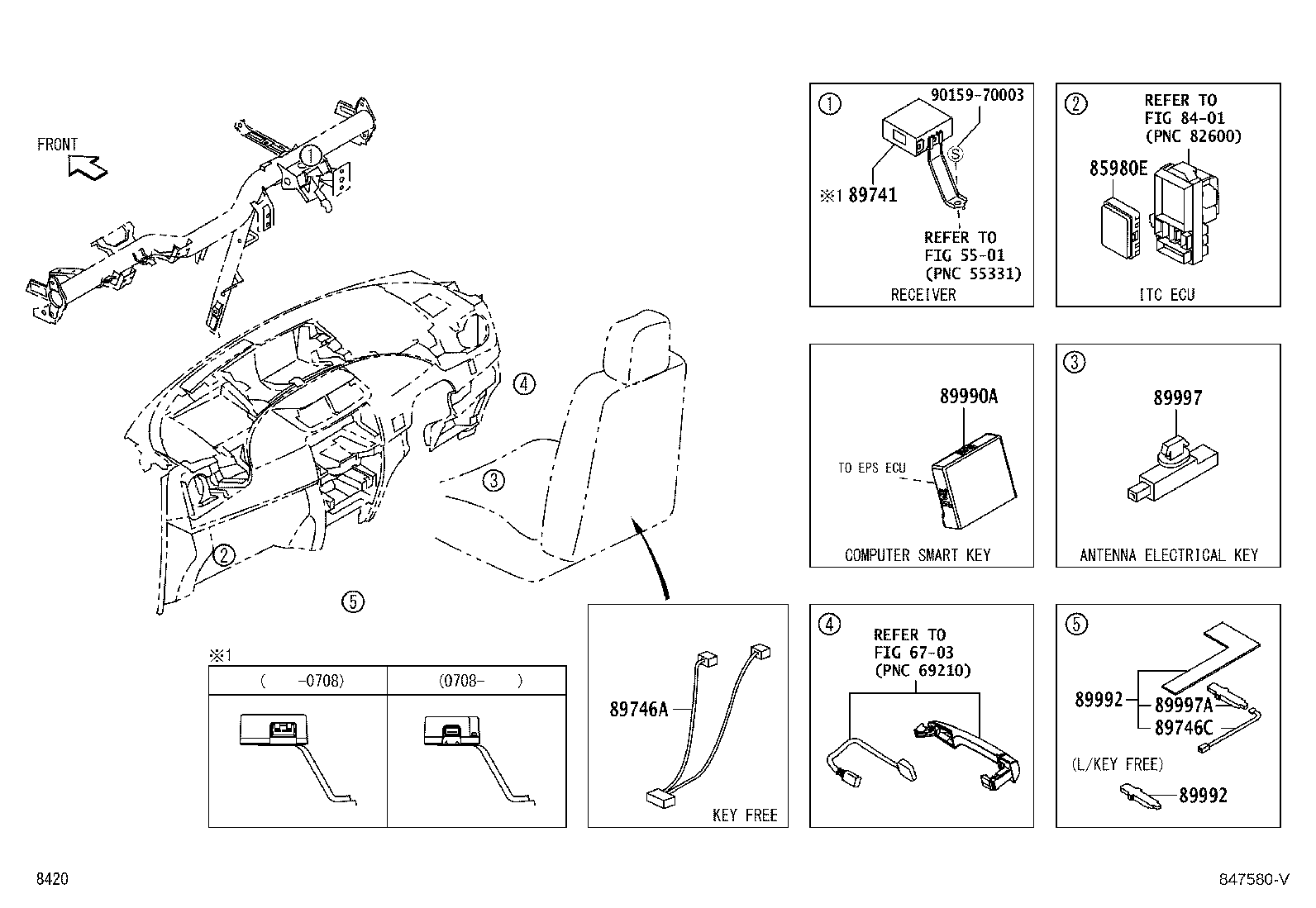

Toyota Bb QNC25 WIRELESS DOOR LOCK

Part #	Description	Period	Qty
85980E - RELAY ASSY, DOOR CONTROL
85980-B1030	QNC20,21;QNC25..Z ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X VERSION *(A))	01/2006 - 09/2008	1
85980-B1010	QNC2#	01/2006 - 09/2008	1
89741 - RECEIVER, DOOR CONTROL
89741-B1022	QNC20,25..S Sｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(J)(K)	12/2006 - 08/2007	1
89741-B1010	QNC20,21;QNC25..Z ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P)),W/ｷｰﾚｽ	01/2006 - 08/2007	1
89741-B1010	QNC20,25..S ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(ｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(K)),W/ｷｰﾚｽ	01/2006 - 08/2007	1
89741-B1070	QNC20,21;QNC25..Z ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P)),W/ｷｰﾚｽ	08/2007 - 09/2008	1
89741-B1070	QNC20,25..S ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(ｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(K)),W/ｷｰﾚｽ	08/2007 - 09/2008	1
89741-B1070	QNC2# W/ｷｰﾚｽ	08/2007 - 09/2008	1
89741-B1022	QNC20,25..S ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(ｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(K)),W/ｷｰﾌﾘｰ	08/2007 - 09/2008	1
89741-B1010	QNC2# W/ｷｰﾚｽ	01/2006 - 08/2007	1
89741-B1022	QNC20,21;QNC25..Z ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P)),W/ｷｰﾌﾘｰ	01/2006 - 09/2008	1
89746A - HARNESS, ELECTRICAL KEY WIRE
89746-B1010	QNC20,21;QNC25..Z ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P))	01/2006 - 09/2008	1
89746-B1010	QNC20,25..S ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(ｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(K))&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ	08/2007 - 09/2008	1
89746-B1010	QNC20,25..S ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(ｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(K))	08/2007 - 09/2008	1
89746-B1010	QNC20,25..S Sｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(J)(K)	12/2006 - 08/2007	1
89746-B1010	QNC20,21;QNC25..Z ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P))&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ	01/2006 - 09/2008	1
89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1
89746-B1020	QNC20,25..S ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(ｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(K))	08/2007 - 09/2008	1
89746-B1020	QNC20,25..S Sｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(J)(K)	12/2006 - 08/2007	1
89746-B1020	QNC20,21;QNC25..Z ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P))	01/2006 - 09/2008	1
89990A - COMPUTER ASSY, SMART KEY
89990-B1020	QNC20,25..S ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(ｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(K))	08/2007 - 09/2008	1
89990-B1020	QNC20,21;QNC25..Z ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P))	01/2006 - 09/2008	1
89990-B1020	QNC20,25..S Sｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(J)(K)	12/2006 - 08/2007	1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-B1010	QNC20,25..S ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(ｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(K))	08/2007 - 09/2008	1
89992-B1010	QNC20,25..S Sｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(J)(K)	12/2006 - 08/2007	1
89992-B1010	QNC20,21;QNC25..Z ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P))	01/2006 - 09/2008	1
89992-B1020	QNC2#	01/2006 - 09/2008	1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-B1010	QNC20,25..S ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(ｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(K))	08/2007 - 09/2008	1
89992-B1010	QNC20,25..S Sｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(J)(K)	12/2006 - 08/2007	1
89992-B1010	QNC20,21;QNC25..Z ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P))	01/2006 - 09/2008	1
89992-B1020	QNC2#	01/2006 - 09/2008	1
89997 - ANTENNA, ELECTRICAL KEY
89997-B4020	QNC20,25..S Sｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(J)(K),ｼｰﾄｸｯｼｮﾝ	12/2006 - 08/2007	1
89997-B4020	QNC20,25..S ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(ｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(K)),ｼｰﾄｸｯｼｮﾝ	08/2007 - 09/2008	1
89997-B4020	QNC20,21;QNC25..Z ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P))&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ	01/2006 - 09/2008	1
89997-B4020	QNC20,21;QNC25..Z ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P)),ｼｰﾄｸｯｼｮﾝ	01/2006 - 09/2008	1
89997-B4020	QNC20,25..S ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(ｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(K))&SRS ｴｱﾊﾞｯｸﾞ−D/P,ｻｲﾄﾞ,ｴｱｶｰﾃﾝ	08/2007 - 09/2008	1
89997A - ANTENNA, ELECTRICAL KEY, NO.2
89997-B1030	QNC20,21;QNC25..Z ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P))	01/2006 - 09/2008	1
89997-B1030	QNC20,25..S ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(ｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(K))	08/2007 - 09/2008	1
89997-B1030	QNC20,25..S Sｶﾞｰﾈｯﾄｴﾃﾞｨｼｮﾝ*(J)(K)	12/2006 - 08/2007	1
Common parts
90159-70003
Linked diagrams
5501
6703
8401

QNC25-BHSGK (2006)

(0601- )
