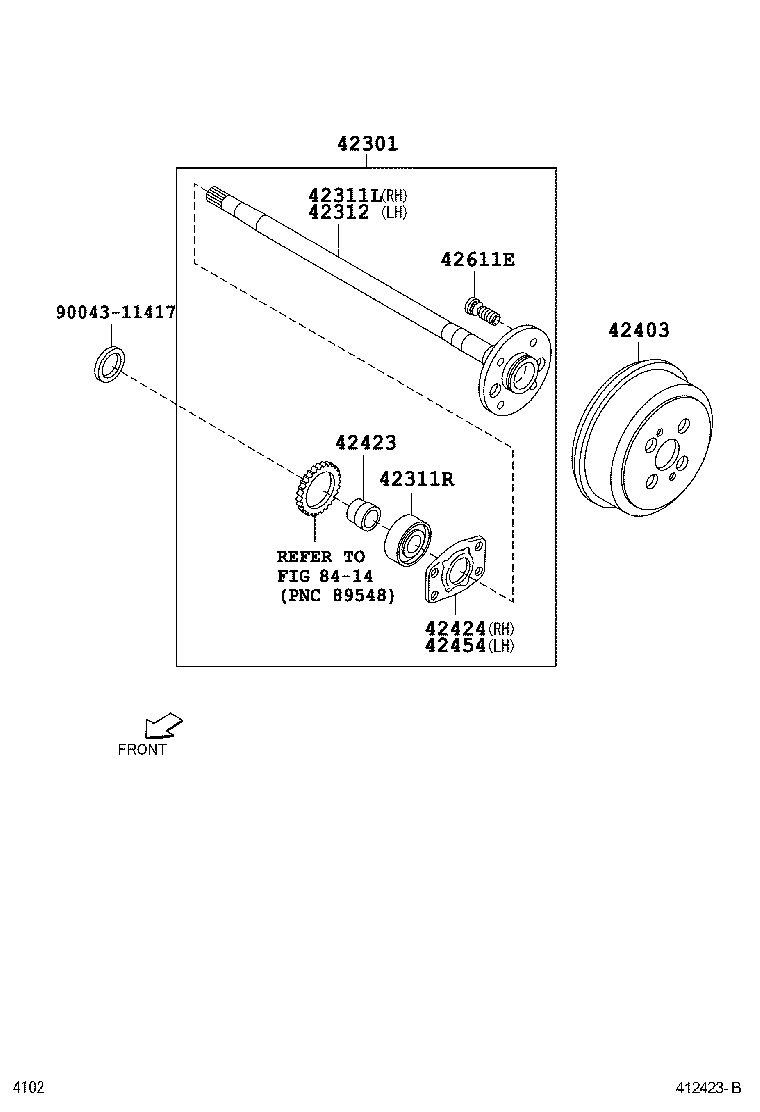

Toyota Bb QNC25 REAR AXLE SHAFT & HUB

Part #	Description	Period	Qty
42301 - SHAFT SUB-ASSY, REAR AXLE
42302-B1020	QNC25 左側	01/2006 - 09/2008	1
42301-B1020	QNC25 右側	01/2006 - 09/2008	1
42311L - SHAFT, REAR AXLE, RH
42311-B1020	QNC25	01/2006 - 09/2008	1
42311R - BEARING (FOR REAR AXLE SHAFT INNER)
90043-63248	QNC25	01/2006 - 09/2008	2
42312 - SHAFT, REAR AXLE, LH
42312-B1020	QNC25	01/2006 - 09/2008	1
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-97502	QNC25	01/2006 - 09/2008	2
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-97502	QNC25	01/2006 - 09/2008	2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-97501	QNC25	01/2006 - 09/2008	1
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42424-97501	QNC25	01/2006 - 09/2008	1
42611E - BOLT, HUB (FOR REAR AXLE)
90049-12055	QNC25	01/2006 - 09/2008	8
Common parts
90043-11417
Linked diagrams
8414

QNC25-BHSGK (2006)
