QNC25-BHSGK (2006)
Toyota Bb
(0601- )

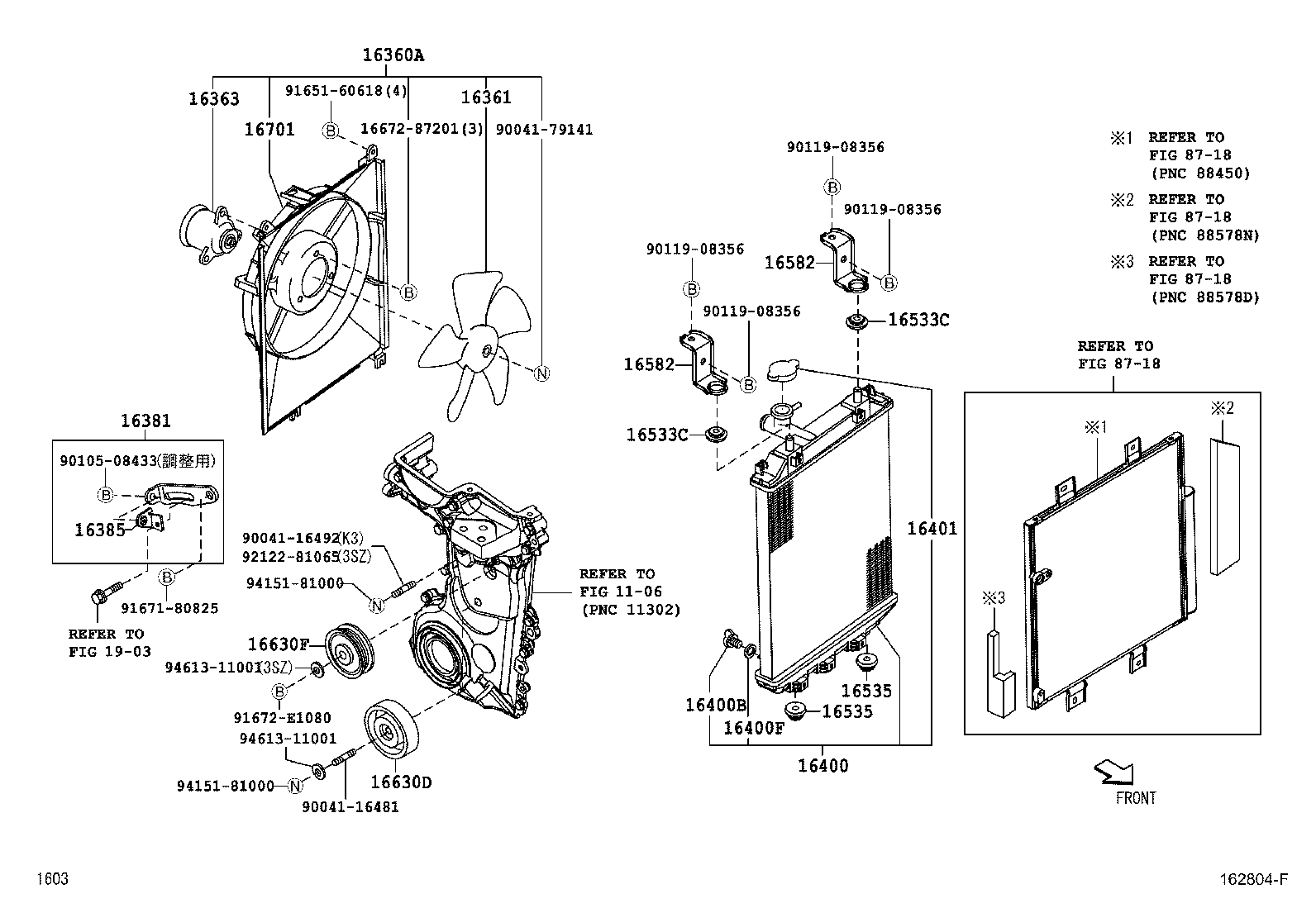

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-B1030 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16361 - FAN | ||||
| 16690-97202 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16680-97507 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16380-B1030 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-B1030 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-B1080 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-87101 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-97201 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-97202 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
K3VE,3SZVE..QNC2# |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
K3VE,3SZVE..QNC2# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
K3VE,3SZVE..QNC2# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
K3VE,3SZVE..QNC2# |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-B1010 |
K3VE,3SZVE..QNC2# |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-B1010 |
K3VE,3SZVE..QNC2# |
2 | ||
| 16630D - PULLEY ASSY, IDLER | ||||
| 16603-97401 |
K3VE..QNC20,25 外径=88 幅=20.8 |
1 | ||
| 16630F - PULLEY ASSY, IDLER, NO.2 | ||||
| 16630-97402 |
K3VE..QNC20,25 外径=75 幅=23 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-B1010 |
K3VE,3SZVE..QNC2# |
1 | ||
| Common parts | ||||
| 16672-87201 | ||||
| 90041-16481 | ||||
| 90041-16492 | ||||
| 90041-79141 | ||||
| 90105-08433 | ||||
| 90119-08356 | ||||
| 91651-60618 | ||||
| 91671-80825 | ||||
| 91672-E1080 | ||||
| 92122-81065 | ||||
| 94151-81000 | ||||
| 94613-11001 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1903 | ||||
| 8718 | ||||
(0601- )

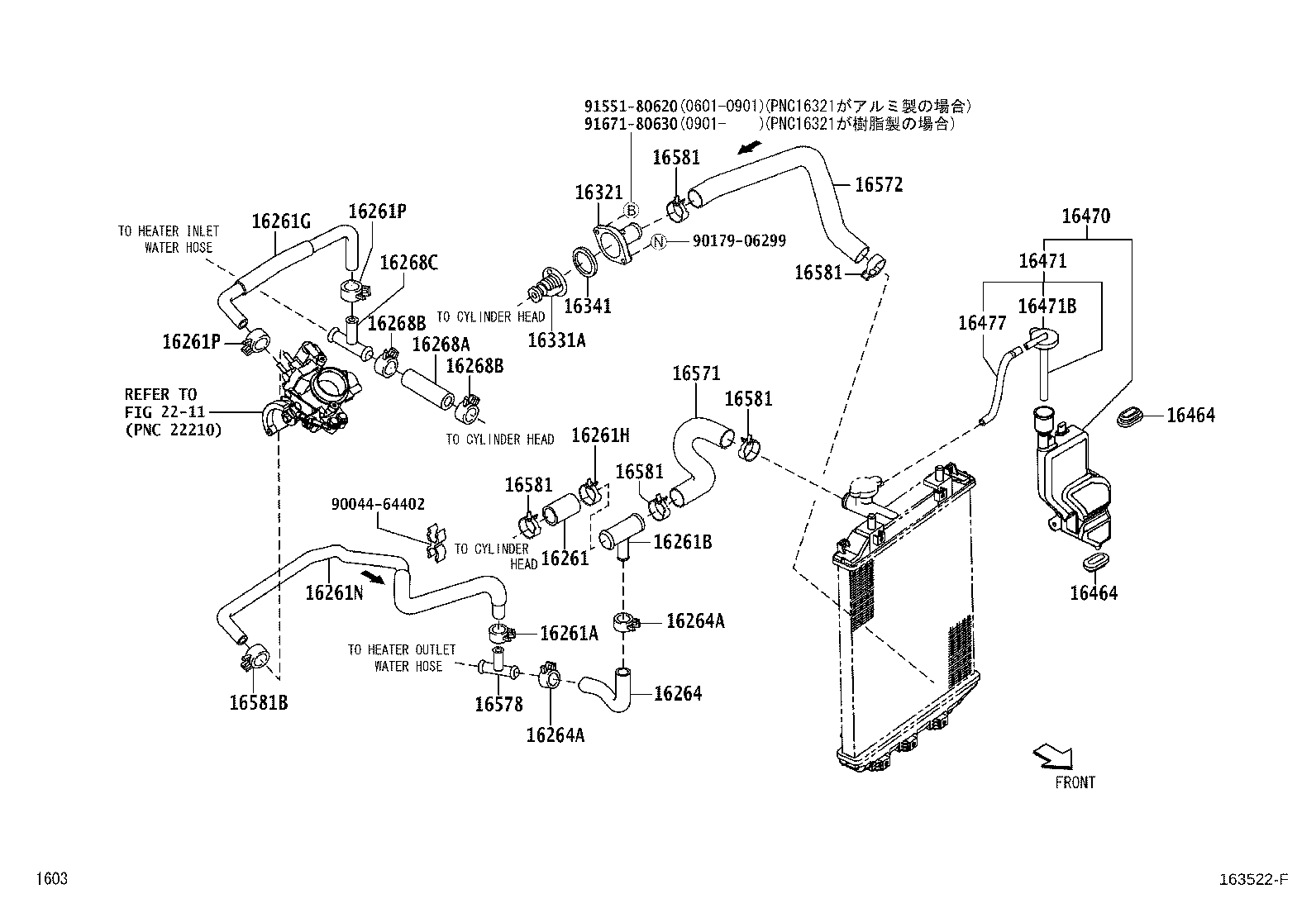

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-B1010 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90044-67301 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90044-13100 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-97401 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90044-66014 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-B1050 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90044-67301 |
K3VE,3SZVE..QNC2# 内径=12.9 幅=10 |
2 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90044-67301 |
K3VE,3SZVE..QNC2# 内径=12.9 幅=10 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-B1010 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90044-67207 |
K3VE,3SZVE..QNC2# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90044-67207 |
K3VE,3SZVE..QNC2# |
2 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16337-97401 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90044-67223 |
K3VE,3SZVE..QNC2# |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 90044-67223 |
K3VE,3SZVE..QNC2# |
2 | ||
| 16268C - UNION, WATER BY-PASS PIPE | ||||
| 90044-13070 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-97401 |
K3VE,3SZVE..QNC2# ｱﾙﾐ |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90048-33088 |
K3VE,3SZVE..QNC2# 外径=52 長さ=72 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16464 - BUSH, TANK LOWER | ||||
| 16464-97201 |
K3VE,3SZVE..QNC2# |
2 | ||
| 16464 - BUSH, TANK LOWER | ||||
| 16464-97201 |
K3VE,3SZVE..QNC2# |
2 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-B1020 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-B1020 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16471-87402 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16477 - PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-B1020 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-B1020 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-B1020 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 90044-13070 |
K3VE,3SZVE..QNC2# |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 90044-66014 |
K3VE,3SZVE..QNC2# |
5 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 90044-66014 |
K3VE,3SZVE..QNC2# |
5 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 90044-66014 |
K3VE,3SZVE..QNC2# |
5 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 90044-66014 |
K3VE,3SZVE..QNC2# |
5 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 90044-66014 |
K3VE,3SZVE..QNC2# |
5 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 90044-67301 |
K3VE,3SZVE..QNC2# |
1 | ||
| Common parts | ||||
| 90044-64402 | ||||
| 90179-06299 | ||||
| 91551-80620 | ||||
| 91671-80630 | ||||
| Linked diagrams | ||||
| 2211 | ||||
