QNC21-BHSGK (2006)

Toyota Bb

Production Jan 2006 - Sep 2008
Engine 3SZVE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )

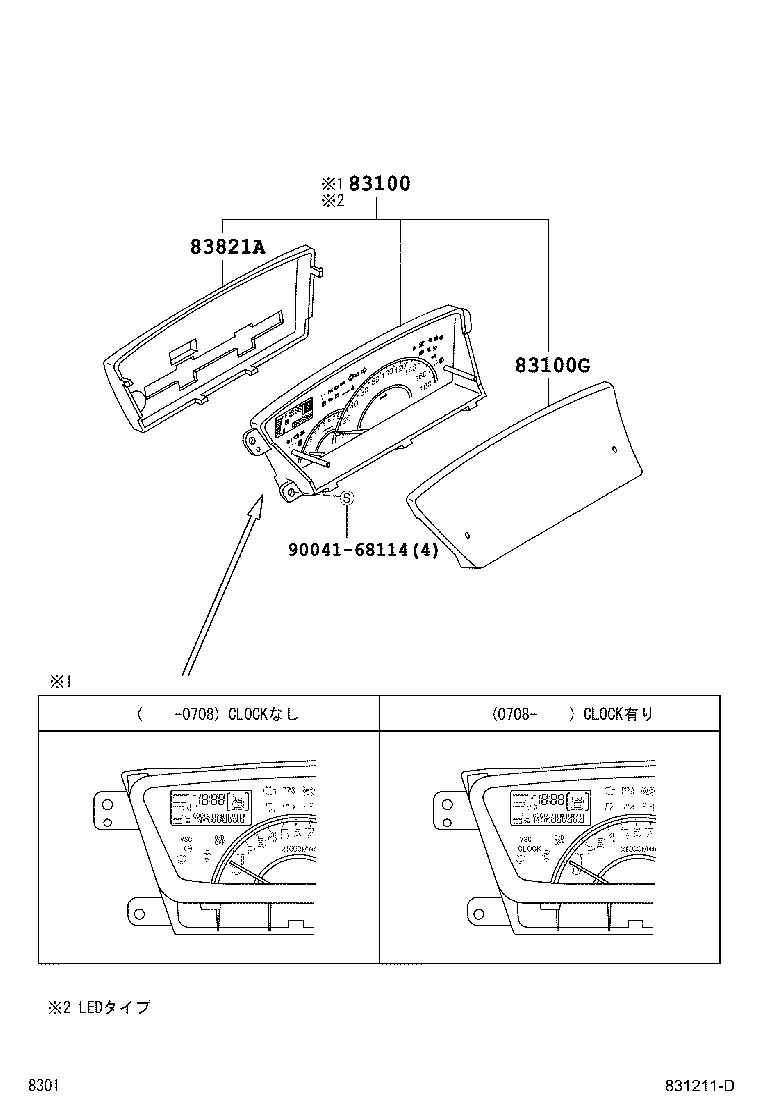

Click highlighted areas on diagram

diagram 83100 83100G 83821A 9004168114
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-B1150

QNC21

YAZAKI,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P)),LEDﾀｲﾌﾟ

 1
83800-B1140

QNC21

YAZAKI,LEDﾀｲﾌﾟ

 1
83800-B1150

QNC21

YAZAKI,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X VERSION *(A)),LEDﾀｲﾌﾟ

 1
83800-B1141

QNC21

YAZAKI,LEDﾀｲﾌﾟ

 1
83800-B1152

QNC21

YAZAKI,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P)),LEDﾀｲﾌﾟ

 1
83800-B1151

QNC21

YAZAKI,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(Q VERSION *(P)),LEDﾀｲﾌﾟ

 1
83800-B1152

QNC21

YAZAKI,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X VERSION *(A)),LEDﾀｲﾌﾟ

 1
83800-B1151

QNC21

YAZAKI,ｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ(X VERSION *(A)),LEDﾀｲﾌﾟ

 1
83100G - GLASS, COMBINATION METER
83852-B1010

QNC2#

 1
83821A - COVER, COMBINATION METER, NO.1
83821-B1020

QNC2#

 1
Common parts
90041-68114
