QNC21-BHSGK (2006)

Toyota Bb

Production Jan 2006 - Sep 2008
Engine 3SZVE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

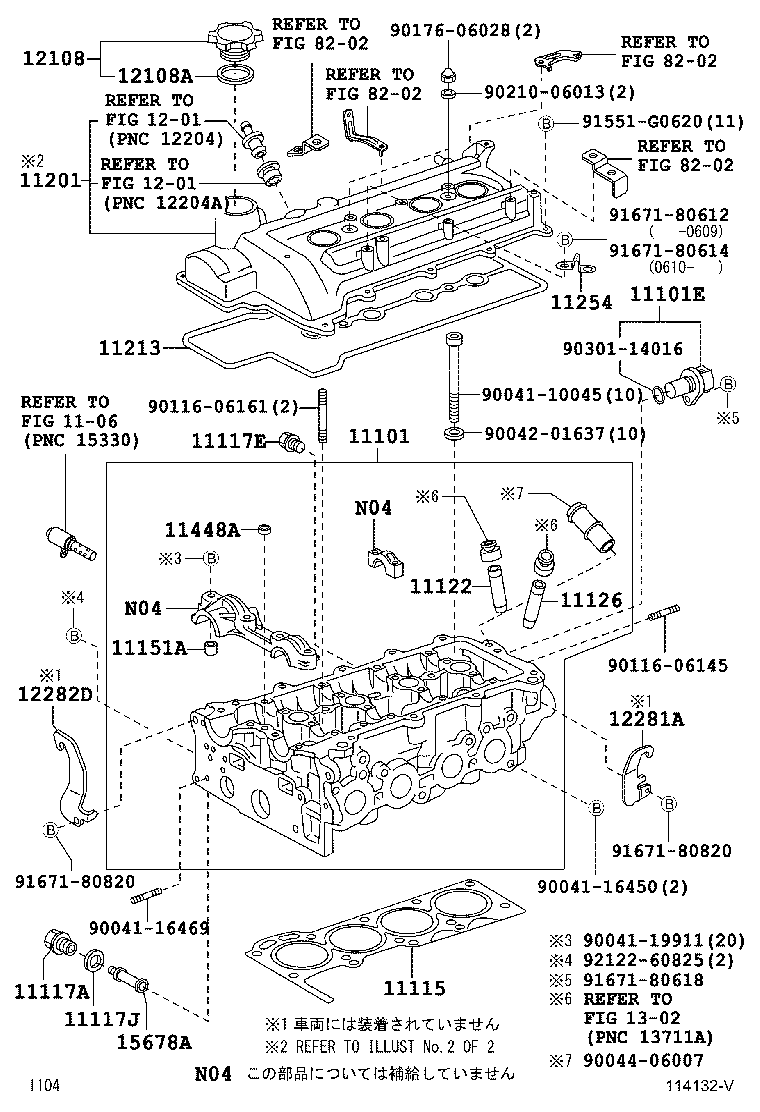

ILLUST NO. 1 OF 2(0601-0809)

Click highlighted areas on diagram

diagram 1106 11101 11101E 11115 11117A 11117E 11117J 11122 11126 11151A 11201 11213 11254 11448A 1201 1201 12108 12108A 12281A 12282D 1302 15678A 8202 8202 8202 8202 9004110045 9004116450 9004116469 9004119911 9004201637 9004406007 9011606145 9011606161 9017606028 9021006013 9030114016 91551G0620 9167180612 9167180614 9167180618 9167180820 9167180820 9212260825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-B9230

K3VE,3SZVE..QNC2#

 1
11101-B9250

K3VE,3SZVE..QNC2#

 1
11101-B9120

K3VE,3SZVE..QNC2#

 1
11101E - SENSOR, CAM POSITION
90919-05024

K3VE,3SZVE..QNC2#

 1
11115 - GASKET, CYLINDER HEAD
11115-B1030

K3VE,3SZVE..QNC2#

厚さ=0.41

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-14013

K3VE,3SZVE..QNC2#

外径=22 長さ=17 M14*1.25

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90043-41078

K3VE,3SZVE..QNC2#

 1
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-14009

K3VE,3SZVE..QNC2#

外径=19 内径=14.6 厚さ=1

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-21010

K3VE,3SZVE..QNC2#

STD

 8
11123-21010

K3VE,3SZVE..QNC2#

O/S 0.05

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-21010

K3VE,3SZVE..QNC2#

STD

 8
11123-21010

K3VE,3SZVE..QNC2#

O/S 0.05

 8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90042-53010

K3VE,3SZVE..QNC2#

長さ=5.5,外径=8

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-B1021

K3VE,3SZVE..QNC2#

 1
11201-B1020

K3VE,3SZVE..QNC2#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-97401

K3VE,3SZVE..QNC2#

 1
11254 - BRACKET, V-BANK COVER, NO.1
21893-B1010

K3VE,3SZVE..QNC2#

 1
11448A - ORIFICE, CYLINDER HEAD OIL
11448-87201

K3VE,3SZVE..QNC2#

外径=10,高さ=4

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-97401

K3VE,3SZVE..QNC2#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

K3VE,3SZVE..QNC2#

外径=50 内径=35.5 幅=7 ｺﾞﾑ

 1
12281A - HANGER, ENGINE, NO.1
12281-97401

K3VE,3SZVE..QNC2#

ﾌﾞﾗｯｸ

 1
12281-97402

K3VE,3SZVE..QNC2#

ｼﾙﾊﾞｰ

 1
12282D - HANGER, ENGINE, NO.2
12282-97404

K3VE,3SZVE..QNC2#

ｼﾙﾊﾞｰ

 1
12282-97403

K3VE,3SZVE..QNC2#

ﾌﾞﾗｯｸ

 1
15678A - FILTER, OIL CONTROL VALVE
15678-21010

K3VE,3SZVE..QNC2#

 1
Common parts
90041-10045
90041-16450
90041-16469
90041-19911
90042-01637
90044-06007
90116-06145
90116-06161
90176-06028
90210-06013
90301-14016
91551-G0620
91671-80612
91671-80614
91671-80618
91671-80820
92122-60825
Linked diagrams
1106
1201
1302
8202

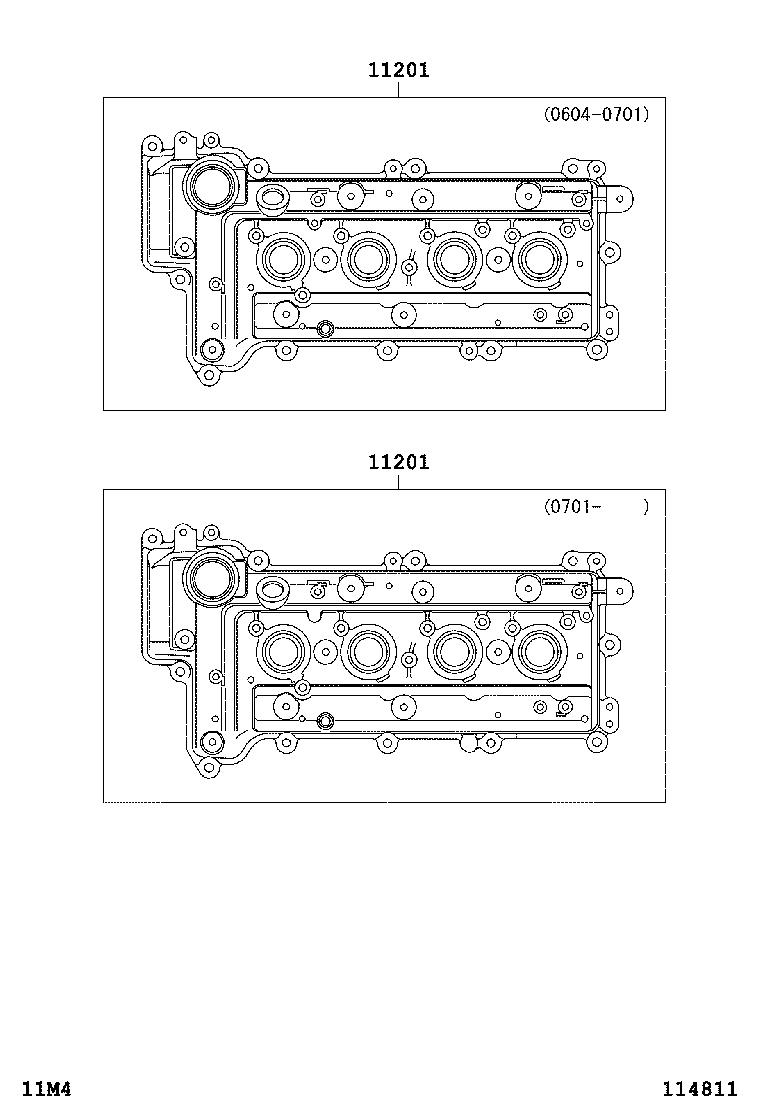

ILLUST NO. 2 OF 2(0601-0809)

Click highlighted areas on diagram

diagram 11201 11201
Part # Description Qty Price
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-B1021

K3VE,3SZVE..QNC2#

 1
11201-B1020

K3VE,3SZVE..QNC2#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-B1021

K3VE,3SZVE..QNC2#

 1
11201-B1020

K3VE,3SZVE..QNC2#

 1
