QNC20-BHSXK (2006)
Toyota Bb
Production
Jan 2006
-
Sep 2008
Engine
K3VE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )

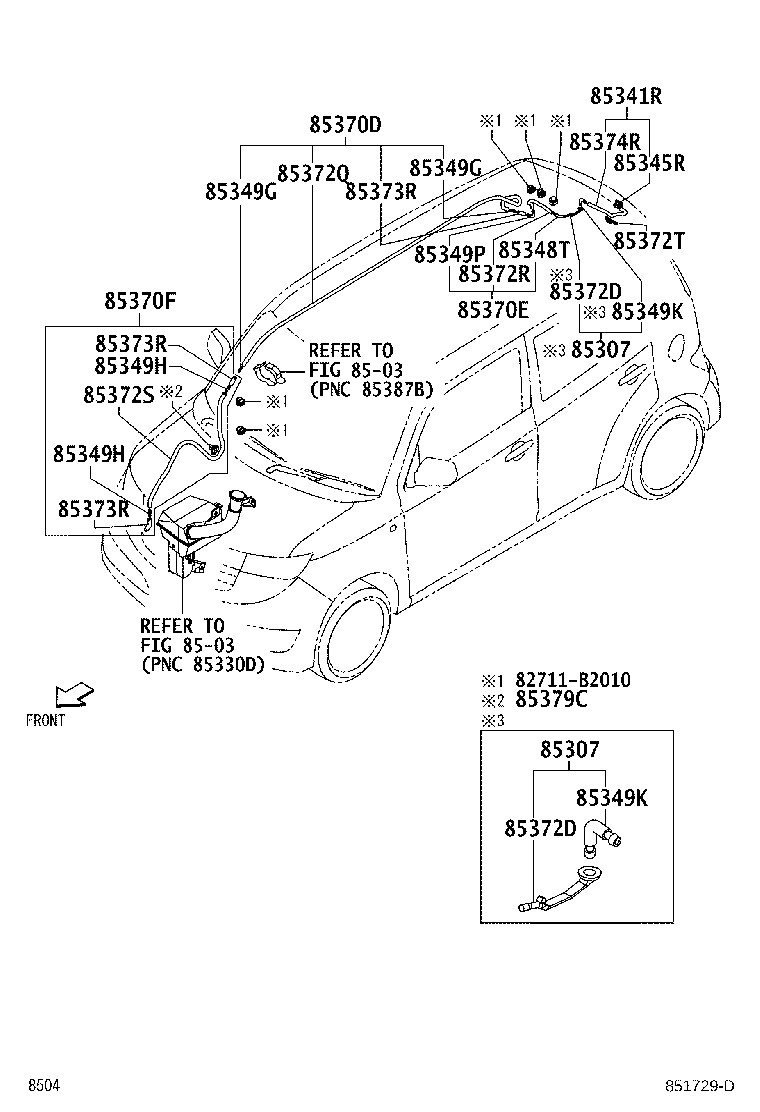

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85307 - GROMMET SUB-ASSY, WASHER | ||||
| 85307-97201 |
QNC2# |
1 | ||
| 85307 - GROMMET SUB-ASSY, WASHER | ||||
| 85307-97201 |
QNC2# |
1 | ||
| 85341R - NOZZLE ASSY, WASHER | ||||
| 85390-B1020 |
QNC2# |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-B1010 |
QNC2# |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-87602 |
QNC2# |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-87201 |
QNC2# |
2 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-87201 |
QNC2# |
2 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-87201 |
QNC2# |
2 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-87201 |
QNC2# |
2 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85349-87602 |
QNC2# |
1 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85349-87602 |
QNC2# |
1 | ||
| 85349P - JOINT, REAR WASHER ELBOW, NO.3 | ||||
| 85355-97202 |
QNC2# |
1 | ||
| 85370D - HOSE ASSY, REAR WASHER, NO.1 | ||||
| 85370-B1110 |
QNC2# |
1 | ||
| 85370E - HOSE ASSY, REAR WASHER, NO.2 | ||||
| 85370-B1120 |
QNC2# |
1 | ||
| 85370F - HOSE ASSY, REAR WASHER, NO.3 | ||||
| 85370-B1130 |
QNC2# |
1 | ||
| 85372D - GROMMET, REAR WASHER HOSE | ||||
| 85372-20040 |
QNC2# |
1 | ||
| 85372D - GROMMET, REAR WASHER HOSE | ||||
| 85372-20040 |
QNC2# |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 85374-97203 |
QNC2# 長さ=3000 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 85376-87202 |
QNC2# 長さ=1000 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 85376-87201 |
QNC2# 長さ=2000 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 90044-80370 |
QNC2# |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 85343-97401 |
QNC2# 長さ=1000 |
3 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 85343-97401 |
QNC2# 長さ=1000 |
3 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 85343-97401 |
QNC2# 長さ=1000 |
3 | ||
| 85374R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 85370-B1150 |
QNC2# |
1 | ||
| 85379C - GROMMET, REAR WASHER HOSE NO.1 | ||||
| 85373-B2020 |
QNC2# ﾗｲﾄ |
1 | ||
| Common parts | ||||
| 82711-B2010 | ||||
| Linked diagrams | ||||
| 8503 | ||||
