QNC20-BHSXK (2006)

Toyota Bb

Production Jan 2006 - Sep 2008
Engine K3VE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )

Click highlighted areas on diagram

diagram 1107 44510 44510D 44546A 44546A 44546A 44591 44592 8202 9155180814 9155180814
Part # Description Qty Price

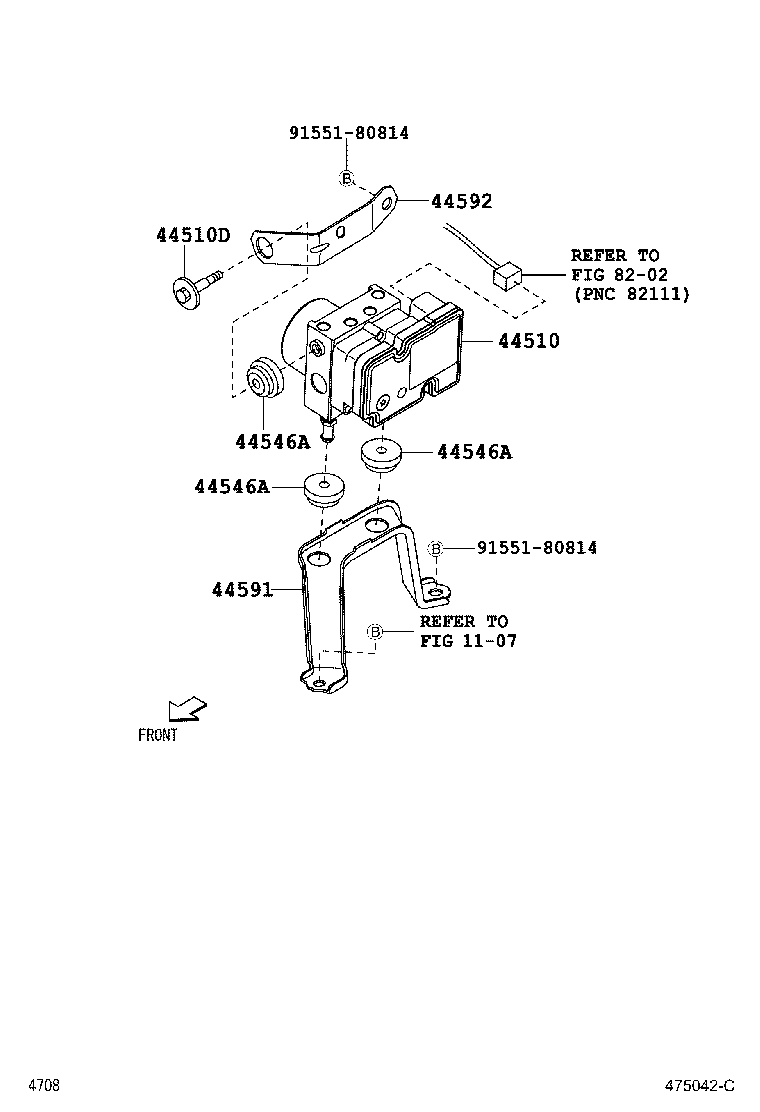

44510 - ACTUATOR ASSY, BRAKE
44050-B1030

QNC20,21

 1
44510D - BOLT(FOR BRAKE ACTUATOR)
44548-97201

QNC2#

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-87101

QNC2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-87101

QNC2#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-87101

QNC2#

 3
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-B1010

QNC2#

 1
44592 - BRACKET, BRAKE ACTUATOR, NO.2
44591-B1020

QNC2#

 1
Common parts
91551-80814
Linked diagrams
1107
8202

(0601- )

Click highlighted areas on diagram

W/ABS,W/VSC

diagram 47311 47311 47312 47312 47313 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47314 47318F 47319F 47322 47322 47324 47324 47325 47326 47371A 47371B 47371C 47371D 47371E 47372 47373B 47374B 47375 9155180640 9155180640 9155180816 9155180816
Part # Description Qty Price

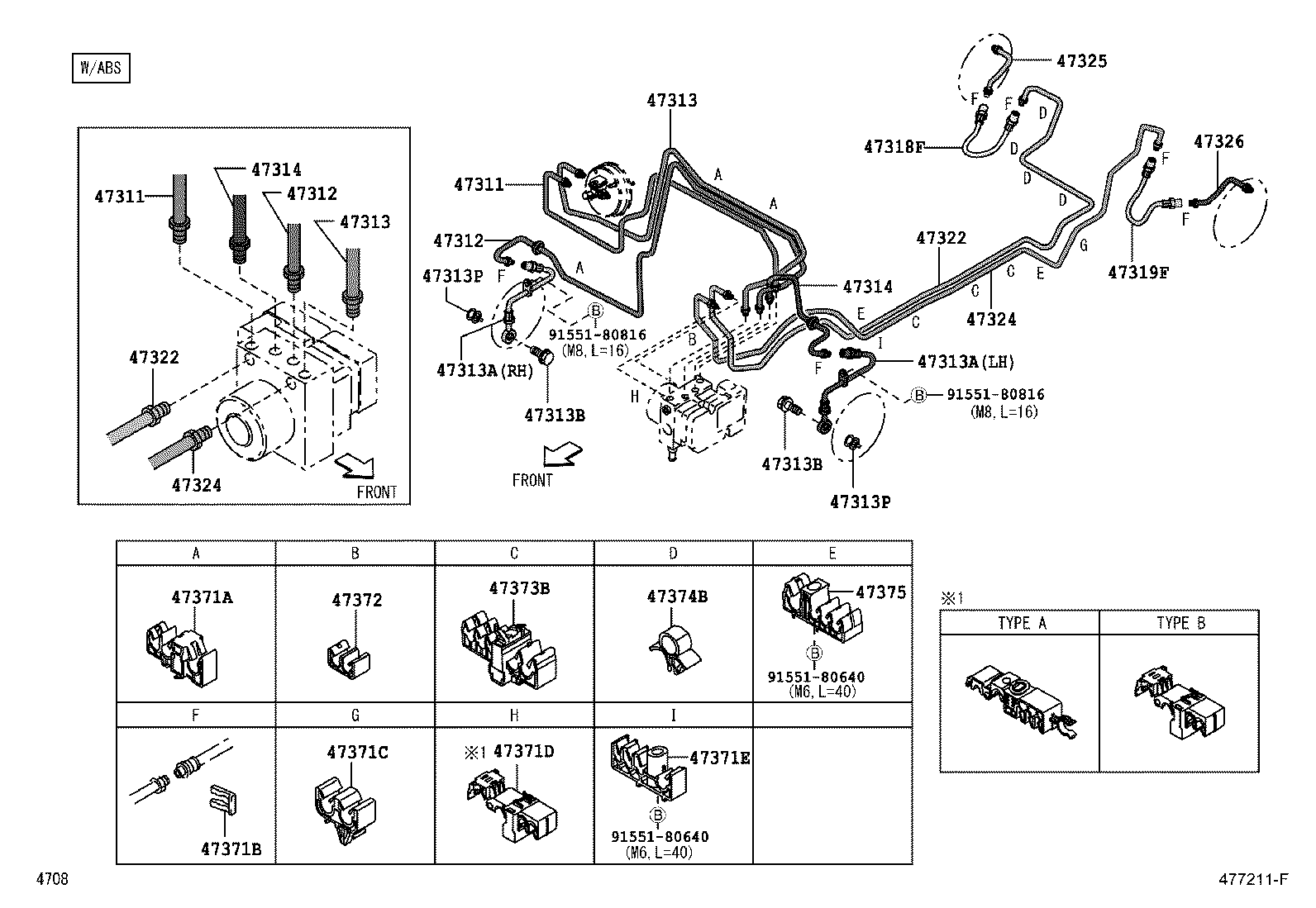

47311 - TUBE, FRONT BRAKE, NO.1
47311-B1060

QNC2#

ﾎﾟﾘｴﾁﾚﾝﾁｭｰﾌﾞﾅｼ

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-B1060

QNC2#

ﾎﾟﾘｴﾁﾚﾝﾁｭｰﾌﾞﾅｼ

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B1010

QNC2#

ﾎﾟﾘｴﾁﾚﾝﾁｭｰﾌﾞﾅｼ

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B1010

QNC2#

ﾎﾟﾘｴﾁﾚﾝﾁｭｰﾌﾞﾅｼ

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B1060

QNC2#

ﾎﾟﾘｴﾁﾚﾝﾁｭｰﾌﾞﾅｼ

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B1060

QNC2#

ﾎﾟﾘｴﾁﾚﾝﾁｭｰﾌﾞﾅｼ

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22198

QNC2#

右側

 1
90049-22199

QNC2#

左側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22198

QNC2#

右側

 1
90049-22199

QNC2#

左側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

QNC2#

 2
90044-01079

QNC2#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

QNC2#

 2
90044-01079

QNC2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

QNC2#

 2
47389-50020

QNC2#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

QNC2#

 2
47389-50020

QNC2#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-B1010

QNC2#

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-B1010

QNC2#

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90049-22193

QNC20,21

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90049-22193

QNC20,21

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-B1050

QNC20,21

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-B1050

QNC20,21

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-B1050

QNC20,21

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-B1050

QNC20,21

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-B1030

QNC20,21

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-B1030

QNC20,21

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90044-64781

QNC2#

 3
47371B - CLAMP, BRAKE TUBE, NO.6
90044-65441

QNC2#

 4
47371C - CLAMP, BRAKE TUBE, NO.7
90044-64780

QNC2#

 1
47371D - CLAMP, BRAKE TUBE, NO.8
90044-64754

QNC2#

ﾀｲﾌﾟ A

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90044-64787

QNC2#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90044-64731

QNC2#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90044-64657

QNC2#

 3
47374B - CLAMP, BRAKE TUBE, NO.4
90044-64659

QNC2#

 4
47375 - CLAMP, BRAKE TUBE, NO.5
90044-64766

QNC2#

 2
Common parts
91551-80640
91551-80816
