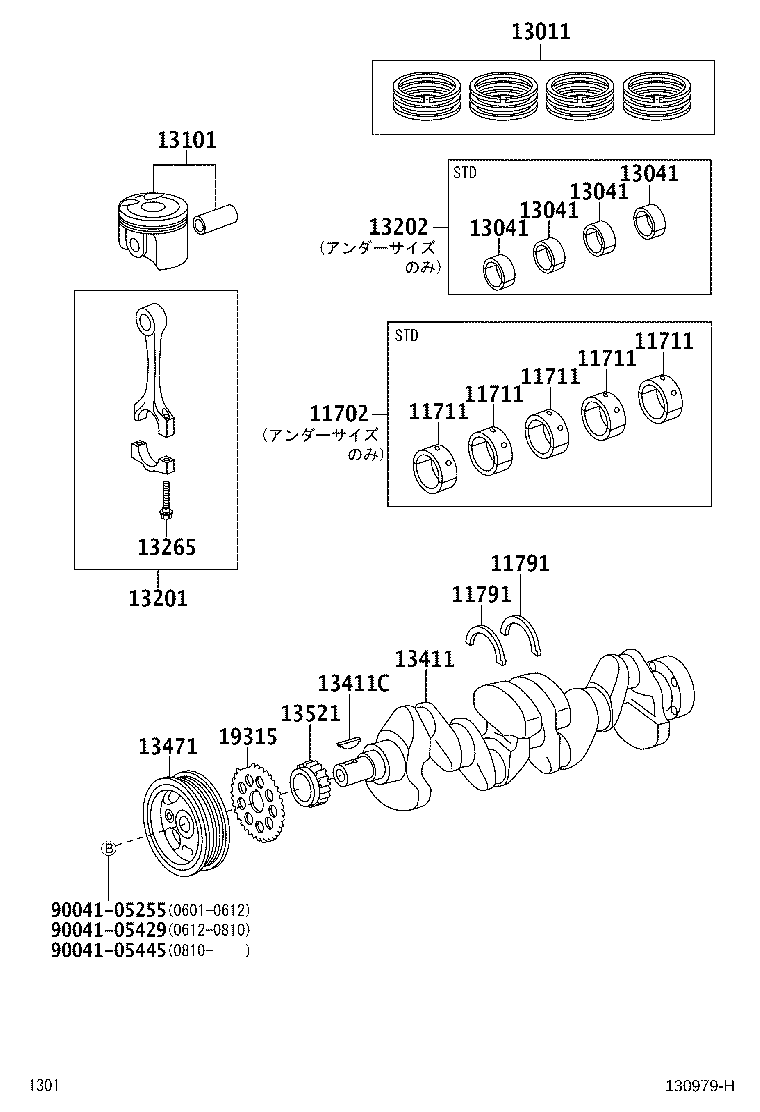

Toyota Bb QNC20 CRANKSHAFT & PISTON

Part #	Description	Period	Qty
11702 - BEARING SET, CRANKSHAFT
11704-B1021	K3VE,3SZVE..QNC2# U/S 0.25	05/2006 - 09/2008	1
11711 - BEARING, CRANKSHAFT
11701-B102003	K3VE,3SZVE..QNC2# MARK3,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102002	K3VE,3SZVE..QNC2# MARK2,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102105	K3VE,3SZVE..QNC2# MARK5,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102103	K3VE,3SZVE..QNC2# MARK3,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102104	K3VE,3SZVE..QNC2# MARK4,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102005	K3VE,3SZVE..QNC2# MARK5,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102102	K3VE,3SZVE..QNC2# MARK2,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102004	K3VE,3SZVE..QNC2# MARK4,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11711 - BEARING, CRANKSHAFT
11701-B102003	K3VE,3SZVE..QNC2# MARK3,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102002	K3VE,3SZVE..QNC2# MARK2,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102105	K3VE,3SZVE..QNC2# MARK5,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102103	K3VE,3SZVE..QNC2# MARK3,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102104	K3VE,3SZVE..QNC2# MARK4,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102005	K3VE,3SZVE..QNC2# MARK5,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102102	K3VE,3SZVE..QNC2# MARK2,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102004	K3VE,3SZVE..QNC2# MARK4,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11711 - BEARING, CRANKSHAFT
11701-B102003	K3VE,3SZVE..QNC2# MARK3,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102002	K3VE,3SZVE..QNC2# MARK2,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102105	K3VE,3SZVE..QNC2# MARK5,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102103	K3VE,3SZVE..QNC2# MARK3,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102104	K3VE,3SZVE..QNC2# MARK4,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102005	K3VE,3SZVE..QNC2# MARK5,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102102	K3VE,3SZVE..QNC2# MARK2,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102004	K3VE,3SZVE..QNC2# MARK4,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11711 - BEARING, CRANKSHAFT
11701-B102003	K3VE,3SZVE..QNC2# MARK3,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102002	K3VE,3SZVE..QNC2# MARK2,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102105	K3VE,3SZVE..QNC2# MARK5,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102103	K3VE,3SZVE..QNC2# MARK3,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102104	K3VE,3SZVE..QNC2# MARK4,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102005	K3VE,3SZVE..QNC2# MARK5,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102102	K3VE,3SZVE..QNC2# MARK2,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102004	K3VE,3SZVE..QNC2# MARK4,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11711 - BEARING, CRANKSHAFT
11701-B102003	K3VE,3SZVE..QNC2# MARK3,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102002	K3VE,3SZVE..QNC2# MARK2,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102105	K3VE,3SZVE..QNC2# MARK5,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102103	K3VE,3SZVE..QNC2# MARK3,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102104	K3VE,3SZVE..QNC2# MARK4,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102005	K3VE,3SZVE..QNC2# MARK5,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11701-B102102	K3VE,3SZVE..QNC2# MARK2,ｽﾀﾝﾀﾞｰﾄﾞ	05/2006 - 09/2008	5
11701-B102004	K3VE,3SZVE..QNC2# MARK4,ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 05/2006	5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-B1020	K3VE,3SZVE..QNC2# STD	01/2006 - 09/2008	2
11792-B1020	K3VE,3SZVE..QNC2# O/S 0.125	01/2006 - 09/2008	2
11793-B1020	K3VE,3SZVE..QNC2# O/S 0.25	01/2006 - 09/2008	2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-B1020	K3VE,3SZVE..QNC2# STD	01/2006 - 09/2008	2
11792-B1020	K3VE,3SZVE..QNC2# O/S 0.125	01/2006 - 09/2008	2
11793-B1020	K3VE,3SZVE..QNC2# O/S 0.25	01/2006 - 09/2008	2
13011 - RING SET, PISTON
13011-97404	K3VE..QNC20,25 STD	01/2006 - 09/2008	1
13013-B1010	K3VE..QNC20,25 O/S 0.50	01/2006 - 09/2008	1
13041 - BEARING, CONNECTING ROD
13041-97401	K3VE..QNC20,25 ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 09/2008	4
13041 - BEARING, CONNECTING ROD
13041-97401	K3VE..QNC20,25 ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 09/2008	4
13041 - BEARING, CONNECTING ROD
13041-97401	K3VE..QNC20,25 ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 09/2008	4
13041 - BEARING, CONNECTING ROD
13041-97401	K3VE..QNC20,25 ｽﾀﾝﾀﾞｰﾄﾞ	01/2006 - 09/2008	4
13101 - PISTON SUB-ASSY, W/PIN
13103-B1050	K3VE..QNC20,25 O/S 0.50,櫻興業	01/2006 - 09/2008	4
13101-B1030	K3VE..QNC20,25 STD,櫻興業	01/2006 - 09/2008	4
13201 - ROD SUB-ASSY, CONNECTING
13201-97401	K3VE..QNC20,25	01/2006 - 09/2008	4
13202 - BEARING SET, CONNECTING ROD
13204-B1010	K3VE..QNC20,25 U/S 0.25	01/2006 - 09/2008	1
13265 - BOLT, CONNECTING ROD
13265-97401	K3VE,3SZVE..QNC2#	01/2006 - 09/2008	8
13411 - CRANKSHAFT
13411-97401	K3VE..QNC20,25	01/2006 - 09/2008	1
13411C - PIN, STRAIGHT(FOR CRANKSHAFT)
90042-80034	K3VE,3SZVE..QNC2# 長さ=17 幅=4	01/2006 - 09/2008	1
13471 - PULLEY, CRANKSHAFT
13470-97401	K3VE..QNC20,25 内径=24 外径=143 幅=38	01/2006 - 09/2008	1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-97401	K3VE..QNC20,25	01/2006 - 09/2008	1
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-B0010	K3VE,3SZVE..QNC2#	01/2006 - 09/2008	1
Common parts
90041-05255
90041-05429
90041-05445

QNC20-BHSXK (2006)

(0601- )

Part Price Details
