QNC20-BHSXK (2008)

Toyota Bb

Production Sep 2008 - Jul 2016
Engine K3VE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601-1607)

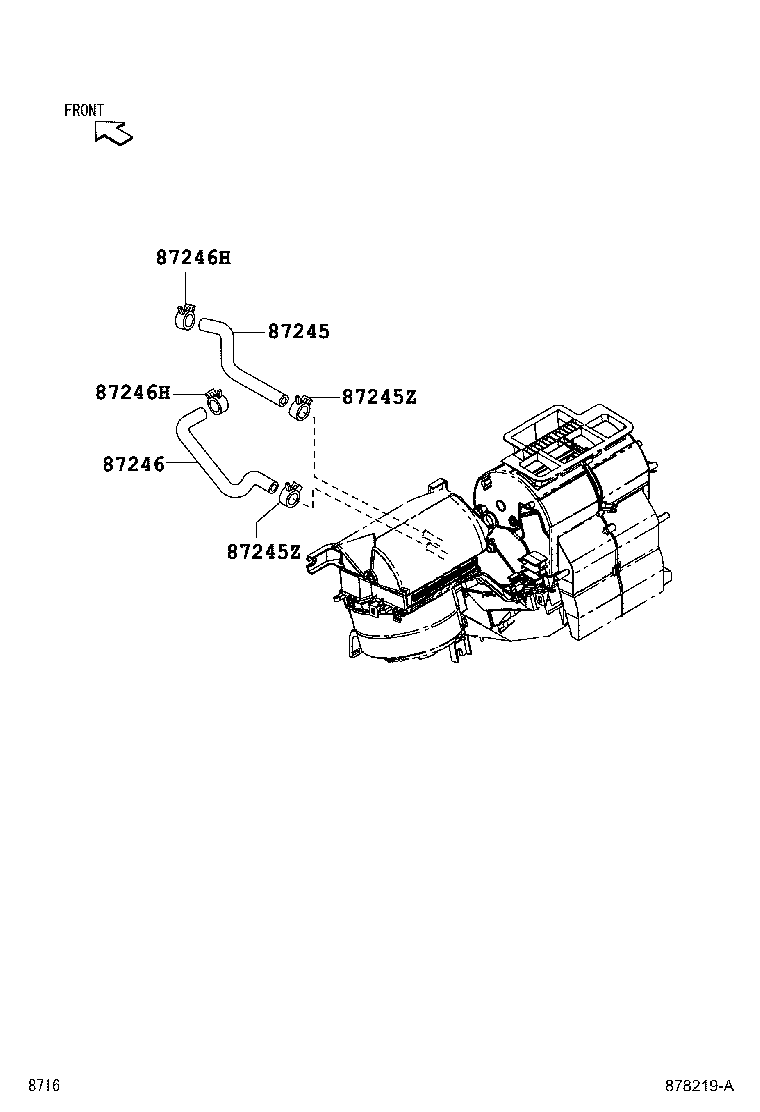

Click highlighted areas on diagram

diagram 87245 87245Z 87245Z 87246 87246H 87246H
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-B1020

QNC2#

 1
87245-B1020

QNC2#

 1
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
88718-97209

QNC2#

内径=18.6

 2
88718-97209

QNC2#

内径=18.6

 2
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
88718-97209

QNC2#

内径=18.6

 2
88718-97209

QNC2#

内径=18.6

 2
87246 - HOSE, HEATER WATER, OUTLET
87246-B1080

QNC2#

 1
87246-B1020

QNC2#

 1
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90044-67485

QNC2#

内径=22.1

 2
96136-42501

QNC2#

内径=22.6

 2
87246H - CLIP OR CLAMP(FOR HEATER WATER HOSE)
90044-67485

QNC2#

内径=22.1

 2
96136-42501

QNC2#

内径=22.6

 2
