NCP35-DHSNK (2000)
Toyota Bb/Open Deck
Production
Jan 2000
-
Dec 2005
Engine
1NZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

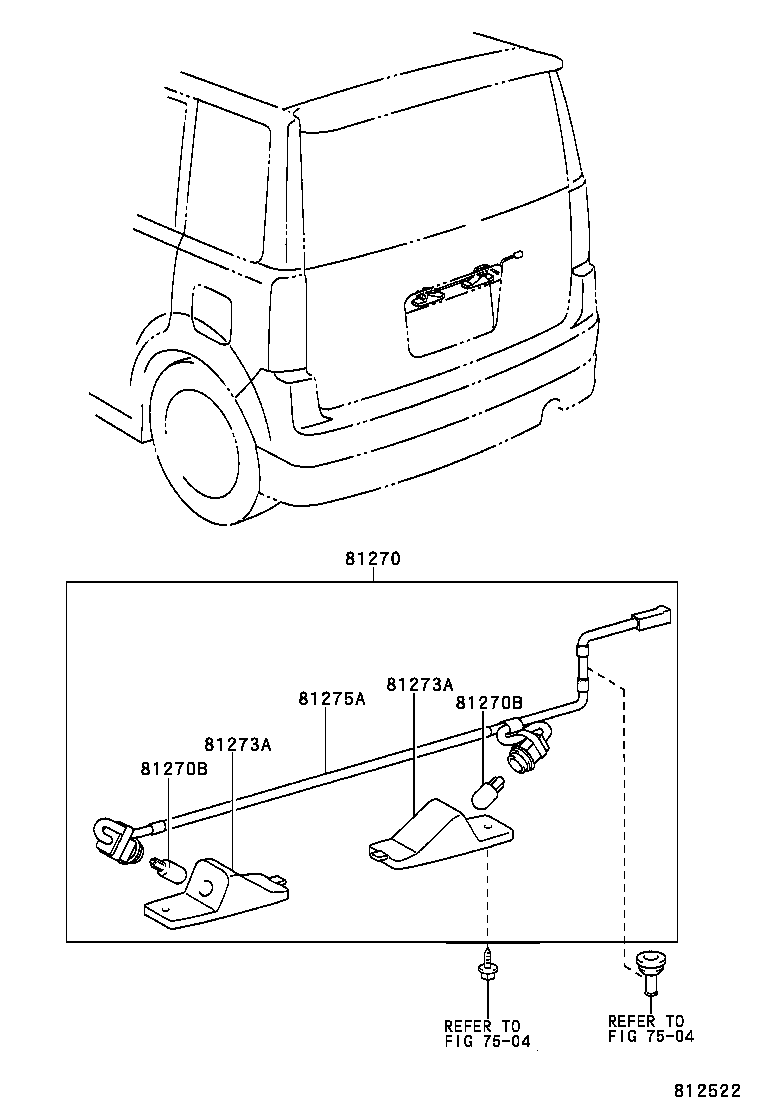

(0001-0304)NCP30,31,35
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-52010 |
NCP30,31,35 |
1 | ||
| 81270-52010 |
NCP30,31,35 |
1 | ||
| 81270-52100 |
NCP3# |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
NCP3# 12V 5W |
1 | ||
| 99132-12050 |
NCP3# 12V 5W |
1 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-52010 |
NCP30,31,35 |
1 | ||
| 81271-52010 |
NCP30,31,35 |
1 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 90075-60005 |
NCP3# |
1 | ||
| 90075-60005 |
NCP3# |
1 | ||

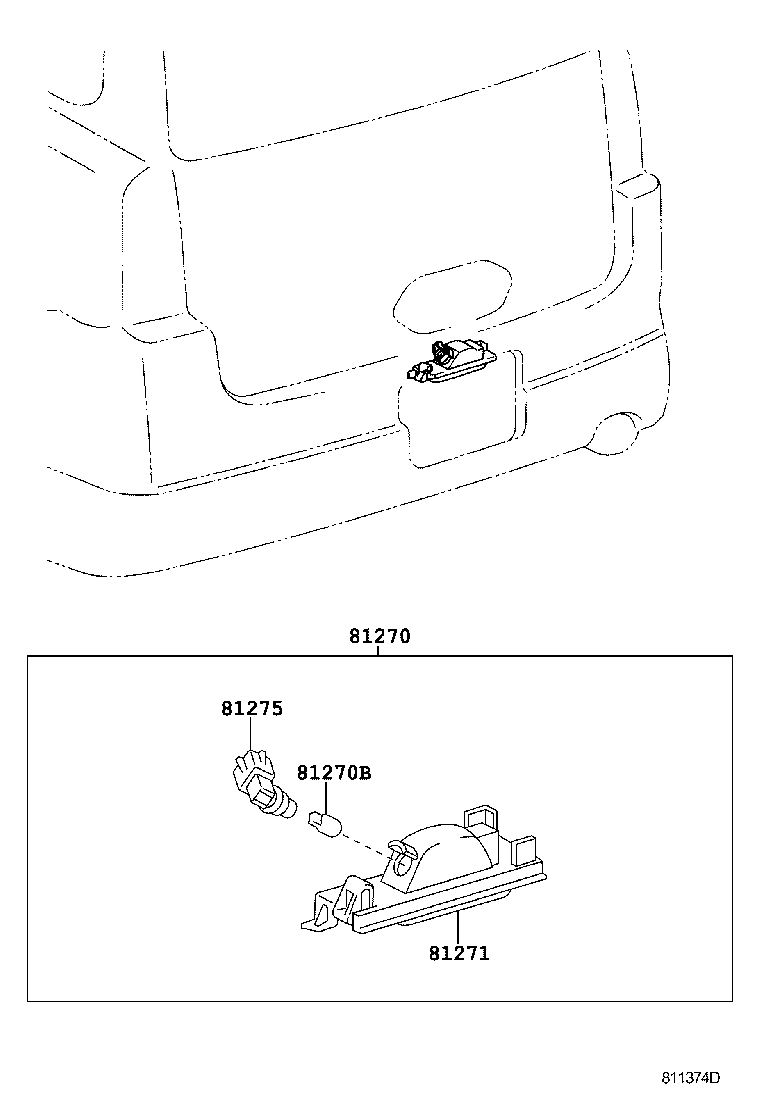

(0304-0512)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-52010 |
NCP30,31,35 |
1 | ||
| 81270-52010 |
NCP30,31,35 |
1 | ||
| 81270-52100 |
NCP3# |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
NCP3# 12V 5W |
1 | ||
| 99132-12050 |
NCP3# 12V 5W |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
NCP3# 12V 5W |
1 | ||
| 99132-12050 |
NCP3# 12V 5W |
1 | ||
| 81273A - BODY, LICENSE PLATE LAMP | ||||
| 81273-48010 |
NCP3# |
2 | ||
| 81273A - BODY, LICENSE PLATE LAMP | ||||
| 81273-48010 |
NCP3# |
2 | ||
| 81275A - CORD, LICENSE PLATE LAMP | ||||
| 81275-52100 |
NCP3# |
1 | ||
| Linked diagrams | ||||
| 7504 | ||||
