NCP35-DHSNK (2000)

Toyota Bb/Open Deck

Production Jan 2000 - Dec 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0001-0304)

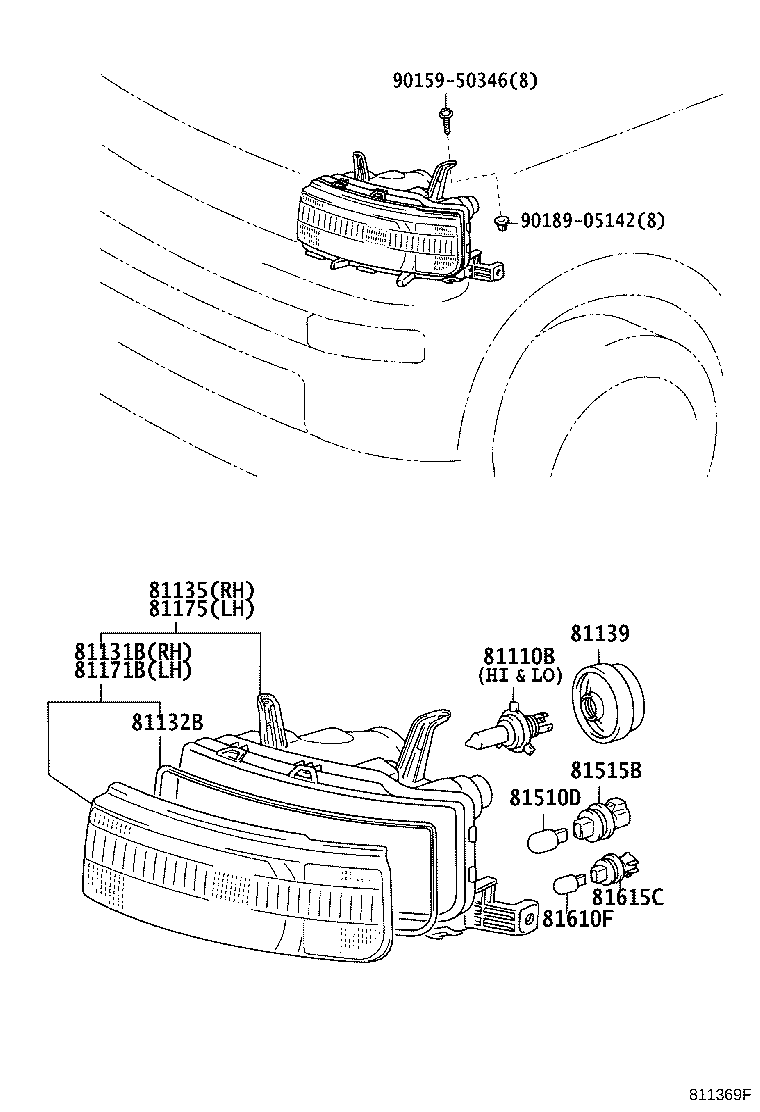

Click highlighted areas on diagram

diagram 81110B 81131B 81132B 81135 81139 81171B 81175 81510D 81515B 81610F 81615C 9015950346 9018905142
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22004

NCP3#

12V 60/55W,*HAL *WH

 2
90981-13058

NCP3#

12V 60/55W,ﾊﾛｹﾞﾝ

 2
90981-13046

NCP3#

12V65W(SAE),60W(ECE)

 2
81131B - HEAD LAMP LENS, RH
81131-52090

NCP3#

 1
81131-52090

NCP3#

 1
81132B - GASKET, HEADLAMP LENS
81132-52090

NCP3#

 2
81132-52090

NCP3#

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-52090

NCP3#

 1
81145-52500

NCP3#

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81130-52090

NCP3#

 1
81139 - COVER, HEADLAMP SOCKET
90075-65002

NCP3#

 2
90075-65002

NCP3#

 2
81171B - HEAD LAMP LENS, LH
81171-52090

NCP3#

 1
81171-52090

NCP3#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-52090

NCP3#

 1
81170-52090

NCP3#

 1
81185-52500

NCP3#

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

NCP3#

12V 21W,ｱﾝﾊﾞｰ

 2
90981-15011

NCP3#

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

NCP3#

 2
90075-60028

NCP3#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

NCP3#

12V 5W

 2
99132-12050

NCP3#

12V 5W

 2
81615C - SOCKET & WIRE, CLEARANCE LAMP
90075-60001

NCP3#

 2
90075-60001

NCP3#

 2
Common parts
90159-50346
90189-05142

(0304-0512)

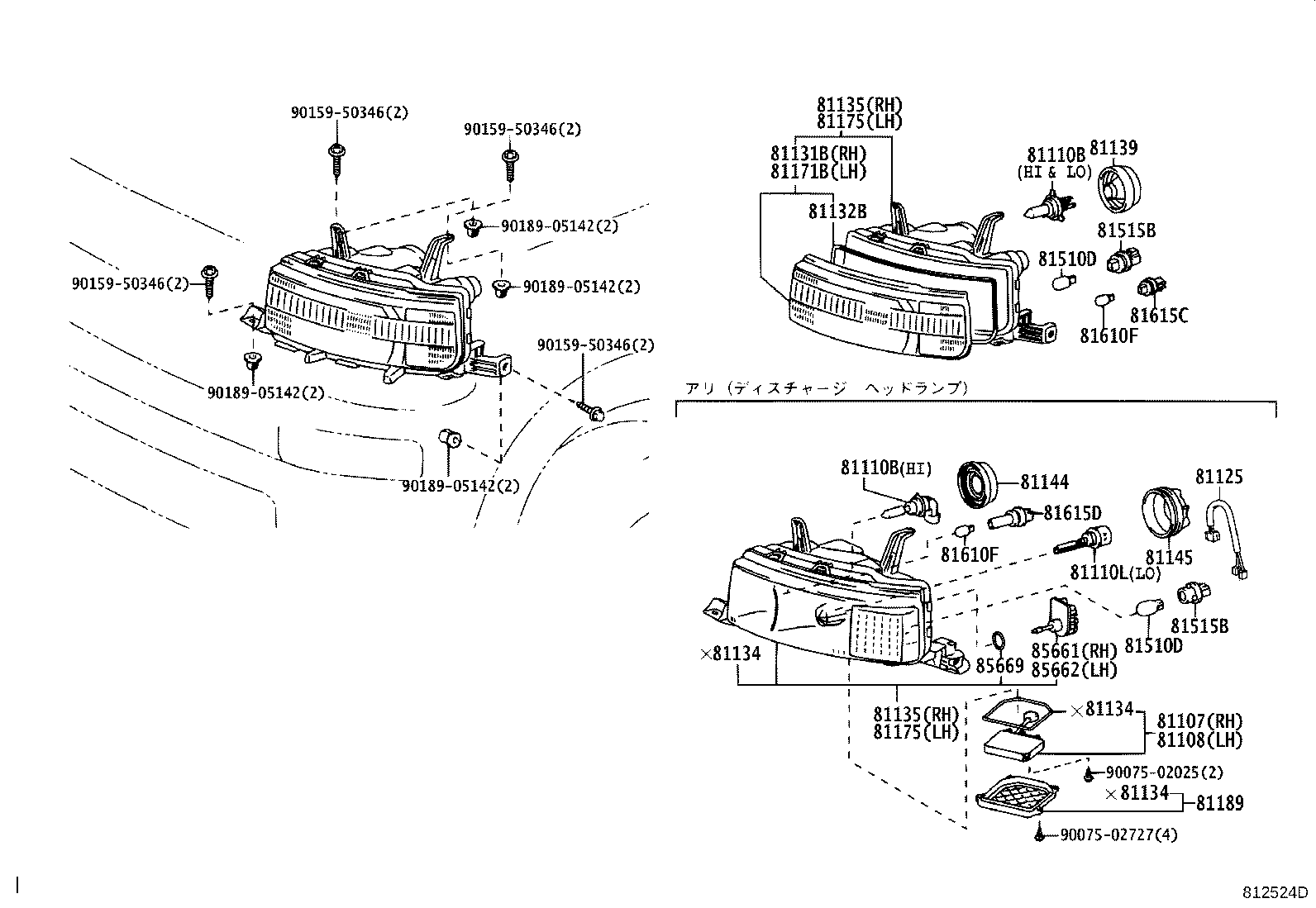

Click highlighted areas on diagram

diagram 81107 81108 81110B 81110B 81110L 81125 81131B 81132B 81134 81134 81134 81135 81135 81139 81144 81145 81171B 81175 81175 81189 81510D 81510D 81515B 81515B 81610F 81610F 81615C 81615D 85661 85662 85669 9007502025 9007502727 9015950346 9015950346 9015950346 9015950346 9018905142 9018905142 9018905142 9018905142
Part # Description Qty Price
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-44170

NCP3#

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-44170

NCP3#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22004

NCP3#

12V 60/55W,*HAL *WH

 2
90981-13058

NCP3#

12V 60/55W,ﾊﾛｹﾞﾝ

 2
90981-13046

NCP3#

12V65W(SAE),60W(ECE)

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22004

NCP3#

12V 60/55W,*HAL *WH

 2
90981-13058

NCP3#

12V 60/55W,ﾊﾛｹﾞﾝ

 2
90981-13046

NCP3#

12V65W(SAE),60W(ECE)

 2
81110L - BULB, DISCHARGE HEADLAMP
90981-20001

NCP3#

85V 35W

 2
81125 - CORD, HEADLAMP
81125-52500

NCP3#

 2
81131B - HEAD LAMP LENS, RH
81131-52090

NCP3#

 1
81131-52090

NCP3#

 1
81132B - GASKET, HEADLAMP LENS
81132-52090

NCP3#

 2
81132-52090

NCP3#

 2
81134 - GASKET, HEADLAMP
90075-68001

NCP3#

 6
81134 - GASKET, HEADLAMP
90075-68001

NCP3#

 6
81134 - GASKET, HEADLAMP
90075-68001

NCP3#

 6
81135 - UNIT ASSY, HEADLAMP, RH
81130-52090

NCP3#

 1
81145-52500

NCP3#

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81130-52090

NCP3#

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-52090

NCP3#

 1
81145-52500

NCP3#

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81130-52090

NCP3#

 1
81139 - COVER, HEADLAMP SOCKET
90075-65002

NCP3#

 2
90075-65002

NCP3#

 2
81144 - COVER, HEADLAMP, NO.1
90075-99054

NCP3#

 2
81145 - COVER, HEADLAMP, NO.2
90075-66007

NCP3#

 2
81171B - HEAD LAMP LENS, LH
81171-52090

NCP3#

 1
81171-52090

NCP3#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-52090

NCP3#

 1
81170-52090

NCP3#

 1
81185-52500

NCP3#

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-52090

NCP3#

 1
81170-52090

NCP3#

 1
81185-52500

NCP3#

ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)

 1
81189 - COVER, HEADLAMP
90075-67004

NCP3#

 2
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

NCP3#

12V 21W,ｱﾝﾊﾞｰ

 2
90981-15011

NCP3#

12V 21W,ｱﾝﾊﾞｰ

 2
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

NCP3#

12V 21W,ｱﾝﾊﾞｰ

 2
90981-15011

NCP3#

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

NCP3#

 2
90075-60028

NCP3#

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

NCP3#

 2
90075-60028

NCP3#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

NCP3#

12V 5W

 2
99132-12050

NCP3#

12V 5W

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

NCP3#

12V 5W

 2
99132-12050

NCP3#

12V 5W

 2
81615C - SOCKET & WIRE, CLEARANCE LAMP
90075-60001

NCP3#

 2
90075-60001

NCP3#

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

NCP3#

 2
90075-60046

NCP3#

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-22020

NCP3#

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-22020

NCP3#

 1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

NCP3#

 2
Common parts
90075-02025
90075-02727
90159-50346
90189-05142
