NCP35-DHSNK (2000)

Toyota Bb/Open Deck

Production Jan 2000 - Dec 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0001-0512)

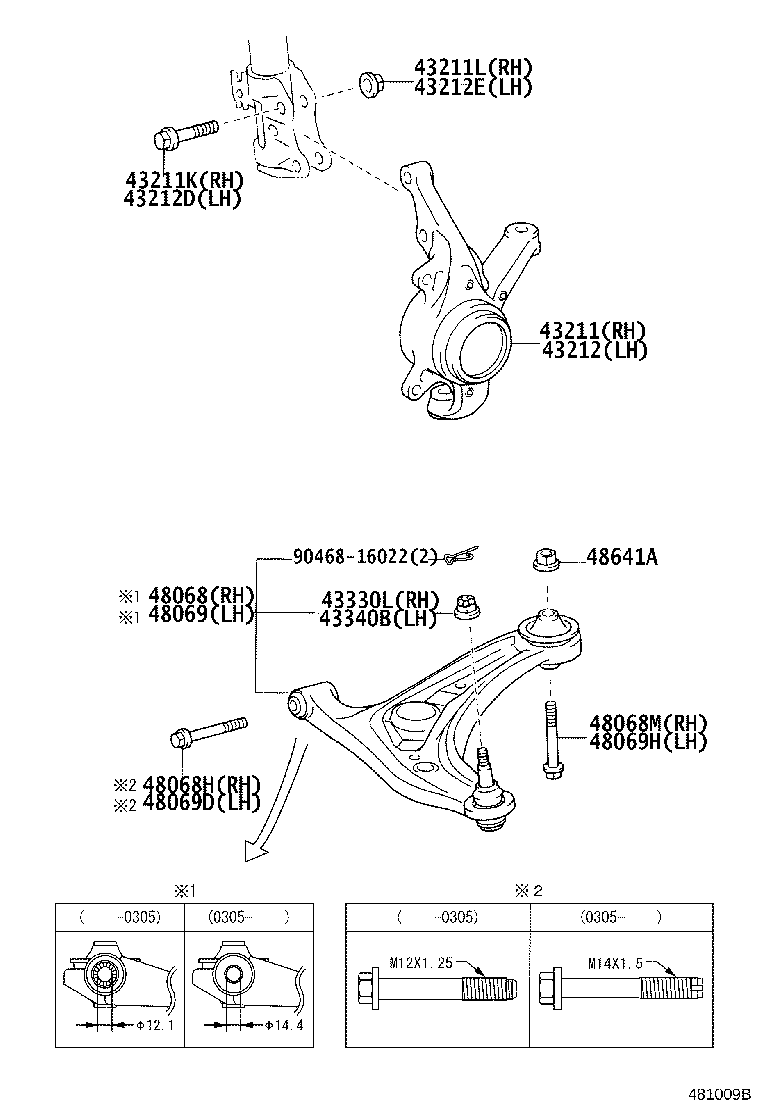

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330L 43340B 48068 48068H 48068M 48069 48069D 48069H 48641A 9046816022
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-52030

NCP35

 1
43211-52030

NCP35

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-14140

NCP3#

外径=14

 2
90105-14140

NCP3#

外径=14

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-14062

NCP3#

 2
90179-14062

NCP3#

 2
43212 - KNUCKLE, STEERING, LH
43212-52030

NCP35

 1
43212-52030

NCP35

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-14140

NCP3#

外径=14

 2
90105-14140

NCP3#

外径=14

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-14062

NCP3#

 2
90179-14062

NCP3#

 2
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-12007

NCP3#

 1
90171-12007

NCP3#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-12007

NCP3#

 1
90171-12007

NCP3#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-19176

NCP3#

 1
48068-59065

NCP3#

 1
48068-19176

NCP3#

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-12338

NCP3#

 1
90119-14086

NCP3#

 1
90119-12338

NCP3#

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-12337

NCP3#

 1
90119-12337

NCP3#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-19156

NCP3#

 1
48069-19156

NCP3#

 1
48069-59065

NCP3#

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-12338

NCP3#

 1
90119-12338

NCP3#

 1
90119-14086

NCP3#

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-12337

NCP3#

 1
90119-12337

NCP3#

 1
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90178-12009

NCP3#

 2
90178-12009

NCP3#

 2
Common parts
90468-16022
