NCP35-DHSGK (2000)
Toyota Bb/Open Deck

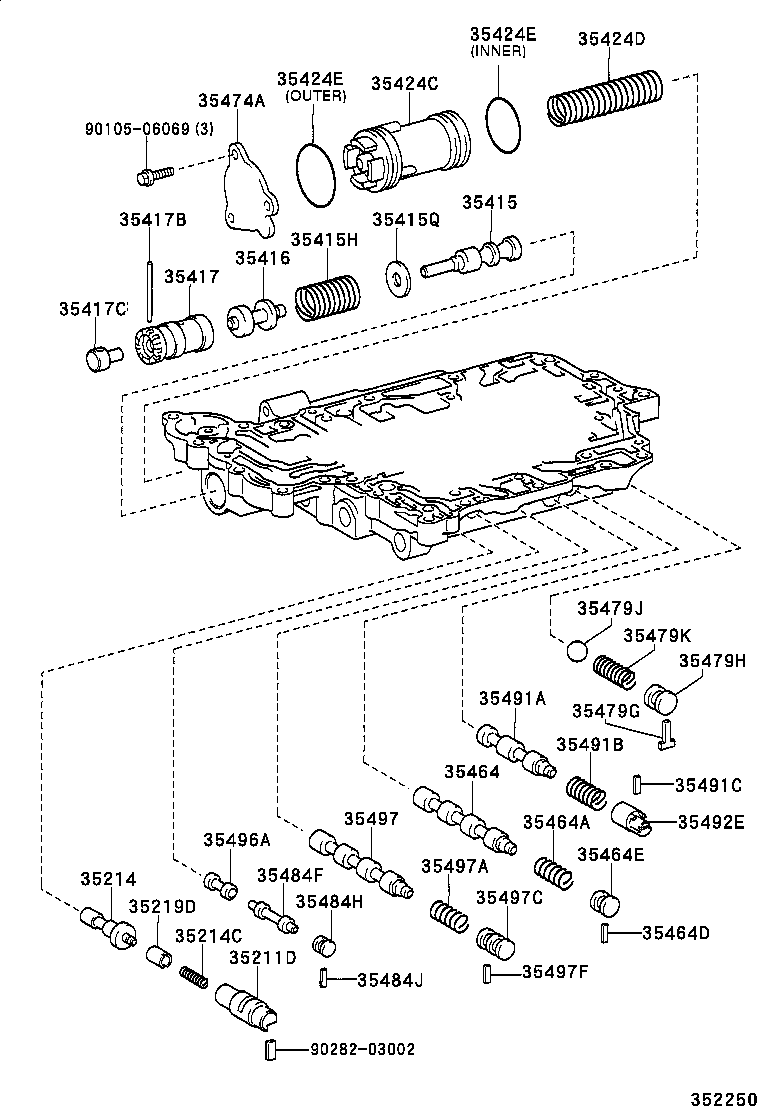

ILLUST NO. 3 OF 4(0001-0208)NCP31,34,35
U340E,U340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211D - SLEEVE, LOCK UP CONTROL VALVE | ||||
| 35211-52020 |
NCP31,34,35 |
1 | ||
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-52020 |
NCP31,34,35 |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-08194 |
NCP31,34,35 |
1 | ||
| 35219D - PLUNGER, LOCK UP CONTROL VALVE | ||||
| 35219-52020 |
NCP31,34,35 |
1 | ||
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35415-52020 |
NCP31,34,35 |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-17033 |
NCP31,34,35 |
1 | ||
| 35415Q - SPACER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90560-07029 |
NCP31,34,35 |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-52020 |
NCP31,34,35 |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-52010 |
NCP31,34,35 |
1 | ||
| 35417B - PIN, STRAIGHT (FOR PRIMARY REGULATOR VALVE SLEEVE) | ||||
| 90250-03096 |
NCP31,34,35 |
1 | ||
| 35417C - PLUG(FOR PRIMARY REGULATOR VALVE) | ||||
| 90339-06021 |
NCP31,34,35 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-52030 |
NCP31,34,35 ﾏｰｸ=52AC1 |
1 | ||
| 35424-52020 |
NCP31,34,35 ﾏｰｸ=52OC1 |
1 | ||
| 35424-52030 |
NCP31,34,35 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-24034 |
NCP31,34,35 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
NCP31,34,35 外側 |
1 | ||
| 90301-25011 |
NCP31,34,35 内側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
NCP31,34,35 外側 |
1 | ||
| 90301-25011 |
NCP31,34,35 内側 |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-52020 |
NCP31,34,35 |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-08190 |
NCP31,34,35 |
1 | ||
| 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) | ||||
| 90282-03002 |
NCP31,34,35 |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-04058 |
NCP31,34,35 |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-52010 |
NCP31,34,35 |
1 | ||
| 35479G - KEY, VALVE SPRING, NO.1 | ||||
| 35479-52010 |
NCP31,34,35 |
1 | ||
| 35479H - PLUG(FOR VALVE SPRING KEY) | ||||
| 90339-04073 |
NCP31,34,35 |
1 | ||
| 35479J - BALL(FOR VALVE SPRING KEY) | ||||
| 90360-10006 |
NCP31,34,35 |
1 | ||
| 35479K - SPRING, COMPRESSION(FOR VALVE SPRING KEY) | ||||
| 90501-15013 |
NCP31,34,35 |
1 | ||
| 35484F - VALVE, 4-3 SHIFT TIMING, NO.2 | ||||
| 35484-52010 |
NCP31,34,35 |
1 | ||
| 35484H - PLUG(FOR 4-3 SHIFT TIMING VALVE) | ||||
| 90339-04003 |
NCP31,34,35 |
1 | ||
| 35484J - KEY, STRAIGHT(FOR 4-3 SHIFT VALVE) | ||||
| 90282-03002 |
NCP31,34,35 |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-52010 |
NCP31,34,35 |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-09147 |
NCP31,34,35 |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03002 |
NCP31,34,35 |
1 | ||
| 35492E - SLEEVE, ACCUMULATOR CONTROL VALVE | ||||
| 35492-52010 |
NCP31,34,35 |
1 | ||
| 35496A - PLUNGER, 4-3 SHIFT TIMING VALVE, NO.2 | ||||
| 35496-52010 |
NCP31,34,35 |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-52020 |
NCP31,34,35 |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-08190 |
NCP31,34,35 |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-04072 |
NCP31,34,35 |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03002 |
NCP31,34,35 |
1 | ||
| Common parts | ||||
| 90105-06069 | ||||
| 90282-03002 | ||||

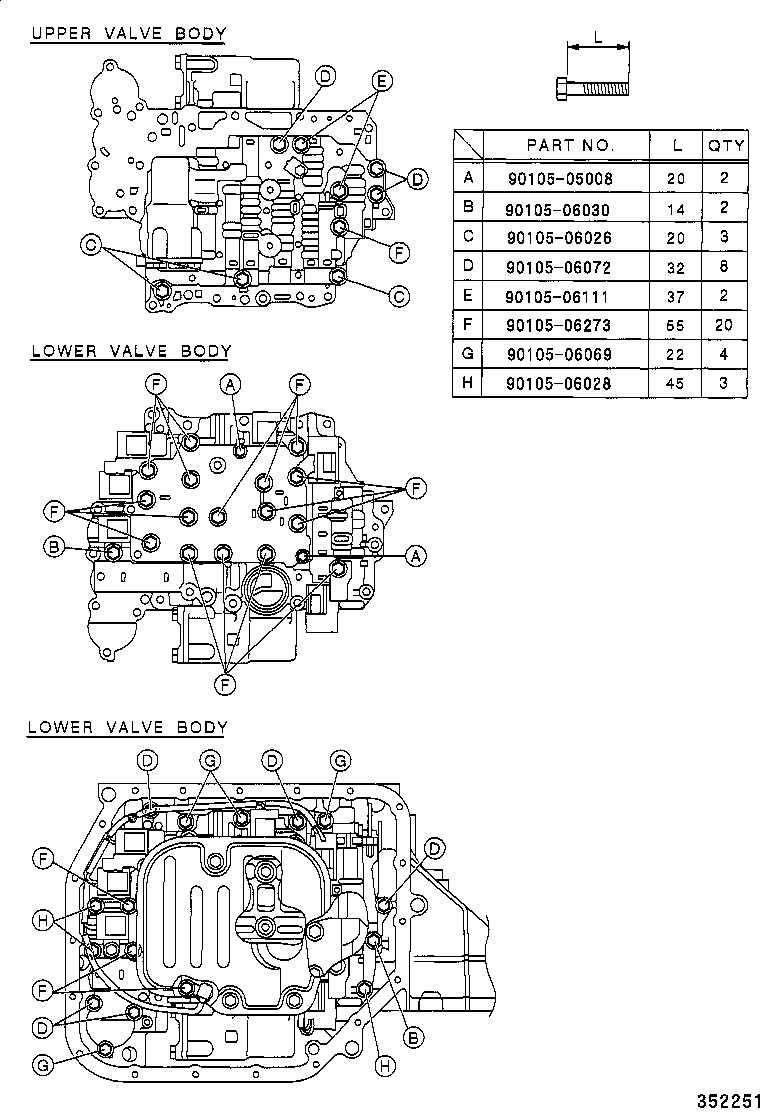

ILLUST NO. 4 OF 4(0001-0208)NCP31,34,35
U340E,U340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05008 | ||||
| 90105-06026 | ||||
| 90105-06028 | ||||
| 90105-06030 | ||||
| 90105-06069 | ||||
| 90105-06072 | ||||
| 90105-06111 | ||||
| 90105-06273 | ||||

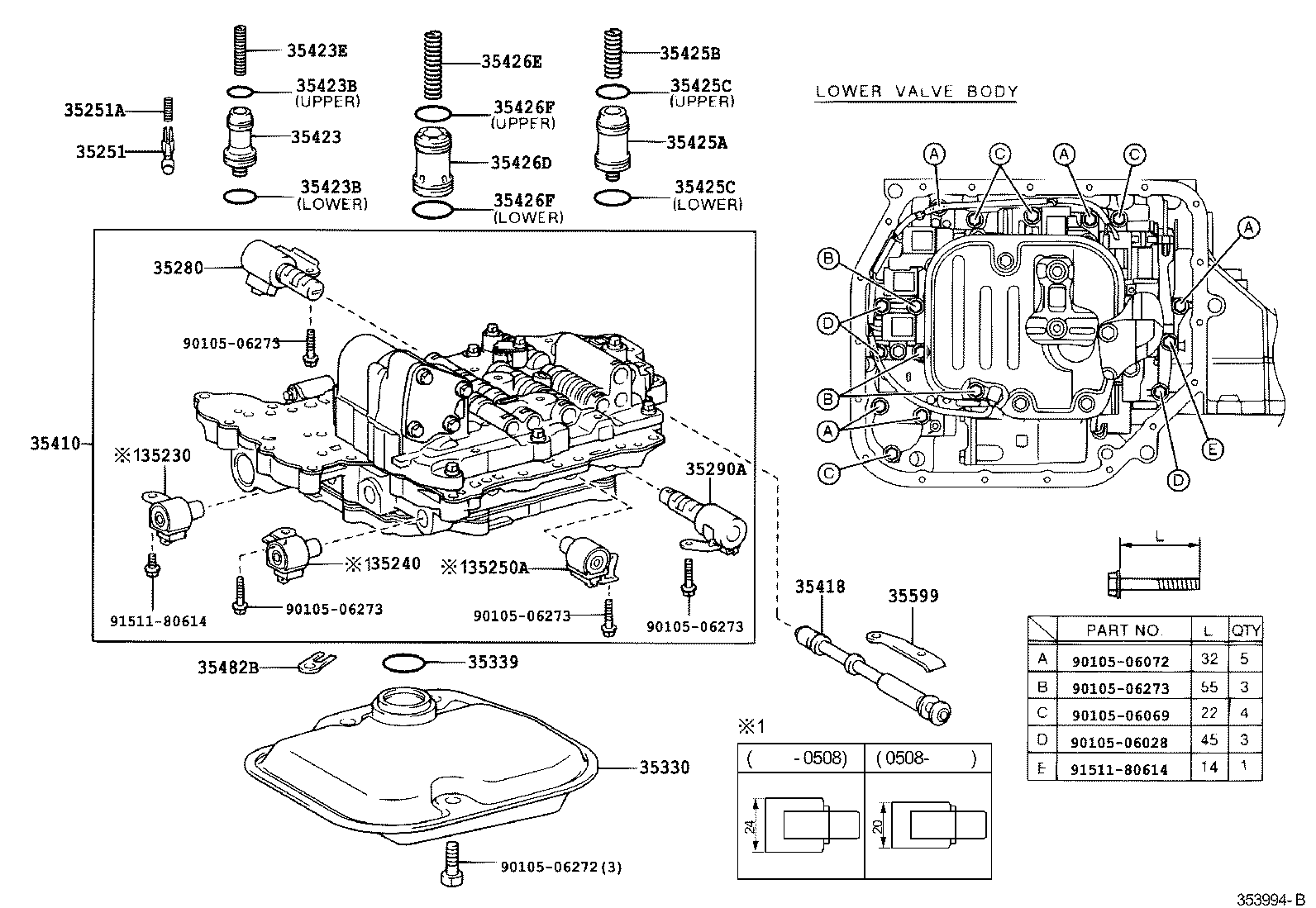

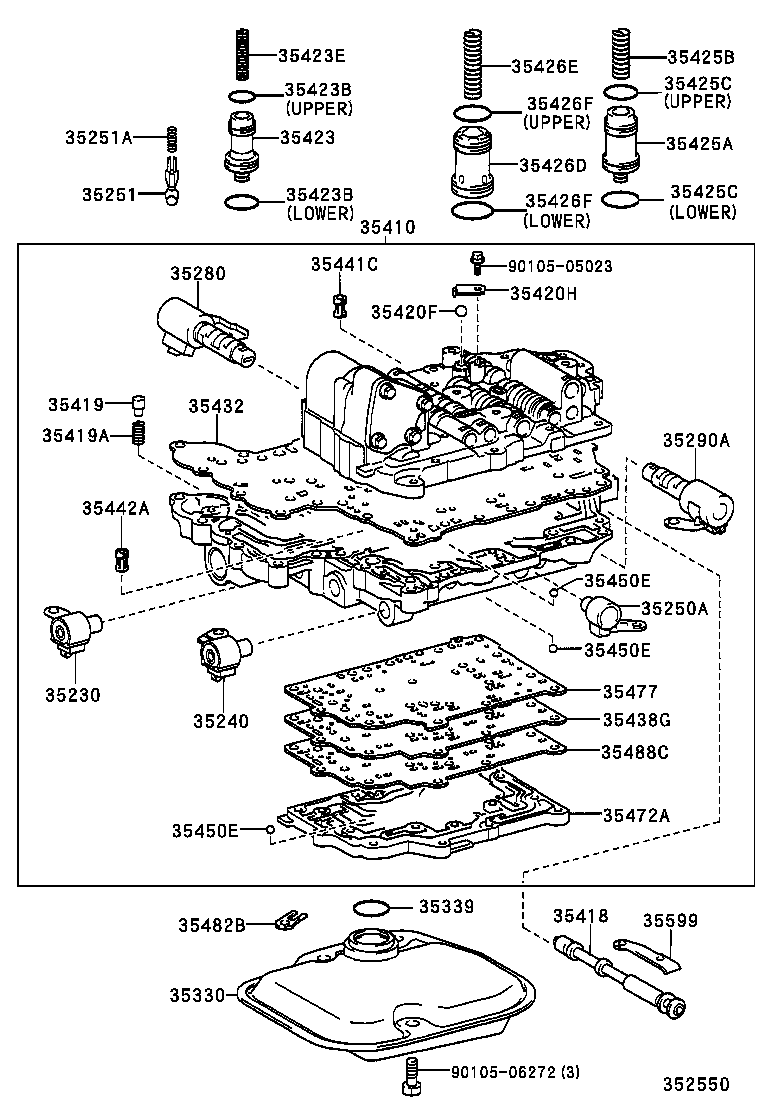

ILLUST NO. 1 OF 4(0001-0208)NCP31,34,35
U340E,U340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-52011 |
NCP31,34,35 |
1 | ||
| 35230-52011 |
NCP31,34,35 |
1 | ||
| 35230-52010 |
NCP31,34,35 |
1 | ||
| 35230-52020 |
NCP31,35 |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-52010 |
NCP31,34,35 |
1 | ||
| 35240-52011 |
NCP31,34,35 |
1 | ||
| 35240-52011 |
NCP31,34,35 |
1 | ||
| 35240-52050 |
NCP31,35 |
1 | ||
| 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 | ||||
| 35250-52010 |
NCP31,34,35 |
1 | ||
| 35250-52080 |
NCP31,35 |
1 | ||
| 35250-52010 |
NCP31,34,35 |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
NCP3# |
1 | ||
| 35251-30020 |
NCP3# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
NCP31,34,35 |
1 | ||
| 90501-03005 |
NCP31,34,35 |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-52020 |
NCP31,34,35 |
1 | ||
| 35280-52020 |
NCP31,34,35 |
1 | ||
| 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-52030 |
NCP31,34,35 |
1 | ||
| 35290-52030 |
NCP31,34,35 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-0W020 |
NCP31,34,35 |
1 | ||
| 35330-0W020 |
NCP31,34,35 |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 90301-32010 |
NCP31,34,35 |
1 | ||
| 90301-32010 |
NCP31,34,35 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-52060 |
NCP31,34,35 |
1 | ||
| 35410-52060 |
NCP31,34,35 |
1 | ||
| 35410-52062 |
NCP31,35 |
1 | ||
| 35410-52061 |
NCP31,34,35 |
1 | ||
| 35410-52190 |
NCP31,35 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-52020 |
NCP31,34,35 |
1 | ||
| 35418-52020 |
NCP31,34,35 |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-32010 |
NCP31,34,35 |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-10056 |
NCP31,34,35 |
1 | ||
| 90501-10238 |
NCP31,34,35 |
1 | ||
| 35420F - BALL, CHECK, NO.1 | ||||
| 90360-10006 |
NCP31,34,35 |
1 | ||
| 35420H - COVER, CHECK BALL | ||||
| 35493-52030 |
NCP31,34,35 |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35403-52010 |
NCP31,34,35 ﾏｰｸ=52OB2 |
1 | ||
| 35403-52020 |
NCP31,34,35 |
1 | ||
| 35403-52020 |
NCP31,34,35 ﾏｰｸ=52AB2 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 90301-20010 |
NCP31,34,35 下側 |
1 | ||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 90301-20010 |
NCP31,34,35 下側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 90301-20010 |
NCP31,34,35 下側 |
1 | ||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 90301-20010 |
NCP31,34,35 下側 |
1 | ||
| 35423E - SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON) | ||||
| 90501-20158 |
NCP31,34,35 |
1 | ||
| 90501-20158 |
NCP31,34,35 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-52020 |
NCP31,34,35 ﾏｰｸ=52AC2 |
1 | ||
| 35405-52010 |
NCP31,34,35 ﾏｰｸ=52OC2 |
1 | ||
| 35405-52020 |
NCP31,34,35 |
1 | ||
| 35405-52020 |
NCP31,34,35 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-24036 |
NCP31,34,35 |
1 | ||
| 90501-24036 |
NCP31,34,35 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-35004 |
NCP31,34,35 上側 |
1 | ||
| 90301-35004 |
NCP31,34,35 上側 |
1 | ||
| 90301-22010 |
NCP31,34,35 下側 |
1 | ||
| 90301-22010 |
NCP31,34,35 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-35004 |
NCP31,34,35 上側 |
1 | ||
| 90301-35004 |
NCP31,34,35 上側 |
1 | ||
| 90301-22010 |
NCP31,34,35 下側 |
1 | ||
| 90301-22010 |
NCP31,34,35 下側 |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-52020 |
NCP31,34,35 |
1 | ||
| 35426-52020 |
NCP31,34,35 |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-25057 |
NCP31,34,35 |
1 | ||
| 90501-25057 |
NCP31,34,35 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
NCP31,34,35 下側 |
1 | ||
| 90301-24016 |
NCP31,34,35 下側 |
1 | ||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
NCP31,34,35 下側 |
1 | ||
| 90301-24016 |
NCP31,34,35 下側 |
1 | ||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-52050 |
NCP31,34,35 |
1 | ||
| 35438G - PLATE, VALVE BODY, NO.2 | ||||
| 35438-52020 |
NCP31,34,35 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-52010 |
NCP31,34,35 |
1 | ||
| 35442A - STRAINER, SOLENOID OIL, NO.2 | ||||
| 35442-21010 |
NCP31,34,35 |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
NCP31,34,35 外径=5.535,ﾗﾊﾞｰ |
8 | ||
| 35495-22020 |
NCP31,35 外径=5.535,ﾗﾊﾞｰ |
7 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
NCP31,34,35 外径=5.535,ﾗﾊﾞｰ |
8 | ||
| 35495-22020 |
NCP31,35 外径=5.535,ﾗﾊﾞｰ |
7 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
NCP31,34,35 外径=5.535,ﾗﾊﾞｰ |
8 | ||
| 35495-22020 |
NCP31,35 外径=5.535,ﾗﾊﾞｰ |
7 | ||
| 35472A - COVER, LOWER VALVE BODY | ||||
| 35472-52020 |
NCP31,34,35 |
1 | ||
| 35477 - GASKET, VALVE BODY COVER | ||||
| 35477-52020 |
NCP31,34,35 |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-52020 |
NCP31,34,35 |
1 | ||
| 35482-52020 |
NCP31,34,35 |
1 | ||
| 35488C - GASKET, VALVE BODY COVER, NO.2 | ||||
| 35488-52010 |
NCP31,34,35 |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-52010 |
NCP31,34,35 |
1 | ||
| 35599-52010 |
NCP31,34,35 |
1 | ||
| Common parts | ||||
| 90105-05023 | ||||
| 90105-06272 | ||||

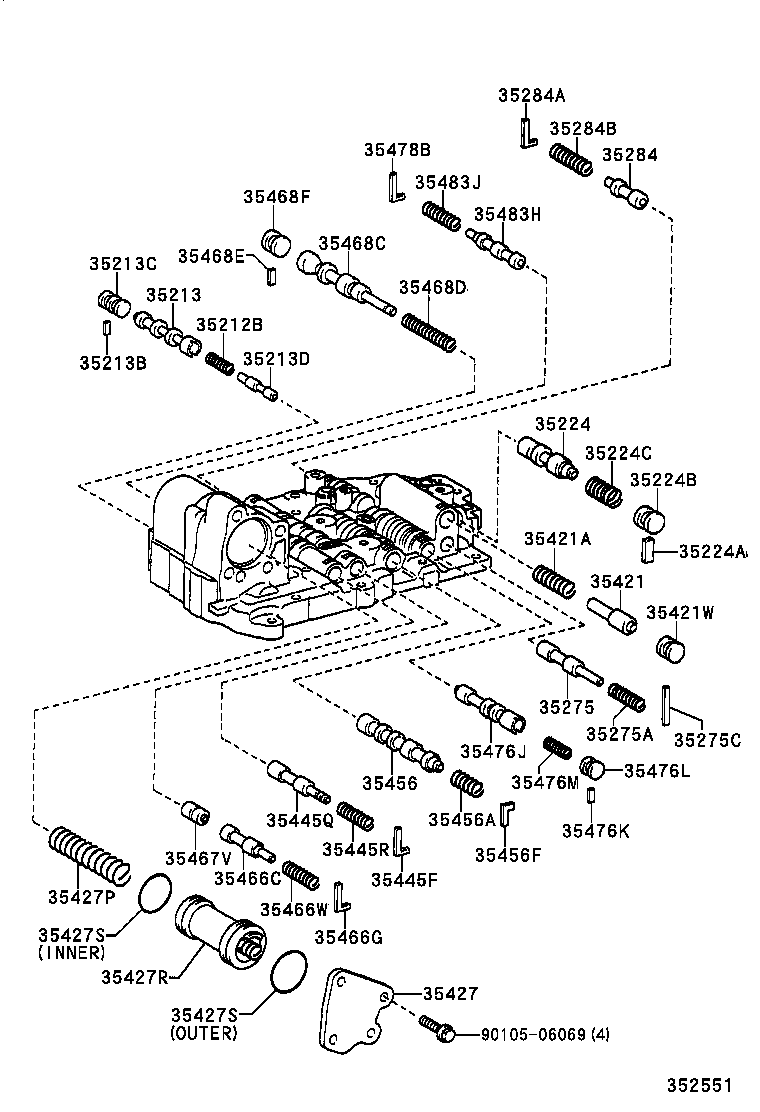

ILLUST NO. 2 OF 4(0001-0208)NCP31,34,35
U340E,U340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-06107 |
NCP31,34,35 |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35212-52020 |
NCP31,34,35 |
1 | ||
| 35213B - KEY, STRAIGHT (FOR LOCK UP CONTROL VALVE) | ||||
| 90282-03027 |
NCP31,34,35 |
1 | ||
| 35213C - PLUG (FOR LOCK UP CONTROL VALVE) | ||||
| 90339-04072 |
NCP31,34,35 |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-52010 |
NCP31,34,35 |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-52010 |
NCP31,34,35 |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 90282-03027 |
NCP31,34,35 |
1 | ||
| 35224B - PLUG (FOR REVERSE CONTROL VALVE) | ||||
| 90339-04060 |
NCP31,34,35 |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-06106 |
NCP31,34,35 |
1 | ||
| 35275 - VALVE, SOLENOID MODULATOR | ||||
| 35275-52020 |
NCP31,34,35 |
1 | ||
| 35275A - SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE) | ||||
| 90501-12184 |
NCP31,34,35 |
1 | ||
| 35275C - KEY, STRAIGHT | ||||
| 90282-03025 |
NCP31,34,35 |
1 | ||
| 35284 - VALVE, SOLENOID RELAY | ||||
| 35284-52010 |
NCP31,34,35 |
1 | ||
| 35284A - KEY, STRAIGHT (FOR SOLENOID RELAY VALVE) | ||||
| 35478-52010 |
NCP31,34,35 |
1 | ||
| 35284B - SPRING, COMPRESSION (FOR SOLENOID RELAY VALVE) | ||||
| 90501-08154 |
NCP31,34,35 |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-52010 |
NCP31,34,35 |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-13056 |
NCP31,34,35 |
1 | ||
| 35421W - PLUG, C-1 ACCUMULATOR VALVE | ||||
| 90339-04058 |
NCP31,34,35 |
1 | ||
| 35427 - COVER, ACCUMULATOR | ||||
| 35475-52010 |
NCP31,34,35 |
1 | ||
| 35427P - SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90501-17035 |
NCP31,34,35 |
1 | ||
| 35427R - PISTON B-1 ACCUMULATOR | ||||
| 35407-52010 |
NCP31,34,35 |
1 | ||
| 35427S - RING, O(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90301-20010 |
NCP31,34,35 内側 |
1 | ||
| 90301-27010 |
NCP31,34,35 外側 |
1 | ||
| 35427S - RING, O(FOR B-1 ACCUMULATOR PISTON) | ||||
| 90301-20010 |
NCP31,34,35 内側 |
1 | ||
| 90301-27010 |
NCP31,34,35 外側 |
1 | ||
| 35445F - KEY, STRAIGHT (FOR LOW MODULATOR VALVE) | ||||
| 35478-52010 |
NCP31,34,35 |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-52010 |
NCP31,34,35 |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-08189 |
NCP31,34,35 |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-52020 |
NCP31,34,35 |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08190 |
NCP31,34,35 |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 35478-52010 |
NCP31,34,35 |
1 | ||
| 35466C - VALVE, 3-4 SHIFT TIMING | ||||
| 35466-52020 |
NCP31,34,35 |
1 | ||
| 35466G - KEY, STRAIGHT (FOR 2ND LOCK VALVE) | ||||
| 35478-52010 |
NCP31,34,35 |
1 | ||
| 35466W - SPRING, COMPRESSION(FOR 3-4 SHIFT TIMING VALVE) | ||||
| 90501-07133 |
NCP31,34,35 |
1 | ||
| 35467V - PLUNGER, 3-4 SHIFT TIMING VALVE | ||||
| 35467-52020 |
NCP31,34,35 |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-52020 |
NCP31,34,35 |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12183 |
NCP31,34,35 |
1 | ||
| 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) | ||||
| 90282-03027 |
NCP31,34,35 |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-04060 |
NCP31,34,35 |
1 | ||
| 35476J - VALVE, COAST RELAY | ||||
| 35476-52010 |
NCP31,34,35 |
1 | ||
| 35476K - KEY, STRAIGHT(FOR COAST RELAY VALVE) | ||||
| 90282-03027 |
NCP31,34,35 |
1 | ||
| 35476L - PLUG(FOR COAST RELAY VALVE) | ||||
| 90339-04028 |
NCP31,34,35 |
1 | ||
| 35476M - SPRING, COMPRESSION(FOR COAST RELAY VALVE) | ||||
| 90501-06108 |
NCP31,34,35 |
1 | ||
| 35478B - KEY, VALVE SPRING, NO.2 | ||||
| 35478-52010 |
NCP31,34,35 |
1 | ||
| 35483H - VALVE, 4-3 SHIFT TIMING, NO.1 | ||||
| 35483-52010 |
NCP31,34,35 |
1 | ||
| 35483J - SPRING, COMPRESSION(FOR 4-3 SHIFT TIMING VALVE) | ||||
| 90501-07132 |
NCP31,34,35 |
1 | ||
| Common parts | ||||
| 90105-06069 | ||||
(0208- )NCP31,34,35
U340E,U340F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-52011 |
NCP31,34,35 |
1 | ||
| 35230-52011 |
NCP31,34,35 |
1 | ||
| 35230-52010 |
NCP31,34,35 |
1 | ||
| 35230-52020 |
NCP31,35 |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-52010 |
NCP31,34,35 |
1 | ||
| 35240-52011 |
NCP31,34,35 |
1 | ||
| 35240-52011 |
NCP31,34,35 |
1 | ||
| 35240-52050 |
NCP31,35 |
1 | ||
| 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 | ||||
| 35250-52010 |
NCP31,34,35 |
1 | ||
| 35250-52080 |
NCP31,35 |
1 | ||
| 35250-52010 |
NCP31,34,35 |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
NCP3# |
1 | ||
| 35251-30020 |
NCP3# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
NCP31,34,35 |
1 | ||
| 90501-03005 |
NCP31,34,35 |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-52020 |
NCP31,34,35 |
1 | ||
| 35280-52020 |
NCP31,34,35 |
1 | ||
| 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-52030 |
NCP31,34,35 |
1 | ||
| 35290-52030 |
NCP31,34,35 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-0W020 |
NCP31,34,35 |
1 | ||
| 35330-0W020 |
NCP31,34,35 |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 90301-32010 |
NCP31,34,35 |
1 | ||
| 90301-32010 |
NCP31,34,35 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-52060 |
NCP31,34,35 |
1 | ||
| 35410-52060 |
NCP31,34,35 |
1 | ||
| 35410-52062 |
NCP31,35 |
1 | ||
| 35410-52061 |
NCP31,34,35 |
1 | ||
| 35410-52190 |
NCP31,35 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-52020 |
NCP31,34,35 |
1 | ||
| 35418-52020 |
NCP31,34,35 |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35403-52010 |
NCP31,34,35 ﾏｰｸ=52OB2 |
1 | ||
| 35403-52020 |
NCP31,34,35 |
1 | ||
| 35403-52020 |
NCP31,34,35 ﾏｰｸ=52AB2 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 90301-20010 |
NCP31,34,35 下側 |
1 | ||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 90301-20010 |
NCP31,34,35 下側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 90301-20010 |
NCP31,34,35 下側 |
1 | ||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 90301-20010 |
NCP31,34,35 下側 |
1 | ||
| 35423E - SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON) | ||||
| 90501-20158 |
NCP31,34,35 |
1 | ||
| 90501-20158 |
NCP31,34,35 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35405-52020 |
NCP31,34,35 ﾏｰｸ=52AC2 |
1 | ||
| 35405-52010 |
NCP31,34,35 ﾏｰｸ=52OC2 |
1 | ||
| 35405-52020 |
NCP31,34,35 |
1 | ||
| 35405-52020 |
NCP31,34,35 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-24036 |
NCP31,34,35 |
1 | ||
| 90501-24036 |
NCP31,34,35 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-35004 |
NCP31,34,35 上側 |
1 | ||
| 90301-35004 |
NCP31,34,35 上側 |
1 | ||
| 90301-22010 |
NCP31,34,35 下側 |
1 | ||
| 90301-22010 |
NCP31,34,35 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-35004 |
NCP31,34,35 上側 |
1 | ||
| 90301-35004 |
NCP31,34,35 上側 |
1 | ||
| 90301-22010 |
NCP31,34,35 下側 |
1 | ||
| 90301-22010 |
NCP31,34,35 下側 |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-52020 |
NCP31,34,35 |
1 | ||
| 35426-52020 |
NCP31,34,35 |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-25057 |
NCP31,34,35 |
1 | ||
| 90501-25057 |
NCP31,34,35 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
NCP31,34,35 下側 |
1 | ||
| 90301-24016 |
NCP31,34,35 下側 |
1 | ||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
NCP31,34,35 下側 |
1 | ||
| 90301-24016 |
NCP31,34,35 下側 |
1 | ||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 90301-29011 |
NCP31,34,35 上側 |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-52020 |
NCP31,34,35 |
1 | ||
| 35482-52020 |
NCP31,34,35 |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-52010 |
NCP31,34,35 |
1 | ||
| 35599-52010 |
NCP31,34,35 |
1 | ||
| Common parts | ||||
| 90105-06028 | ||||
| 90105-06069 | ||||
| 90105-06072 | ||||
| 90105-06272 | ||||
| 90105-06273 | ||||
| 91511-80614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
