Toyota Bb/open deck NCP34 FRONT BUMPER & BUMPER STAY

Part #	Description	Period	Qty
51961E - HOOK, FRONT
51960-52010	NCP3#	01/2000 - 12/2001	1
51960-52040	NCP34	12/2001 - 08/2002	1
52119A - COVER, FRONT BUMPER
52119-52050A1	NCP34 WHITE,068	06/2001 - 08/2001	1
52119-52050B0	NCP3# GRAY ME.,1D2	01/2000 - 08/2002	1
52119-52050C1	NCP34 BLACK MC.,209	06/2001 - 08/2002	1
52119-52050F1	NCP34 YELLOW,577	08/2002 - 03/2003	1
52119-52050A1	NCP3# WHITE,068	08/2001 - 08/2002	1
52119-52050C1	NCP34 BLACK MC.,209	08/2002 - 03/2003	1
52119-52050J1	NCP34 I ﾊﾞ-ｼﾞﾖﾝ *(A),STRONG BLUE M.,8B6	07/2001 - 09/2001	1
52119-52050F1	NCP34 YELLOW,577	06/2001 - 08/2002	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-52060A1	NCP34 WHITE,068	06/2001 - 08/2001	1
52127-52060J1	NCP34 I ﾊﾞ-ｼﾞﾖﾝ *(A),STRONG BLUE M.,8B6	07/2001 - 09/2001	1
52127-52060B0	NCP3# GRAY ME.,1D2	01/2000 - 08/2002	1
52127-52060A1	NCP3# WHITE,068	08/2001 - 08/2002	1
52127-52060C1	NCP34 BLACK MC.,209	06/2001 - 08/2002	1
52127-52060F1	NCP34 YELLOW,577	08/2002 - 03/2003	1
52127-52060C1	NCP34 BLACK MC.,209	08/2002 - 03/2003	1
52127-52060F1	NCP34 YELLOW,577	06/2001 - 08/2002	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52070	NCP3#	01/2000 - 08/2002	1
52133B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, RH
52133-52010	NCP3#	01/2000 - 08/2002	1
52134B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, LH
52134-52010	NCP3#	01/2000 - 08/2002	1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-52040	NCP3#	01/2000 - 08/2002	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-52040	NCP3#	01/2000 - 08/2002	1
53112D - GRILLE, RADIATOR, LOWER RH
53112-52030J1	NCP34 I ﾊﾞ-ｼﾞﾖﾝ *(A),STRONG BLUE M.,8B6	07/2001 - 09/2001	1
53112-52030A1	NCP34 WHITE,068	06/2001 - 08/2001	1
53112-52030B0	NCP3# GRAY ME.,1D2	01/2000 - 08/2002	1
53112-52030A1	NCP3# WHITE,068	08/2001 - 08/2002	1
53113D - GRILLE, RADIATOR, LOWER LH
53113-52010B0	NCP3# GRAY ME.,1D2	01/2000 - 08/2002	1
53113-52010A1	NCP3# WHITE,068	08/2001 - 08/2002	1
53113-52010A1	NCP34 WHITE,068	06/2001 - 08/2001	1
53113-52010J1	NCP34 I ﾊﾞ-ｼﾞﾖﾝ *(A),STRONG BLUE M.,8B6	07/2001 - 09/2001	1
76851C - FRONT SPOILER
76851-52020	NCP3# ｲﾗｽﾄｻﾝｼﾖｳ	01/2000 - 05/2000	1
76851-52030A1	NCP34 ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,WHITE,068	06/2001 - 08/2001	1
76851-52030F1	NCP34 ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,YELLOW,577	06/2001 - 08/2002	1
76851-52030B0	NCP3# ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,GRAY ME.,1D2	01/2000 - 08/2002	1
76851-52030C1	NCP34 ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,BLACK MC.,209	08/2002 - 03/2003	1
76851-52030J1	NCP34 I ﾊﾞ-ｼﾞﾖﾝ *(A) & ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,STRONG BLUE M.,8B6	07/2001 - 09/2001	1
76851-52030C1	NCP34 ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,BLACK MC.,209	06/2001 - 08/2002	1
76851-52030A1	NCP3# ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,WHITE,068	08/2001 - 08/2002	1
76851-52030F1	NCP34 ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,YELLOW,577	08/2002 - 03/2003	1
76852D - COVER, FR SPOILER, LH
76852-52020	NCP3# ｲﾗｽﾄｻﾝｼﾖｳ	01/2000 - 05/2000	1
76852-52030A1	NCP34 ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,WHITE,068	06/2001 - 08/2001	1
76852-52030J1	NCP34 I ﾊﾞ-ｼﾞﾖﾝ *(A) & ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,STRONG BLUE M.,8B6	07/2001 - 09/2001	1
76852-52030B0	NCP3# ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,GRAY ME.,1D2	01/2000 - 08/2002	1
76852-52030F1	NCP34 ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,YELLOW,577	06/2001 - 08/2002	1
76852-52030C1	NCP34 ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,BLACK MC.,209	06/2001 - 08/2002	1
76852-52030C1	NCP34 ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,BLACK MC.,209	08/2002 - 03/2003	1
76852-52030F1	NCP34 ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,YELLOW,577	08/2002 - 03/2003	1
76852-52030A1	NCP3# ｱﾘ(ｵｵｶﾞﾀﾊﾞﾝﾊﾟ) & ｲﾗｽﾄｻﾝｼﾖｳ,WHITE,068	08/2001 - 08/2002	1
81481C - BRACKET, FOG LAMP
81481-10030	NCP3#	01/2000 - 08/2002	2
Common parts
90109-06190
90119-06451
90119-06786
90159-50002
90176-08054
90179-06127
90467-08185
90467-09093
Linked diagrams
5102
5302
8102

NCP34-GGSNK (2001)

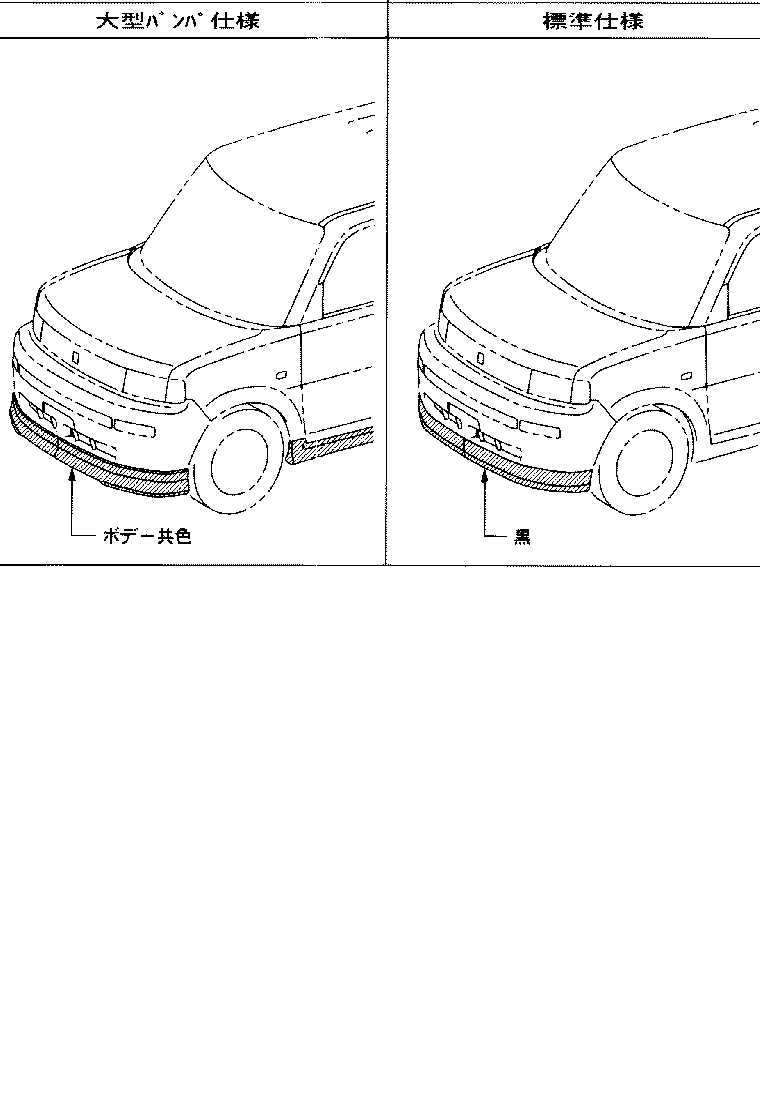

ILLUST NO. 1 OF 2(0001-0304)

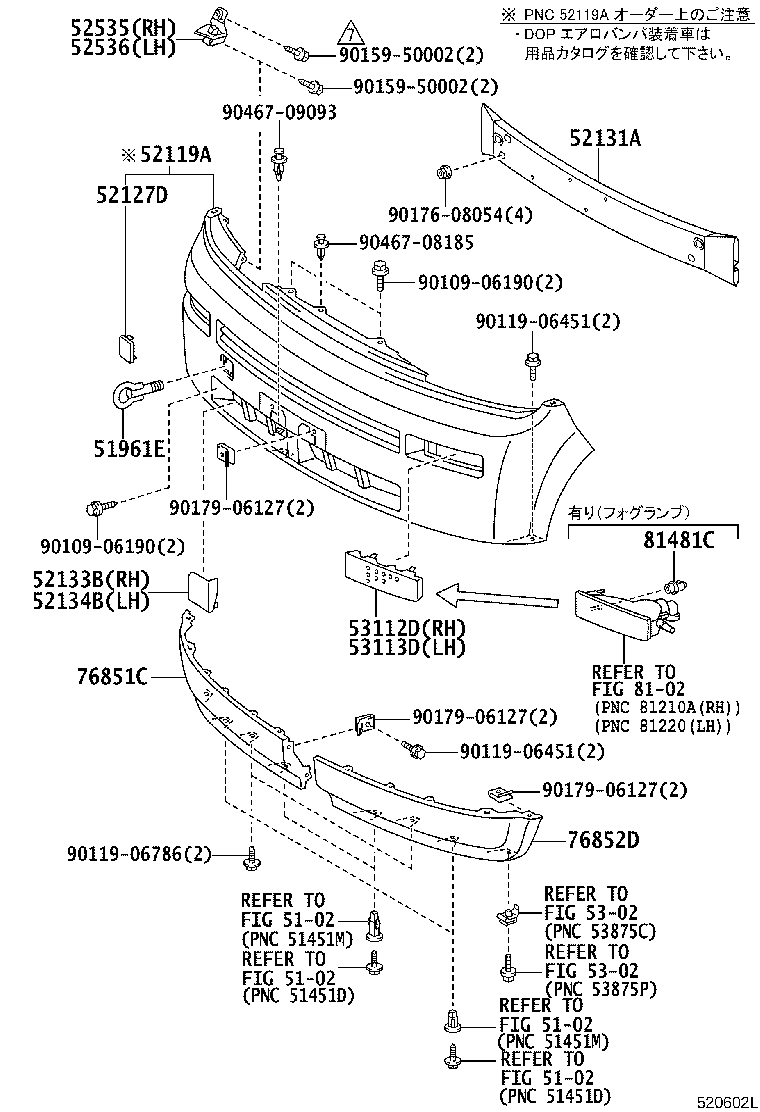

ILLUST NO. 2 OF 2(0001-0304)
