NCP31-DHSGK (2000)

Toyota Bb/Open Deck

Production Jan 2000 - Dec 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0001- )

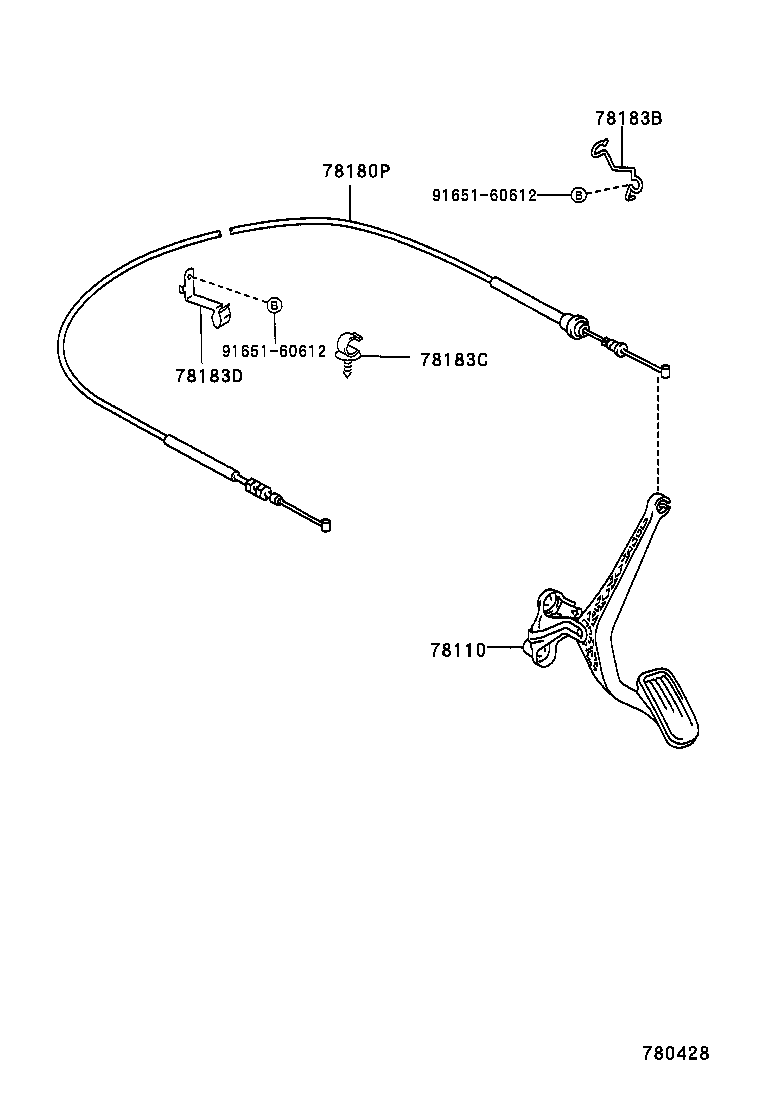

Click highlighted areas on diagram

diagram 78110 78180P 78183B 78183C 78183D 9165160612 9165160612
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-52050

NCP3#

 1
78120-52050

NCP3#

 1
78120-52110

NCP3#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-52030

NCP3#

 1
78180-52030

NCP3#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-52080

NCP3#

 1
78183-52080

NCP3#

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-52070

NCP3#

 1
78183-52070

NCP3#

 1
78183D - CLAMP, ACCELERATOR CONTROL CABLE
78183-52030

NCP3#

 1
78183-52120

NCP3#

 1
78183-52120

NCP3#

 1
Common parts
91651-60612
