NCP31-DHSGK (2000)

Toyota Bb/Open Deck

Production Jan 2000 - Dec 2005
Engine 1NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0001- )

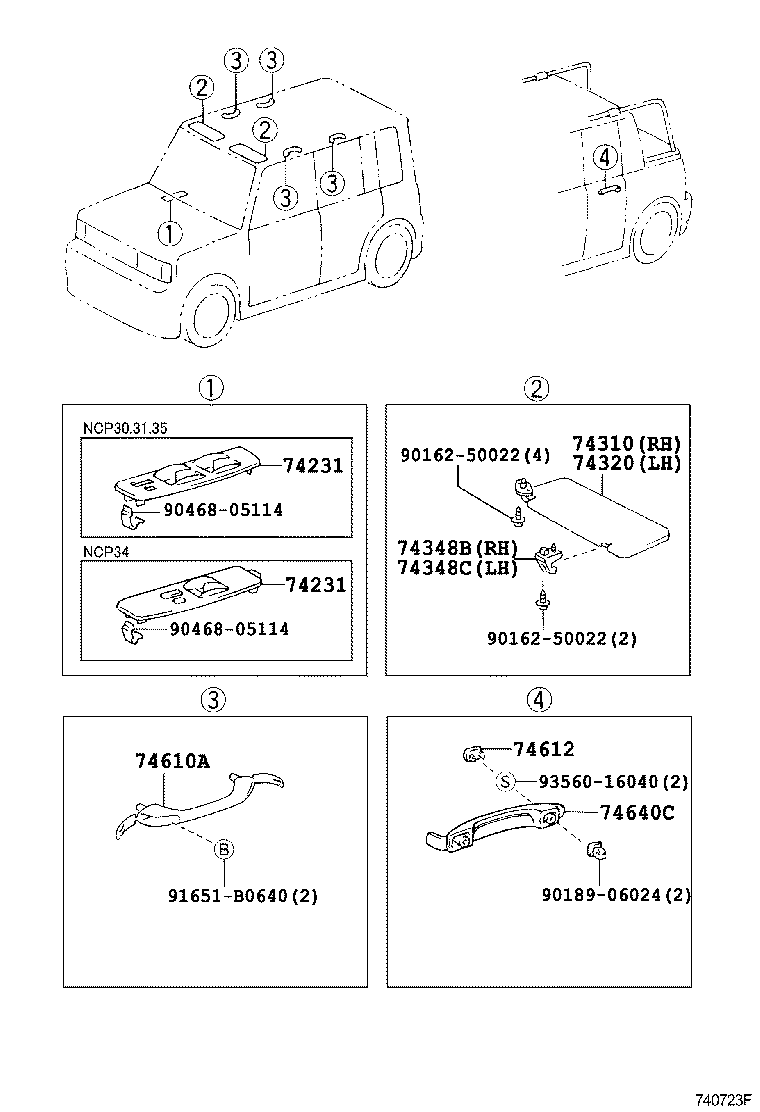

Click highlighted areas on diagram

diagram 74231 74231 74310 74320 74348B 74348C 74610A 74612 74640C 9016250022 9016250022 9018906024 9046805114 9046805114 91651B0640 9356016040
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-52080B0

NCP30,31,35

DK.GRAY,TRIM92,93

 1
74231-52080B0

NCP30,31,35

DK.GRAY,TRIM9#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-52080B0

NCP30,31,35

DK.GRAY,TRIM92,93

 1
74231-52080B0

NCP30,31,35

DK.GRAY,TRIM9#

 1
74310 - VISOR ASSY, RH
74310-52120B0

NCP30,31,35

LT.GRAY,TRIM92,93

 1
74310-52120B0

NCP30,31,35

LT.GRAY,TRIM9#

 1
74320 - VISOR ASSY, LH
74320-52170B0

NCP30,31,35

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),LT.GRAY,TRIM92,93

 1
74320-52180B0

NCP30,31

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ﾊﾞﾆﾃｲ ﾐﾗ-),LT.GRAY,TRIM92,93

 1
74320-52170B0

NCP30,31,35

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),LT.GRAY,TRIM9#

 1
74320-52190B0

NCP30,31,35

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ﾊﾞﾆﾃｲ ﾐﾗ-),LT.GRAY,TRIM92,93

 1
74320-52190B0

NCP30,31,35

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ & ﾊﾞﾆﾃｲ ﾐﾗ-),LT.GRAY,TRIM9#

 1
74320-52160B0

NCP30,31

ｱﾘ(*80,ｳﾝﾃﾝｾｷ),LT.GRAY,TRIM92,93

 1
74348B - HOLDER, VISOR, RH
74348-12030B5

NCP30,31,35

LT.GRAY,TRIM9#

 1
74348-12030B5

NCP30,31,35

LT.GRAY,TRIM92,93

 1
74348C - HOLDER, VISOR, LH
74348-12030B5

NCP30,31,35

LT.GRAY,TRIM9#

 1
74348-12030B5

NCP30,31,35

LT.GRAY,TRIM92,93

 1
74610A - GRIP SUB-ASSY, ASSIST
74611-52010B0

NCP30,31,35

LT.GRAY,TRIM9#

 3
74611-52010B0

NCP30,31,35

LT.GRAY,TRIM92,93

 3
74611-52010B0

NCP3#

LT.GRAY,TRIM9#

 4
Common parts
90162-50022
90189-06024
90468-05114
91651-B0640
93560-16040
