NCP31-DHSGK (2000)
Toyota Bb/Open Deck

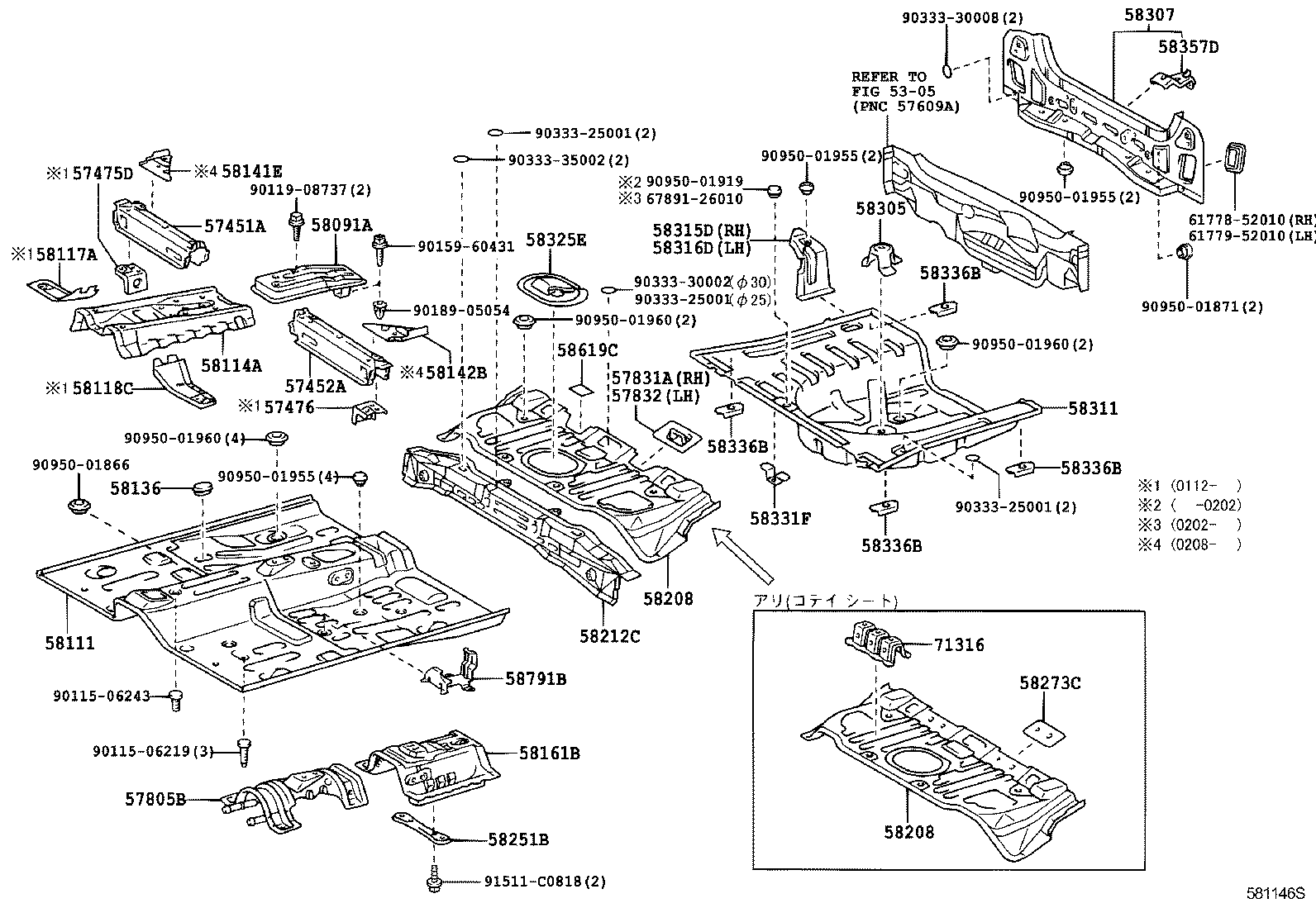

(0001-0304)NCP30,31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57451A - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57451-52031 |
NCP30,31,34 |
1 | ||
| 57451-52100 |
NCP30,31 |
1 | ||
| 57451-52030 |
NCP30,31 |
1 | ||
| 57451-52070 |
NCP30,31 |
1 | ||
| 57451-52070 |
NCP30,31 |
1 | ||
| 57452A - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57452-52020 |
NCP30,31 |
1 | ||
| 57452-52021 |
NCP30,31,34 |
1 | ||
| 57452-52080 |
NCP30,31 |
1 | ||
| 57452-52081 |
NCP30,31 |
1 | ||
| 57452-52080 |
NCP30,31 |
1 | ||
| 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH | ||||
| 57475-52010 |
NCP30,31 |
1 | ||
| 57475-52010 |
NCP30,31 |
1 | ||
| 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57476-52010 |
NCP30,31 |
1 | ||
| 57476-52010 |
NCP30,31 |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-52022 |
NCP30,31,34 |
1 | ||
| 57805-52070 |
NCP30,31 |
1 | ||
| 57805-52021 |
NCP30,31 |
1 | ||
| 57805-52070 |
NCP30,31 |
1 | ||
| 57805-52120 |
NCP30,31 |
1 | ||
| 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57831-52010 |
NCP30,31 |
1 | ||
| 57831-52010 |
NCP30,31 |
1 | ||
| 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 | ||||
| 57832-52010 |
NCP30,31 |
1 | ||
| 57832-52010 |
NCP30,31 |
1 | ||
| 58091A - REINFORCEMENT SET, BODY FITTING | ||||
| 58091-52020 |
NCP30,31,34 |
1 | ||
| 58091-52010 |
NCP31 ｱﾘ(VSC) |
1 | ||
| 58091-52020 |
NCP30,31,34 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-52907 |
NCP30,31,34 |
1 | ||
| 58111-52907 |
NCP30,31,34 |
1 | ||
| 58111-52902 |
NCP30,31 |
1 | ||
| 58111-52915 |
NCP30,31 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58103-52011 |
NCP30,31,34 |
1 | ||
| 58103-52010 |
NCP30,31,34 |
1 | ||
| 58114-52010 |
NCP30,31,34 |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-52040 |
NCP30,31 |
1 | ||
| 58117-52040 |
NCP30,31 |
1 | ||
| 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-52030 |
NCP30,31 |
1 | ||
| 58118-52030 |
NCP30,31 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-52010 |
NCP3# |
2 | ||
| 58136-52010 |
NCP3# |
2 | ||
| 58141E - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH | ||||
| 58141-52010 |
NCP30,31 |
1 | ||
| 58142B - REINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH | ||||
| 58142-52010 |
NCP30,31 |
1 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-52030 |
NCP30,31,34 |
1 | ||
| 58161-52030 |
NCP30,31,34 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-52011 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 58211-52012 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 58211-52021 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
1 | ||
| 58211-52013 |
NCP30,31 |
1 | ||
| 58211-52022 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
1 | ||
| 58211-52012 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-52011 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 58211-52012 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 58211-52021 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
1 | ||
| 58211-52013 |
NCP30,31 |
1 | ||
| 58211-52022 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
1 | ||
| 58211-52012 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 57661-52010 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
1 | ||
| 58202-52010 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 58202-52010 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-52010 |
NCP30,31,34 |
1 | ||
| 58251-52010 |
NCP30,31,34 |
1 | ||
| 58273C - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR | ||||
| 58273-52010 |
NCP30,31 |
2 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-52030 |
NCP30,31 |
1 | ||
| 58351-52030 |
NCP30,31 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-52110 |
NCP30,31,35 |
1 | ||
| 58307-52110 |
NCP30,31,35 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52032 |
NCP30,31 |
1 | ||
| 58311-52033 |
NCP30,31 |
1 | ||
| 58311-52031 |
NCP30,31 |
1 | ||
| 58311-52031 |
NCP30,31 |
1 | ||
| 58311-52030 |
NCP30,31 |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-52070 |
NCP30,31 |
1 | ||
| 58315-52070 |
NCP30,31 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-52070 |
NCP30,31 |
1 | ||
| 58316-52070 |
NCP30,31 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52010 |
NCP30,31,34 |
1 | ||
| 58325-52010 |
NCP30,31,34 |
1 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-10010 |
NCP30,31,34 |
2 | ||
| 58331-10010 |
NCP30,31,34 |
2 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
5 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
5 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
5 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
5 | ||
| 58357D - SUPPORT, REAR STEP, NO.1 | ||||
| 58357-52020 |
NCP30,31,35 |
2 | ||
| 58357-52020 |
NCP30,31,35 |
2 | ||
| 58619C - SHEET, CENTER FLOOR SILENCER SUB | ||||
| 58619-52010 |
NCP30,31 |
2 | ||
| 58619-52010 |
NCP30,31 |
2 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-52020 |
NCP3# |
1 | ||
| 58791-52021 |
NCP3# |
1 | ||
| 58791-52020 |
NCP30,31,35 |
1 | ||
| 71316 - BRACKET, REAR SEAT SUPPORT | ||||
| 71316-52010 |
NCP30,31 |
2 | ||
| Common parts | ||||
| 61778-52010 | ||||
| 61779-52010 | ||||
| 67891-26010 | ||||
| 90115-06219 | ||||
| 90115-06243 | ||||
| 90119-08737 | ||||
| 90159-60431 | ||||
| 90189-05054 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90333-35002 | ||||
| 90950-01866 | ||||
| 90950-01871 | ||||
| 90950-01919 | ||||
| 90950-01955 | ||||
| 90950-01960 | ||||
| 91511-C0818 | ||||
| Linked diagrams | ||||
| 5305 | ||||

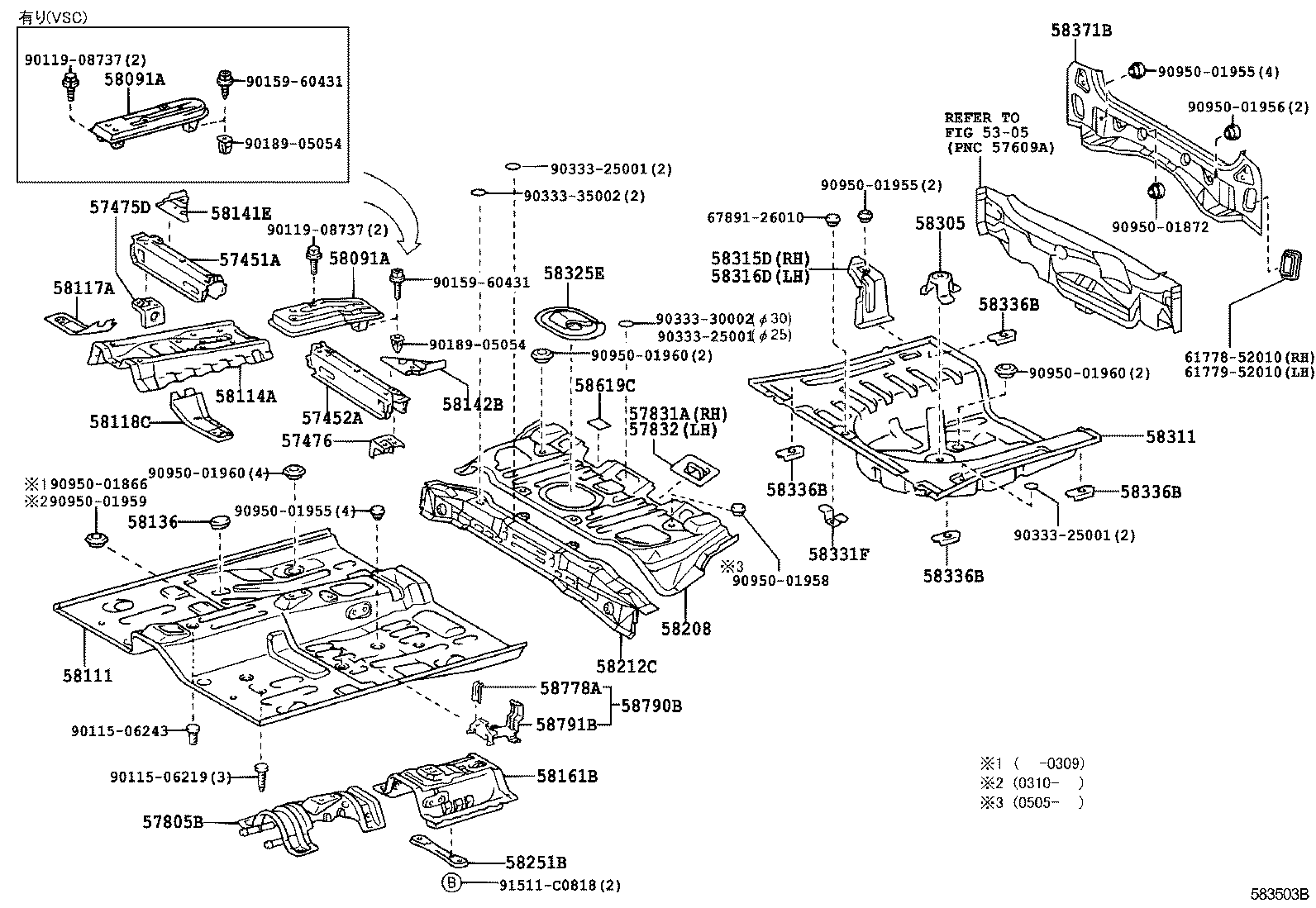

(0304- )NCP30,31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57451A - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57451-52031 |
NCP30,31,34 |
1 | ||
| 57451-52100 |
NCP30,31 |
1 | ||
| 57451-52030 |
NCP30,31 |
1 | ||
| 57451-52070 |
NCP30,31 |
1 | ||
| 57451-52070 |
NCP30,31 |
1 | ||
| 57452A - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57452-52020 |
NCP30,31 |
1 | ||
| 57452-52021 |
NCP30,31,34 |
1 | ||
| 57452-52080 |
NCP30,31 |
1 | ||
| 57452-52081 |
NCP30,31 |
1 | ||
| 57452-52080 |
NCP30,31 |
1 | ||
| 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH | ||||
| 57475-52010 |
NCP30,31 |
1 | ||
| 57475-52010 |
NCP30,31 |
1 | ||
| 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57476-52010 |
NCP30,31 |
1 | ||
| 57476-52010 |
NCP30,31 |
1 | ||
| 57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | ||||
| 57805-52022 |
NCP30,31,34 |
1 | ||
| 57805-52070 |
NCP30,31 |
1 | ||
| 57805-52021 |
NCP30,31 |
1 | ||
| 57805-52070 |
NCP30,31 |
1 | ||
| 57805-52120 |
NCP30,31 |
1 | ||
| 57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57831-52010 |
NCP30,31 |
1 | ||
| 57831-52010 |
NCP30,31 |
1 | ||
| 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 | ||||
| 57832-52010 |
NCP30,31 |
1 | ||
| 57832-52010 |
NCP30,31 |
1 | ||
| 58091A - REINFORCEMENT SET, BODY FITTING | ||||
| 58091-52020 |
NCP30,31,34 |
1 | ||
| 58091-52010 |
NCP31 ｱﾘ(VSC) |
1 | ||
| 58091-52020 |
NCP30,31,34 |
1 | ||
| 58091A - REINFORCEMENT SET, BODY FITTING | ||||
| 58091-52020 |
NCP30,31,34 |
1 | ||
| 58091-52010 |
NCP31 ｱﾘ(VSC) |
1 | ||
| 58091-52020 |
NCP30,31,34 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-52907 |
NCP30,31,34 |
1 | ||
| 58111-52907 |
NCP30,31,34 |
1 | ||
| 58111-52902 |
NCP30,31 |
1 | ||
| 58111-52915 |
NCP30,31 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58103-52011 |
NCP30,31,34 |
1 | ||
| 58103-52010 |
NCP30,31,34 |
1 | ||
| 58114-52010 |
NCP30,31,34 |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-52040 |
NCP30,31 |
1 | ||
| 58117-52040 |
NCP30,31 |
1 | ||
| 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-52030 |
NCP30,31 |
1 | ||
| 58118-52030 |
NCP30,31 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-52010 |
NCP3# |
2 | ||
| 58136-52010 |
NCP3# |
2 | ||
| 58141E - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH | ||||
| 58141-52010 |
NCP30,31 |
1 | ||
| 58142B - REINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH | ||||
| 58142-52010 |
NCP30,31 |
1 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-52030 |
NCP30,31,34 |
1 | ||
| 58161-52030 |
NCP30,31,34 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-52011 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 58211-52012 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 58211-52021 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
1 | ||
| 58211-52013 |
NCP30,31 |
1 | ||
| 58211-52022 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
1 | ||
| 58211-52012 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 57661-52010 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
1 | ||
| 58202-52010 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 58202-52010 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 58251B - BRACE, FLOOR PANEL, FRONT | ||||
| 58251-52010 |
NCP30,31,34 |
1 | ||
| 58251-52010 |
NCP30,31,34 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-52030 |
NCP30,31 |
1 | ||
| 58351-52030 |
NCP30,31 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52032 |
NCP30,31 |
1 | ||
| 58311-52033 |
NCP30,31 |
1 | ||
| 58311-52031 |
NCP30,31 |
1 | ||
| 58311-52031 |
NCP30,31 |
1 | ||
| 58311-52030 |
NCP30,31 |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-52070 |
NCP30,31 |
1 | ||
| 58315-52070 |
NCP30,31 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-52070 |
NCP30,31 |
1 | ||
| 58316-52070 |
NCP30,31 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52010 |
NCP30,31,34 |
1 | ||
| 58325-52010 |
NCP30,31,34 |
1 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-10010 |
NCP30,31,34 |
2 | ||
| 58331-10010 |
NCP30,31,34 |
2 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
5 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
5 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
5 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｽﾗｲﾄﾞ ｼ-ﾄ) |
4 | ||
| 58336-12060 |
NCP30,31 ｱﾘ(ｺﾃｲ ｼ-ﾄ) |
5 | ||
| 58371B - PANEL, BODY LOWER BACK, OUTER | ||||
| 58371-52140 |
NCP3# |
1 | ||
| 58619C - SHEET, CENTER FLOOR SILENCER SUB | ||||
| 58619-52010 |
NCP30,31 |
2 | ||
| 58619-52010 |
NCP30,31 |
2 | ||
| 58778A - BRACKET, JACK HOLDER, NO.1 | ||||
| 58778-52010 |
NCP3# |
1 | ||
| 58790B - CARRIER ASSY, JACK | ||||
| 58790-52050 |
NCP3# |
1 | ||
| 58790-52051 |
NCP3# |
1 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-52020 |
NCP3# |
1 | ||
| 58791-52021 |
NCP3# |
1 | ||
| 58791-52020 |
NCP30,31,35 |
1 | ||
| Common parts | ||||
| 61778-52010 | ||||
| 61779-52010 | ||||
| 67891-26010 | ||||
| 90115-06219 | ||||
| 90115-06243 | ||||
| 90119-08737 | ||||
| 90159-60431 | ||||
| 90189-05054 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90333-35002 | ||||
| 90950-01866 | ||||
| 90950-01872 | ||||
| 90950-01955 | ||||
| 90950-01956 | ||||
| 90950-01958 | ||||
| 90950-01959 | ||||
| 90950-01960 | ||||
| 91511-C0818 | ||||
| Linked diagrams | ||||
| 5305 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
