NCP30-DHSNK (2000)
Toyota Bb/Open Deck
ILLUST NO. 1 OF 6(0001- )
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NCP3# |
1 | ||
| 83530-60020 |
NCP3# YAZAKI |
1 | ||
| 83530-28020 |
NCP3# |
1 | ||
| 83530-28020 |
NCP3# DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52010 |
NCP30 |
1 | ||
| 84540-52010 |
NCP30 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20810 |
NCP30,31,34 |
1 | ||
| 89465-52040 |
NCP30 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20810 |
NCP30,31,34 |
1 | ||
| 89465-52040 |
NCP30 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-20810 |
NCP30,31,34 |
1 | ||
| 89465-52040 |
NCP30 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52040 |
NCP3# TOYOTA |
1 | ||
| 89615-52030 |
NCP3# DENSO |
1 | ||
| 89615-22050 |
NCP30 DENSO |
1 | ||
| 89615-52030 |
NCP3# |
1 | ||
| 89615-52010 |
NCP30 MATSUSHITA |
1 | ||
| 89615-52030 |
NCP3# DENSO |
1 | ||
| 89615-52040 |
NCP3# TOYOTA |
1 | ||
| Common parts | ||||
| 82715-52830 | ||||
| 82715-52840 | ||||
| 82715-5C020 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||

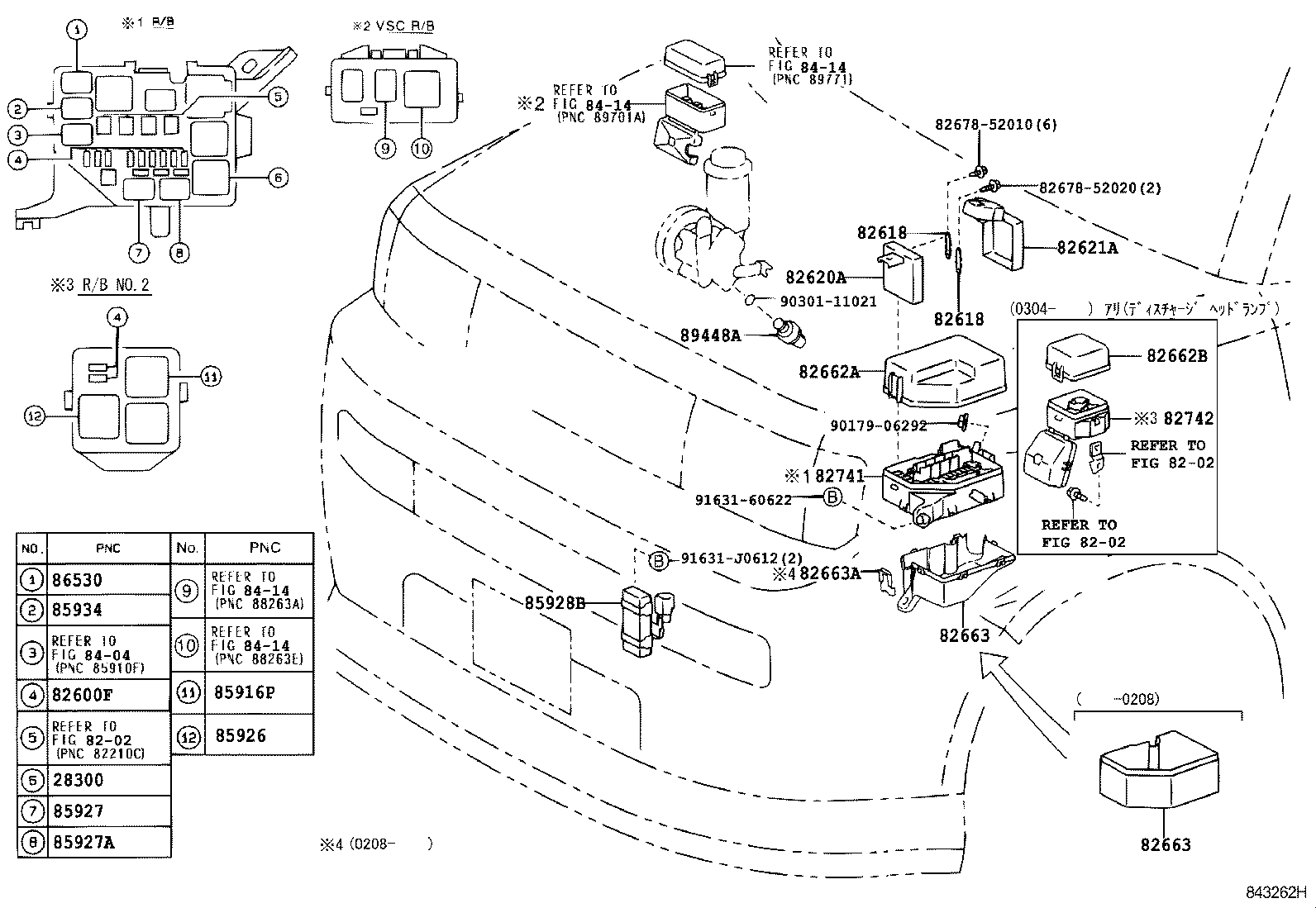

ILLUST NO. 2 OF 6(0001- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1NZFE,2NZFE..NCP3# |
1 | ||
| 28300-10020 |
1NZFE,2NZFE..NCP3# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09012 |
NCP3# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
NCP3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
NCP3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09011 |
NCP3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
NCP3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
NCP3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
NCP3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
NCP3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09009 |
NCP3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
NCP3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09012 |
NCP3# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09008 |
NCP3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82618 - FUSE, FUSE BLOCK | ||||
| 82618-52010 |
NCP3# 60A |
2 | ||
| 82618-52020 |
NCP3# 100A |
1 | ||
| 82618-52020 |
NCP3# 100A |
1 | ||
| 82618-52030 |
NCP3# 120A |
1 | ||
| 82618-52010 |
NCP3# 60A |
2 | ||
| 82618 - FUSE, FUSE BLOCK | ||||
| 82618-52010 |
NCP3# 60A |
2 | ||
| 82618-52020 |
NCP3# 100A |
1 | ||
| 82618-52020 |
NCP3# 100A |
1 | ||
| 82618-52030 |
NCP3# 120A |
1 | ||
| 82618-52010 |
NCP3# 60A |
2 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52010 |
NCP3# |
1 | ||
| 82620-52011 |
NCP3# |
1 | ||
| 82620-52010 |
NCP3# |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52010 |
NCP3# |
1 | ||
| 82621-52011 |
NCP3# |
1 | ||
| 82621-52080 |
NCP3# |
1 | ||
| 82621-52010 |
NCP3# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52180 |
NCP3# |
1 | ||
| 82662-52010 |
NCP3# |
1 | ||
| 82662-52010 |
NCP3# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52051 |
NCP3# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52040 |
NCP3# |
1 | ||
| 82663-52010 |
NCP3# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52040 |
NCP3# |
1 | ||
| 82663-52010 |
NCP3# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52050 |
NCP3# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52010 |
NCP3# |
1 | ||
| 82741-52010 |
NCP3# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-52010 |
NCP3# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NCP3# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
NCP3# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02022 |
NCP3# |
1 | ||
| 90987-02027 |
NCP3# |
1 | ||
| 90987-02012 |
NCP3# |
1 | ||
| 90987-02022 |
NCP3# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NCP3# |
1 | ||
| 90987-04004 |
NCP3# |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52010 |
NCP3# |
1 | ||
| 85928-52010 |
NCP3# |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02022 |
NCP3# |
1 | ||
| 90987-02012 |
NCP3# |
1 | ||
| 90987-02028 |
NCP3# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
NCP3# |
1 | ||
| 90987-02027 |
NCP3# |
1 | ||
| 90987-02022 |
NCP3# |
1 | ||
| 90987-02022 |
NCP3# |
1 | ||
| 89448A - SENSOR, POWER STEERING OIL PRESSURE | ||||
| 89448-51010 |
NCP3# |
1 | ||
| 89448-51010 |
NCP3# |
1 | ||
| Common parts | ||||
| 82678-52010 | ||||
| 82678-52020 | ||||
| 90179-06292 | ||||
| 90301-11021 | ||||
| 91631-60622 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||

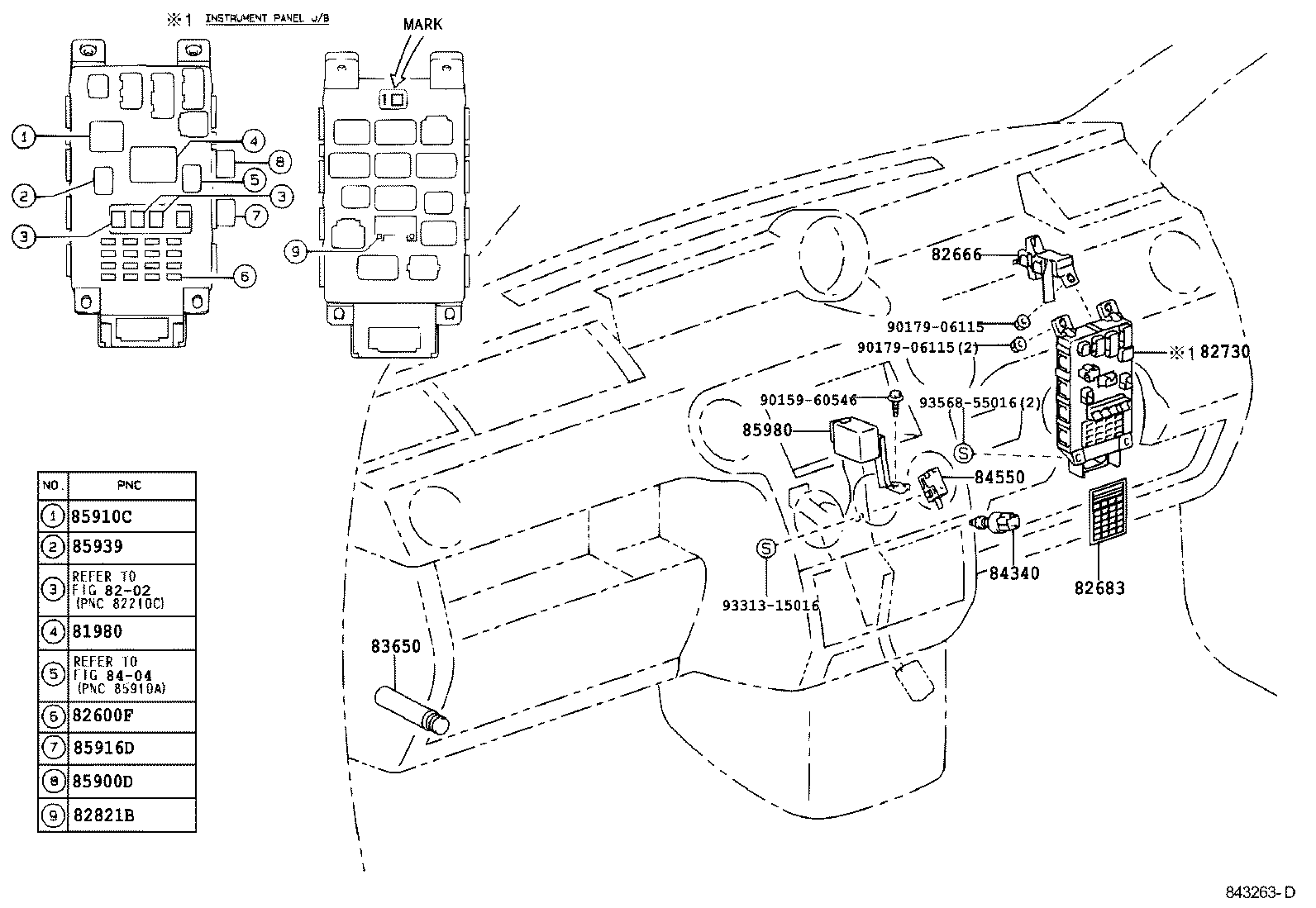

ILLUST NO. 3 OF 6(0001- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
NCP3# |
1 | ||
| 81980-50030 |
NCP3# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09012 |
NCP3# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09010 |
NCP3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
NCP3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09011 |
NCP3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
NCP3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
NCP3# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
NCP3# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09009 |
NCP3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09009 |
NCP3# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
NCP3# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09012 |
NCP3# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09008 |
NCP3# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-52010 |
NCP3# |
1 | ||
| 82666-52010 |
NCP3# |
1 | ||
| 82683 - PLATE, FUSE BLOCK CAUTION | ||||
| 82683-52031 |
NCP3# |
1 | ||
| 82683-52030 |
NCP3# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82732-52010 |
NCP3# MARK 1:ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 82732-52010 |
NCP3# MARK 1:ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 82732-52020 |
NCP30 MARK 2:ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52020 |
NCP30 |
1 | ||
| 82821-52020 |
NCP3# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
NCP3# |
1 | ||
| 90986-01005 |
NCP3# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
NCP3# |
1 | ||
| 84340-47010 |
NCP3# MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NCP3# |
1 | ||
| 84550-30080 |
NCP3# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04006 |
NCP3# |
1 | ||
| 90987-04010 |
NCP3# |
1 | ||
| 90987-04006 |
NCP3# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
NCP3# |
1 | ||
| 90987-02012 |
NCP3# |
1 | ||
| 90987-02012 |
NCP3# |
1 | ||
| 90987-02020 |
NCP3# |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02027 |
NCP3# |
1 | ||
| 90987-02012 |
NCP3# |
1 | ||
| 90987-02012 |
NCP3# |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-52250 |
NCP3# |
1 | ||
| 85980-52100 |
NCP30,31,35 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 85980-52100 |
NCP30,31,35 ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 85980-52010 |
NCP30,31,35 |
1 | ||
| 85980-52010 |
NCP30,31,35 |
1 | ||
| Common parts | ||||
| 90159-60546 | ||||
| 90179-06115 | ||||
| 93313-15016 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||

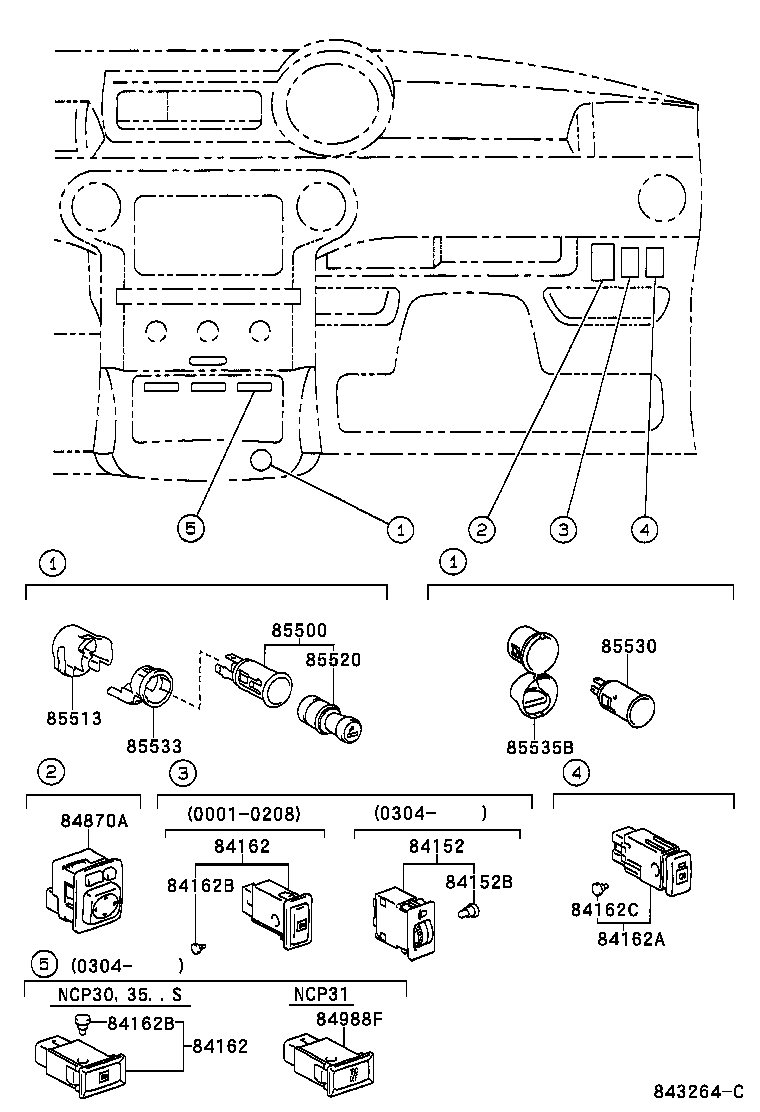

ILLUST NO. 4 OF 6(0001- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-20040 |
NCP3# |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08100 |
NCP3# 14V 40MA,ｸﾞﾘｰﾝ |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-52030 |
NCP3# |
1 | ||
| 84160-60050 |
NCP30,35..S |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-52030 |
NCP3# |
1 | ||
| 84160-60050 |
NCP30,35..S |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-52010 |
NCP3# |
1 | ||
| 84165-52010 |
NCP3# |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10320 |
NCP3# 14V 0.84W |
1 | ||
| 84999-10320 |
NCP30,35..S 14V 0.84W |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10320 |
NCP3# 14V 0.84W |
1 | ||
| 84999-10320 |
NCP30,35..S 14V 0.84W |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-09009 |
NCP3# 14V 40MA |
1 | ||
| 90010-09009 |
NCP3# 14V 40MA |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
NCP30,31,35 |
1 | ||
| 84870-28020 |
NCP30,31,35 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-) |
1 | ||
| 84870-34010 |
NCP30,31,35 |
1 | ||
| 84870-28020 |
NCP30,31,35 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ﾘﾓｺﾝ ﾐﾗ-) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
NCP3# |
1 | ||
| 85500-28050 |
NCP3# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
NCP3# |
1 | ||
| 85513-28010 |
NCP3# |
1 | ||
| 85513-12020 |
NCP30,31,35 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
NCP3# |
1 | ||
| 85520-28010 |
NCP3# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
NCP3# |
1 | ||
| 85533-30060 |
NCP3# |
1 | ||

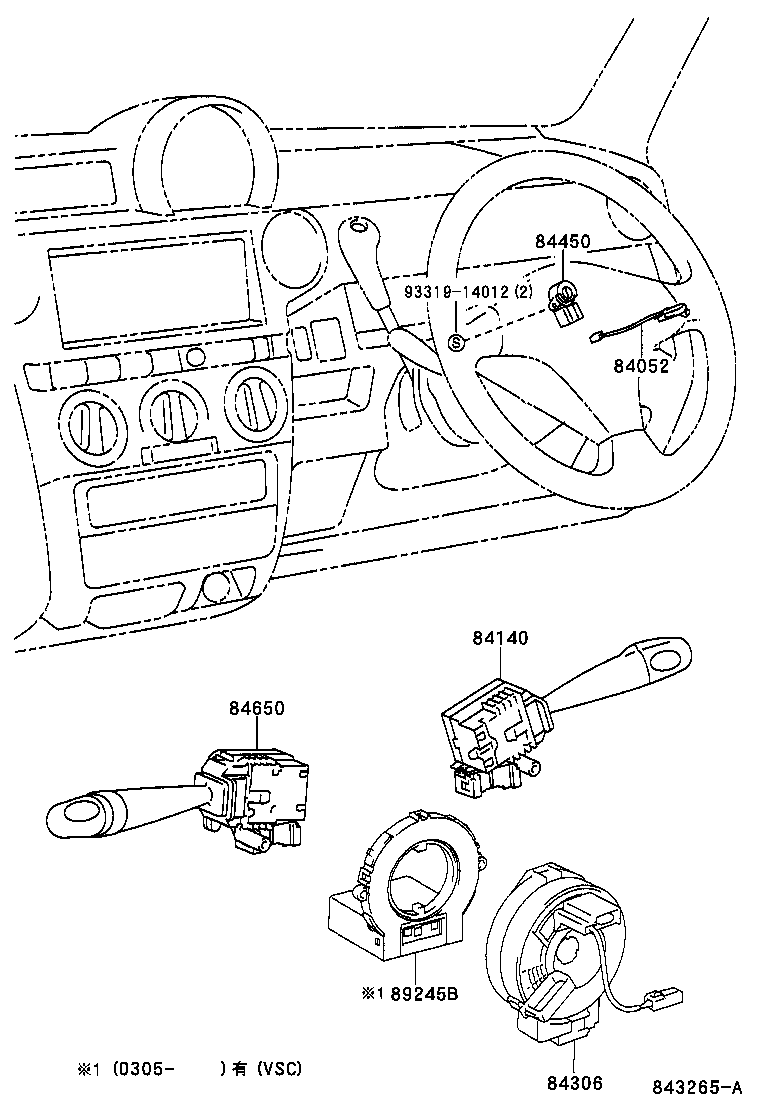

ILLUST NO. 5 OF 6(0001- )
ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-60010 |
NCP3# |
1 | ||
| 84052-60010 |
NCP3# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42020 |
NCP3# ｱﾘ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ ｽｲﾂﾁ) |
1 | ||
| 84140-52050 |
NCP3# ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
1 | ||
| 84140-52060 |
NCP3# ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ & ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84140-12510 |
NCP3# |
1 | ||
| 84140-52010 |
NCP3# |
1 | ||
| 84140-12510 |
NCP3# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52020 |
NCP3# |
1 | ||
| 84306-52041 |
NCP3# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
NCP3# |
1 | ||
| 84450-52010 |
NCP3# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52070 |
NCP30,31,35 |
1 | ||
| 84652-52090 |
NCP30,31,35 ｱﾘ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ) |
1 | ||
| 84652-52090 |
NCP30,31,35 ｱﾘ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ) |
1 | ||
| 84652-52070 |
NCP30,35..S |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||

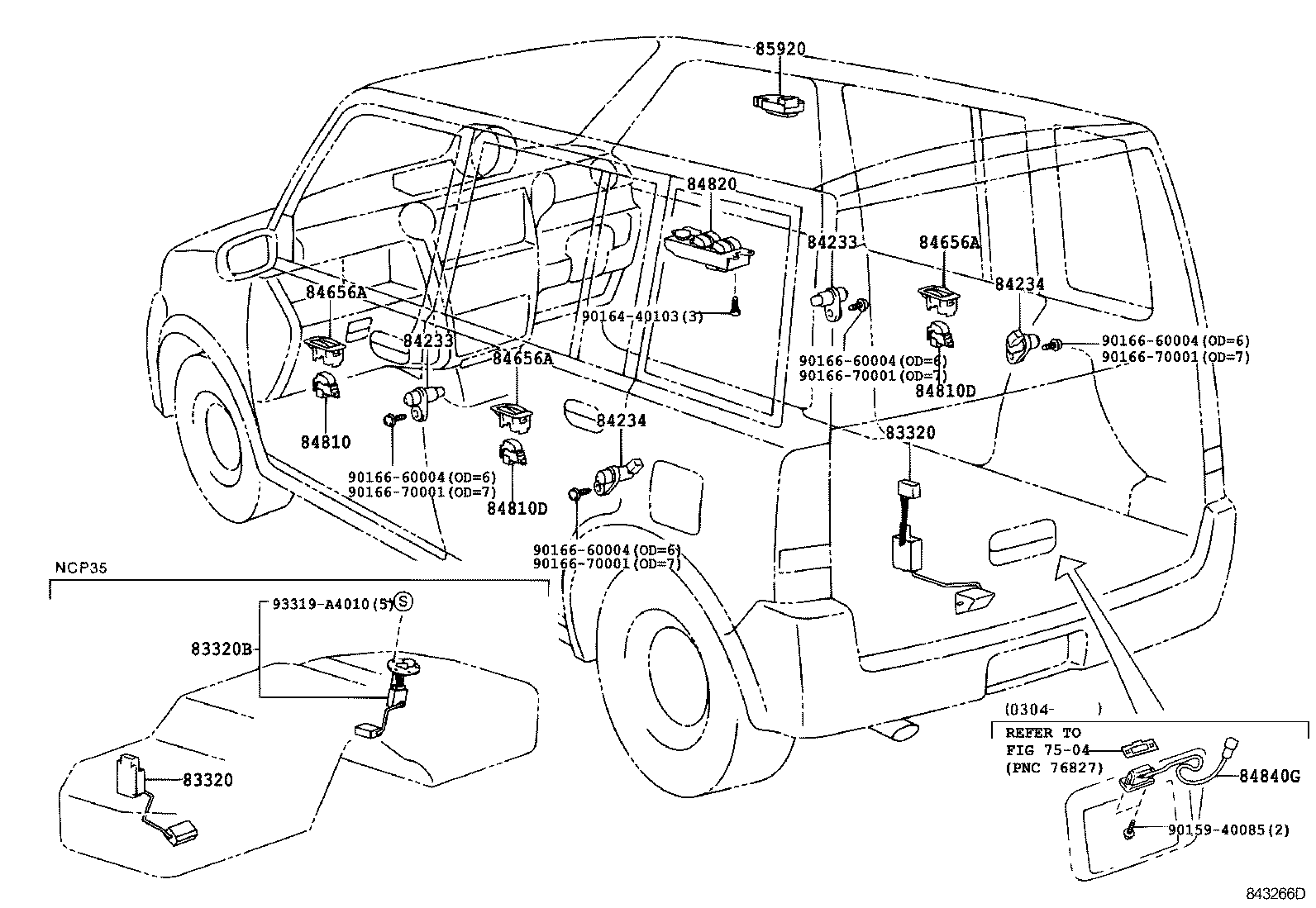

ILLUST NO. 6 OF 6(0001- )NCP30,31,35
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾗﾂｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52081 |
NCP30,31,34 |
1 | ||
| 83320-52081 |
NCP30,31,34 |
1 | ||
| 83320-52080 |
NCP30,31 |
1 | ||
| 83320-52061 |
NCP30,31 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52081 |
NCP30,31,34 |
1 | ||
| 83320-52081 |
NCP30,31,34 |
1 | ||
| 83320-52080 |
NCP30,31 |
1 | ||
| 83320-52061 |
NCP30,31 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP3# |
2 | ||
| 84231-52010 |
NCP3# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP3# |
2 | ||
| 84231-52010 |
NCP3# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP30,31,35 |
2 | ||
| 84231-52020 |
NCP30,31,35 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP30,31,35 |
2 | ||
| 84231-52020 |
NCP30,31,35 |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-32020B4 |
NCP30,31,35 DK.GRAY,TRIM92,93 |
3 | ||
| 84656-32020B4 |
NCP30,31,35 DK.GRAY,TRIM9# |
3 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-32020B4 |
NCP30,31,35 DK.GRAY,TRIM92,93 |
3 | ||
| 84656-32020B4 |
NCP30,31,35 DK.GRAY,TRIM9# |
3 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-32020B4 |
NCP30,31,35 DK.GRAY,TRIM92,93 |
3 | ||
| 84656-32020B4 |
NCP30,31,35 DK.GRAY,TRIM9# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
NCP30,31,35 |
1 | ||
| 84810-12080 |
NCP3# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
NCP30,31,35 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
NCP30,31,35 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-16070 |
NCP30,31,35 |
1 | ||
| 84820-52140 |
NCP30,31,35 |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-52010 |
NCP3# |
1 | ||
| 85920 - RELAY & SWITCH ASSY, SLIDING ROOF | ||||
| 85920-52020B0 |
NCP30,31,35 LT.GRAY,TRIM92,93 |
1 | ||
| 85920-52020B0 |
NCP30,31,35 LT.GRAY,TRIM9# |
1 | ||
| Common parts | ||||
| 90159-40085 | ||||
| 90164-40103 | ||||
| 90166-60004 | ||||
| 90166-70001 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 7504 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
