NCP30-DHSNK (2000)

Toyota Bb/Open Deck

Production Jan 2000 - Dec 2005
Engine 2NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0001- )NCP30,31

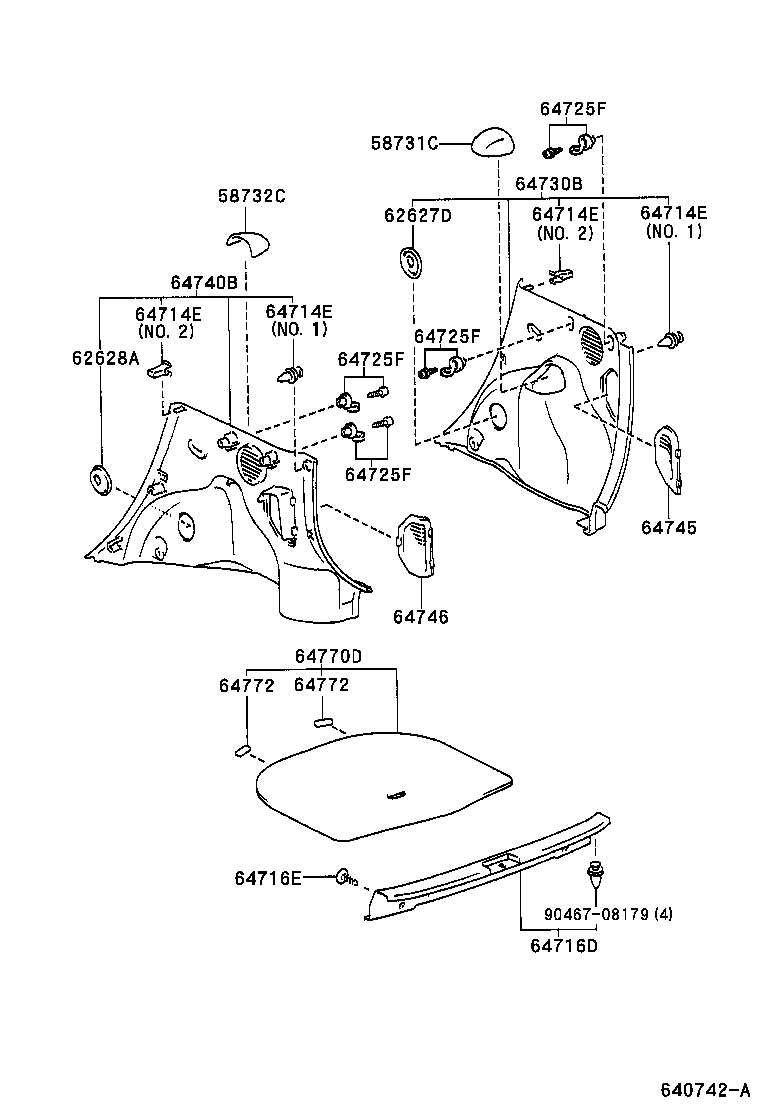

Click highlighted areas on diagram

diagram 58731C 58732C 62627D 62628A 64714E 64714E 64714E 64714E 64716D 64716E 64725F 64725F 64725F 64725F 64730B 64740B 64745 64746 64770D 64772 64772 9046708179
Part # Description Qty Price
58731C - CAP, REAR ABSORBER
58731-52010B1

NCP30,31

DK.GRAY,TRIM9#

 1
58731-52010B1

NCP30,31

DK.GRAY,TRIM92,93

 1
58732C - CAP, REAR ABSORBER
58732-52010B1

NCP30,31

DK.GRAY,TRIM9#

 1
58732-52010B1

NCP30,31

DK.GRAY,TRIM92,93

 1
62627D - COVER, SIDE TRIM, RH
62627-52010B1

NCP30,31

DK.GRAY,TRIM92,93

 1
62628A - COVER, SIDE TRIM, LH
62628-52010B1

NCP30,31

DK.GRAY,TRIM92,93

 1
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-10161

NCP30,31,35

NO.1

 8
90467-10161

NCP30,31,35

NO.1

 8
90467-12080

NCP30,31,35

NO.2

 2
90467-12080

NCP30,31,35

NO.2

 2
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-10161

NCP30,31,35

NO.1

 8
90467-10161

NCP30,31,35

NO.1

 8
90467-12080

NCP30,31,35

NO.2

 2
90467-12080

NCP30,31,35

NO.2

 2
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-10161

NCP30,31,35

NO.1

 8
90467-10161

NCP30,31,35

NO.1

 8
90467-12080

NCP30,31,35

NO.2

 2
90467-12080

NCP30,31,35

NO.2

 2
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-10161

NCP30,31,35

NO.1

 8
90467-10161

NCP30,31,35

NO.1

 8
90467-12080

NCP30,31,35

NO.2

 2
90467-12080

NCP30,31,35

NO.2

 2
64716D - COVER, DECK TRIM, REAR
64716-52030B0

NCP30,31

DK.GRAY,TRIM9#

 1
64716-52030B0

NCP30,31

DK.GRAY,TRIM92,93

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-06114B0

NCP30,31

DK.GRAY,TRIM9#

 2
90467-06114B0

NCP30,31

DK.GRAY,TRIM92,93

 2
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-52010B1

NCP30,31,35

DK.GRAY,TRIM92,93

 4
64725-52010B1

NCP30,31,35

DK.GRAY,TRIM9#

 4
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-52010B1

NCP30,31,35

DK.GRAY,TRIM92,93

 4
64725-52010B1

NCP30,31,35

DK.GRAY,TRIM9#

 4
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-52010B1

NCP30,31,35

DK.GRAY,TRIM92,93

 4
64725-52010B1

NCP30,31,35

DK.GRAY,TRIM9#

 4
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-52010B1

NCP30,31,35

DK.GRAY,TRIM92,93

 4
64725-52010B1

NCP30,31,35

DK.GRAY,TRIM9#

 4
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-52190B0

NCP30,31

ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ),DK.GRAY,TRIM92,93

 1
64730-52180B0

NCP30,31

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),DK.GRAY,TRIM92,93

 1
64730-52180B0

NCP30,31

DK.GRAY,TRIM9#

 1
64740B - BOARD, DECK TRIM SIDE, LH
64740-52180B0

NCP30,31

ｱﾘ(ﾘﾔ ｽﾗｲﾄﾞ ｼ-ﾄ),DK.GRAY,TRIM92,93

 1
64740-52190B0

NCP30,31

ｱﾘ(ﾘﾔ ｺﾃｲｼｷ ｼ-ﾄ),DK.GRAY,TRIM92,93

 1
64740-52180B0

NCP30,31

DK.GRAY,TRIM9#

 1
64745 - COVER, REAR COMBINATION LAMP SERVICE, RH
64745-52030B0

NCP30,31,35

DK.GRAY,TRIM92,93

 1
64745-52030B0

NCP30,31,35

DK.GRAY,TRIM9#

 1
64746 - COVER, REAR COMBINATION LAMP SERVICE, LH
64746-52030B0

NCP30,31,35

DK.GRAY,TRIM9#

 1
64746-52030B0

NCP30,31,35

DK.GRAY,TRIM92,93

 1
64770D - COVER ASSY, SPARE WHEEL
64770-52021

NCP30,31

 1
64770-52020

NCP30,31

 1
64770-52020

NCP30,31

 1
64772 - PAD, SPARE WHEEL COVER
64772-16100

NCP30,31

 2
64772-16100

NCP30,31

 2
64772 - PAD, SPARE WHEEL COVER
64772-16100

NCP30,31

 2
64772-16100

NCP30,31

 2
Common parts
90467-08179
