NCP30-DHSNK (2000)
Toyota Bb/Open Deck

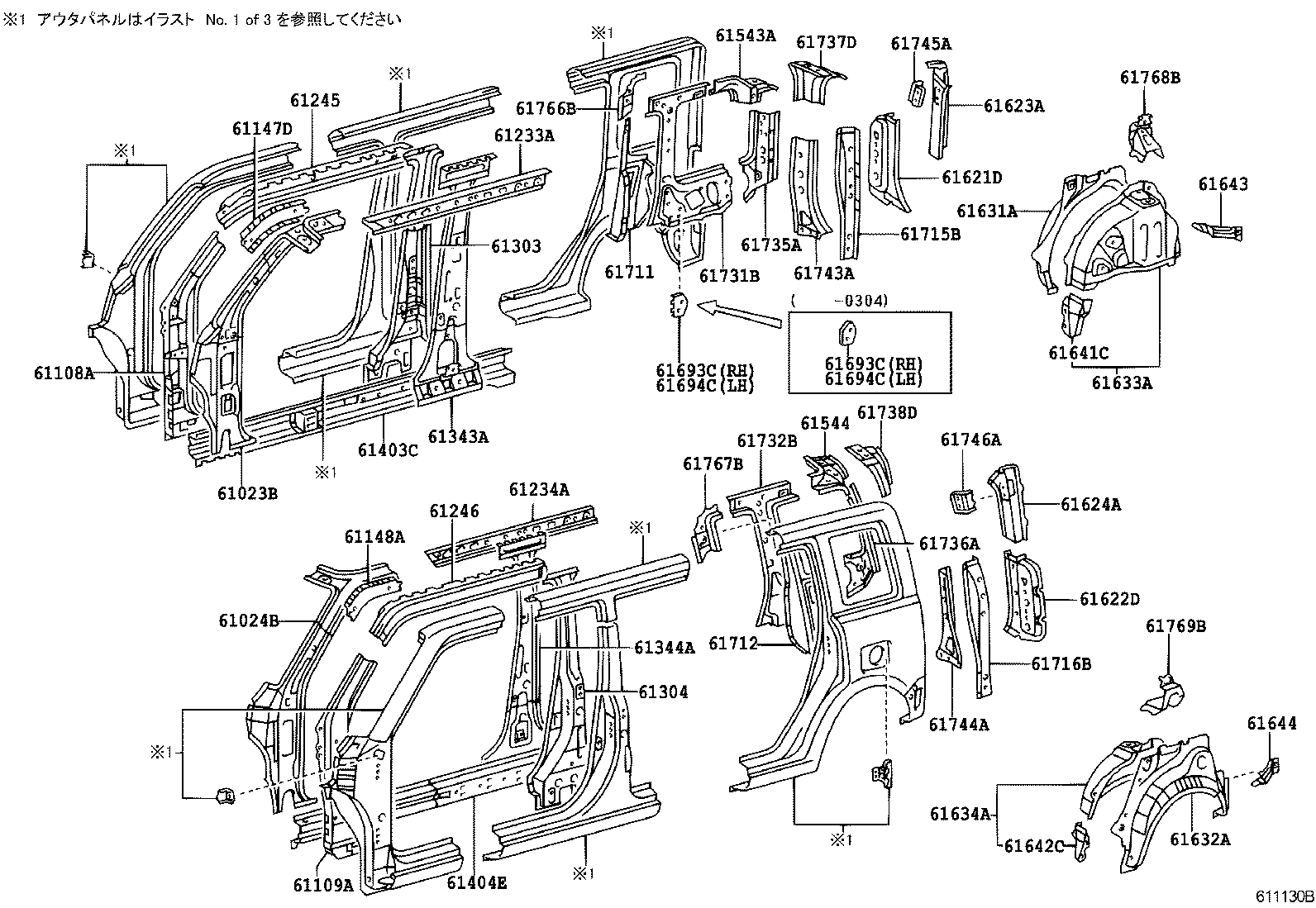

ILLUST NO. 2 OF 3(0001- )NCP30,31,35
ｲﾝﾅﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52030 |
NCP30,31,35 |
1 | ||
| 61023-52030 |
NCP30,31,35 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52030 |
NCP30,31,35 |
1 | ||
| 61024-52030 |
NCP30,31,35 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-52030 |
NCP3# |
1 | ||
| 61108-52031 |
NCP30,31,35 |
1 | ||
| 61108-52031 |
NCP3# |
1 | ||
| 61108-52031 |
NCP3# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-52030 |
NCP3# |
1 | ||
| 61109-52031 |
NCP30,31,35 |
1 | ||
| 61109-52031 |
NCP3# |
1 | ||
| 61109-52031 |
NCP3# |
1 | ||
| 61147D - EXTENSION, FRONT BODY PILLAR, UPPER OUTER RH | ||||
| 61147-52010 |
NCP3# |
1 | ||
| 61147-52010 |
NCP30,31,35 |
1 | ||
| 61147-52010 |
NCP3# |
1 | ||
| 61148A - EXTENSION, FRONT BODY PILLAR, UPPER OUTER LH | ||||
| 61148-52010 |
NCP3# |
1 | ||
| 61148-52010 |
NCP30,31,35 |
1 | ||
| 61148-52010 |
NCP3# |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-52050 |
NCP30,31,35 |
1 | ||
| 61233-52050 |
NCP30,31,35 |
1 | ||
| 61233-52051 |
NCP3# |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-52050 |
NCP30,31,35 |
1 | ||
| 61234-52050 |
NCP30,31,35 |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-52020 |
NCP3# |
1 | ||
| 61245-52020 |
NCP3# |
1 | ||
| 61245-52020 |
NCP30,31,35 |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-52020 |
NCP30,31,35 |
1 | ||
| 61246-52020 |
NCP30,31,35 |
1 | ||
| 61246-52020 |
NCP3# |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-52902 |
NCP30,31,35 |
1 | ||
| 61303-52902 |
NCP30,31,35 |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-52902 |
NCP3# |
1 | ||
| 61304-52902 |
NCP30,31,35 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61307-52901 |
NCP3# |
1 | ||
| 61307-52901 |
NCP3# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61308-52901 |
NCP30,31,35 |
1 | ||
| 61308-52901 |
NCP30,31,35 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52040 |
NCP30,31,35 |
1 | ||
| 61403-52041 |
NCP3# |
1 | ||
| 61403-52040 |
NCP30,31,35 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-52040 |
NCP30,31,35 |
1 | ||
| 61404-52040 |
NCP30,31,35 |
1 | ||
| 61404-52041 |
NCP3# |
1 | ||
| 61543A - PANEL, REAR UPPER SIDE INNER CORNER, RH | ||||
| 61543-52010 |
NCP30,31,35 |
1 | ||
| 61543-52010 |
NCP30,31,35 |
1 | ||
| 61544 - PANEL, REAR UPPER SIDE INNER CORNER, LH | ||||
| 61544-52010 |
NCP30,31,35 |
1 | ||
| 61544-52010 |
NCP30,31,35 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-52030 |
NCP30,31,35 |
1 | ||
| 61621-52030 |
NCP30,31,35 |
1 | ||
| 61621-52030 |
NCP3# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-52030 |
NCP30,31,35 |
1 | ||
| 61622-52030 |
NCP30,31,35 |
1 | ||
| 61622-52030 |
NCP3# |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-52020 |
NCP30,31,35 |
1 | ||
| 61623-52020 |
NCP3# |
1 | ||
| 61623-52020 |
NCP30,31,35 |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-52020 |
NCP3# |
1 | ||
| 61624-52020 |
NCP30,31,35 |
1 | ||
| 61624-52020 |
NCP30,31,35 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52030 |
NCP30,31,35 |
1 | ||
| 61631-52030 |
NCP30,31,35 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52030 |
NCP30,31,35 |
1 | ||
| 61632-52030 |
NCP30,31,35 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52904 |
NCP30,31 ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61607-52904 |
NCP30,31 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-52904 |
NCP30,31 |
1 | ||
| 61608-52904 |
NCP30,31 ｱﾘ(6:4 ﾌﾞﾝｶﾂ ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-52010 |
NCP30,31,34 |
1 | ||
| 61641-52010 |
NCP30,31,34 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-52010 |
NCP30,31,34 |
1 | ||
| 61642-52010 |
NCP30,31,34 |
1 | ||
| 61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH | ||||
| 61643-52020 |
NCP30,31,35 |
1 | ||
| 61643-52020 |
NCP30,31,35 |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 61644-52020 |
NCP30,31,35 |
1 | ||
| 61644-52020 |
NCP30,31,35 |
1 | ||
| 61693C - RETAINER, REAR SEAT BACK SET, RH | ||||
| 61693-52040 |
NCP30,31,35 |
1 | ||
| 61693C - RETAINER, REAR SEAT BACK SET, RH | ||||
| 61693-52040 |
NCP30,31,35 |
1 | ||
| 61694C - RETAINER, REAR SEAT BACK SET, LH | ||||
| 61694-52030 |
NCP30,31,35 |
1 | ||
| 61694C - RETAINER, REAR SEAT BACK SET, LH | ||||
| 61694-52030 |
NCP30,31,35 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-52040 |
NCP30,31,35 |
1 | ||
| 61711-52040 |
NCP30,31,35 |
1 | ||
| 61711-52041 |
NCP3# |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-52041 |
NCP3# |
1 | ||
| 61712-52040 |
NCP30,31,35 |
1 | ||
| 61712-52040 |
NCP30,31,35 |
1 | ||
| 61715B - EXTENSION, ROOF SIDE, INNER FRONT RH | ||||
| 61715-52020 |
NCP30,31,35 |
1 | ||
| 61715-52020 |
NCP30,31,35 |
1 | ||
| 61716B - EXTENSION, ROOF SIDE, INNER FRONT LH | ||||
| 61716-52020 |
NCP30,31,35 |
1 | ||
| 61716-52020 |
NCP30,31,35 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-52060 |
NCP30,31,35 |
1 | ||
| 61731-52060 |
NCP30,31,35 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-52060 |
NCP30,31,35 |
1 | ||
| 61732-52060 |
NCP30,31,35 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-52020 |
NCP30,31,35 |
1 | ||
| 61735-52020 |
NCP30,31,35 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-52020 |
NCP30,31,35 |
1 | ||
| 61736-52020 |
NCP30,31,35 |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-52020 |
NCP30,31,35 |
1 | ||
| 61737-52020 |
NCP30,31,35 |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-52020 |
NCP30,31,35 |
1 | ||
| 61738-52020 |
NCP30,31,35 |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-52020 |
NCP30,31,35 |
1 | ||
| 61743-52020 |
NCP30,31,35 |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-52020 |
NCP30,31,35 |
1 | ||
| 61744-52020 |
NCP30,31,35 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-52020 |
NCP30,31,35 |
1 | ||
| 61745-52020 |
NCP3# |
1 | ||
| 61745-52020 |
NCP30,31,35 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-52020 |
NCP30,31,35 |
1 | ||
| 61746-52020 |
NCP3# |
1 | ||
| 61746-52020 |
NCP30,31,35 |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-52030 |
NCP30,31,35 |
1 | ||
| 61766-52030 |
NCP30,31,35 |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-52030 |
NCP30,31,35 |
1 | ||
| 61767-52030 |
NCP30,31,35 |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-52071 |
NCP30,31 |
1 | ||
| 61768-52070 |
NCP30,31 |
1 | ||
| 61768-52070 |
NCP30,31 |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-52070 |
NCP30,31 |
1 | ||
| 61769-52070 |
NCP30,31 |
1 | ||
| 61769-52071 |
NCP30,31 |
1 | ||

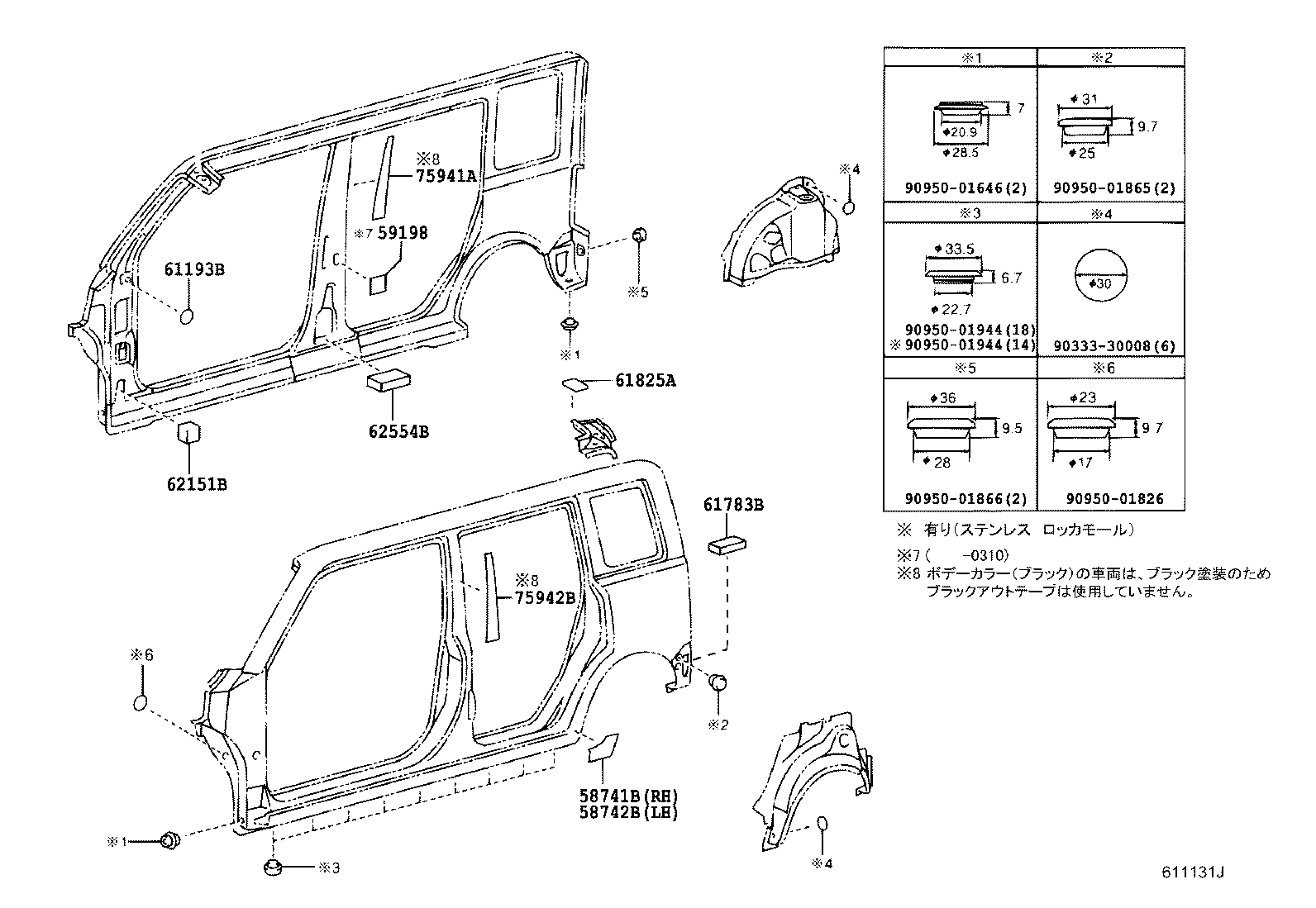

ILLUST NO. 3 OF 3(0001- )NCP30,31,35
ﾌﾟﾗｸﾞﾎｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52030 |
NCP30,31,35 |
1 | ||
| 58741-52030 |
NCP30,31,35 |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52030 |
NCP30,31,35 |
1 | ||
| 58742-52030 |
NCP30,31,35 |
1 | ||
| 59198 - SEAL, NOISE SHUTTER | ||||
| 59198-12010 |
NCP30,31,35 |
2 | ||
| 59198-12010 |
NCP30,31,35 |
2 | ||
| 61193B - COVER, FRONT PILLAR SERVICE HOLE | ||||
| 61193-10010 |
NCP3# |
2 | ||
| 61824-52040 |
NCP30,31,35 |
2 | ||
| 61824-50020 |
NCP3# |
2 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-52030 |
NCP30,31,35 |
2 | ||
| 61783-52030 |
NCP30,31,35 |
2 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-52010 |
NCP30,31,35 |
2 | ||
| 61825-52040 |
NCP30,31,35 |
2 | ||
| 61825-52010 |
NCP30,31,35 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52010 |
NCP3# |
2 | ||
| 62151-52010 |
NCP3# |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-52010 |
NCP30,31,35 |
2 | ||
| 62554-52010 |
NCP30,31,35 |
2 | ||
| 75941A - STRIPE, CENTER PILLAR, RH | ||||
| 75941-52020 |
NCP30,31,35 |
1 | ||
| 75941-52020 |
NCP30,31,35 |
1 | ||
| 75942B - STRIPE, CENTER PILLAR, LH | ||||
| 75941-52020 |
NCP30,31,35 |
1 | ||
| 75941-52020 |
NCP30,31,35 |
1 | ||
| Common parts | ||||
| 90333-30008 | ||||
| 90950-01646 | ||||
| 90950-01826 | ||||
| 90950-01865 | ||||
| 90950-01866 | ||||
| 90950-01944 | ||||

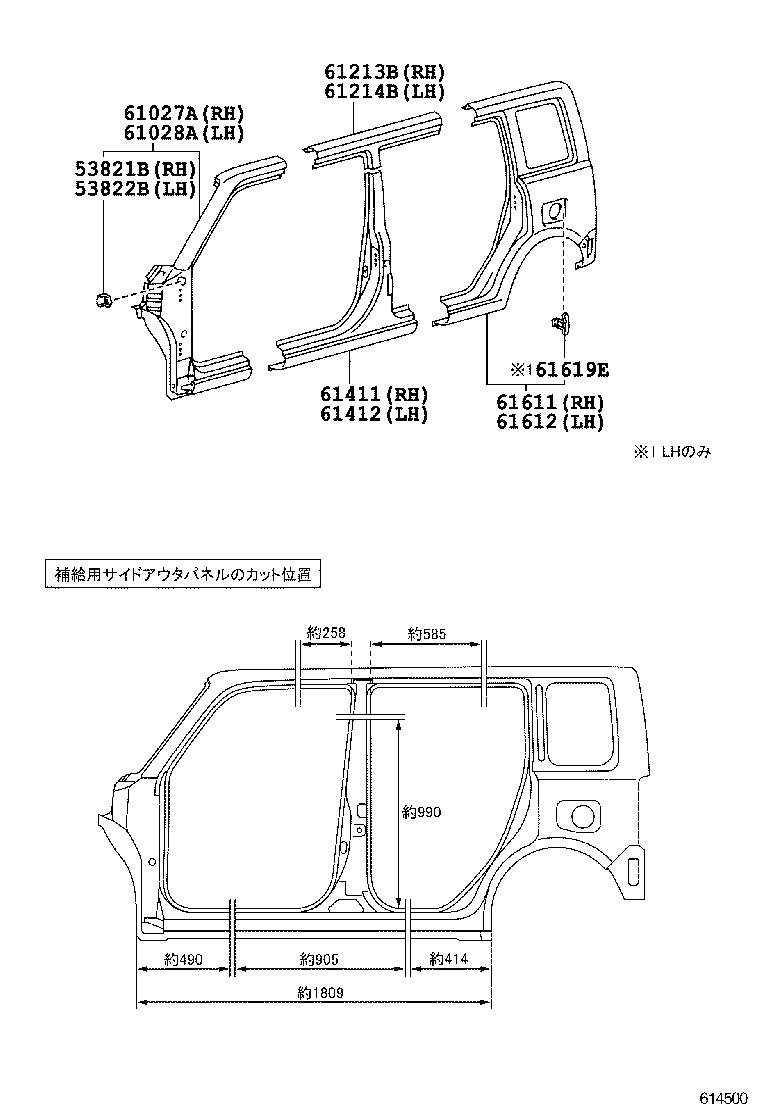

ILLUST NO. 1 OF 3(0001- )NCP30,31,35
ｱｳﾀﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-16010 |
NCP3# |
1 | ||
| 53821-16010 |
NCP3# |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
NCP3# |
1 | ||
| 53821-16010 |
NCP3# |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-52020 |
NCP30,31,35 |
1 | ||
| 61027-52030 |
NCP30,31,35 ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61027-52030 |
NCP30,31,35 ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61027-52020 |
NCP30,31,35 |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-52031 |
NCP3# ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61028-52030 |
NCP30,31,35 ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61028-52021 |
NCP30,31,35 |
1 | ||
| 61028-52030 |
NCP30,31,35 ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61028-52020 |
NCP30,31,35 |
1 | ||
| 61028-52020 |
NCP30,31,35 |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-52040 |
NCP30,31,35 |
1 | ||
| 61213-52040 |
NCP30,31,35 |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-52040 |
NCP30,31,35 |
1 | ||
| 61214-52040 |
NCP30,31,35 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-52090 |
NCP30,31,35 |
1 | ||
| 61411-52100 |
NCP30,31,35 ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61411-52100 |
NCP30,31,35 ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61411-52090 |
NCP30,31,35 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-52090 |
NCP30,31,35 |
1 | ||
| 61412-52100 |
NCP30,31,35 ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61412-52090 |
NCP30,31,35 |
1 | ||
| 61412-52100 |
NCP30,31,35 ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-52110 |
NCP30,31,35 ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61601-52110 |
NCP30,31,35 ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61601-52100 |
NCP30,31,35 |
1 | ||
| 61601-52100 |
NCP30,31,35 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52110 |
NCP30,31,35 |
1 | ||
| 61602-52110 |
NCP30,31,35 |
1 | ||
| 61602-52120 |
NCP30,31,35 ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61602-52120 |
NCP30,31,35 ｱﾘ(ｻｲﾄﾞ ﾏﾂﾄﾞｶﾞ-ﾄﾞ) |
1 | ||
| 61619E - REINFORCEMENT, QUARTER PANEL | ||||
| 61619-52020 |
NCP3# |
1 | ||
| 61619-52020 |
NCP3# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
