NCP30-DHSNK (2000)

Toyota Bb/Open Deck

Production Jan 2000 - Dec 2005
Engine 2NZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0001- )1NZFE,2NZFE..NCP30,31,34

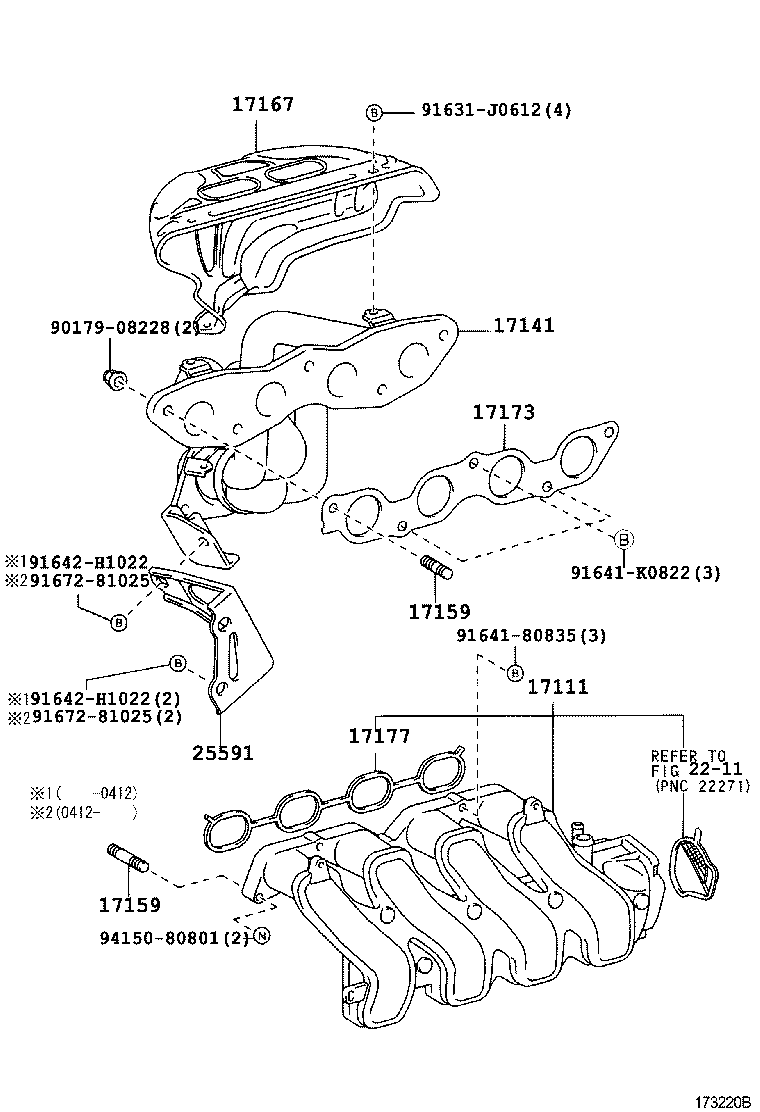

Click highlighted areas on diagram

diagram 17111 17141 17159 17159 17167 17173 17177 2211 25591 9017908228 91631J0612 9164180835 91641K0822 91642H1022 91642H1022 9167281025 9167281025 9415080801
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-21020

2NZFE..NCP30

 1
17120-21010

2NZFE..NCP30

 1
17101-21020

2NZFE..NCP30

 1
17141 - MANIFOLD, EXHAUST
17141-21030

2NZFE..NCP30

 1
17141-21100

2NZFE..NCP30

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1NZFE,2NZFE..NCP3#

ｲﾝﾃｰｸ側

 2
90126-08026

1NZFE,2NZFE..NCP3#

ｲﾝﾃｰｸ側

 2
90126-08037

1NZFE,2NZFE..NCP3#

ｴｷｿﾞｰｽﾄ側

 2
90126-08013

1NZFE,2NZFE..NCP3#

ｲﾝﾃｰｸ側

 2
90126-08037

1NZFE,2NZFE..NCP3#

ｴｷｿﾞｰｽﾄ側

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08026

1NZFE,2NZFE..NCP3#

ｲﾝﾃｰｸ側

 2
90126-08026

1NZFE,2NZFE..NCP3#

ｲﾝﾃｰｸ側

 2
90126-08037

1NZFE,2NZFE..NCP3#

ｴｷｿﾞｰｽﾄ側

 2
90126-08013

1NZFE,2NZFE..NCP3#

ｲﾝﾃｰｸ側

 2
90126-08037

1NZFE,2NZFE..NCP3#

ｴｷｿﾞｰｽﾄ側

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-21020

2NZFE..NCP30

 1
17167-21060

1NZFE,2NZFE..NCP30,31,34

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-21020

1NZFE,2NZFE..NCP3#

 1
17173-21020

1NZFE,2NZFE..NCP3#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-21020

1NZFE,2NZFE..NCP3#

 1
17177-21020

1NZFE,2NZFE..NCP3#

 1
25591 - BRACKET, MANIFOLD SUPPORT
25591-21020

1NZFE,2NZFE..NCP30,31,34

 1
25591-21020

1NZFE,2NZFE..NCP30,31,34

 1
Common parts
90179-08228
91631-J0612
91641-80835
91641-K0822
91642-H1022
91672-81025
94150-80801
Linked diagrams
2211
