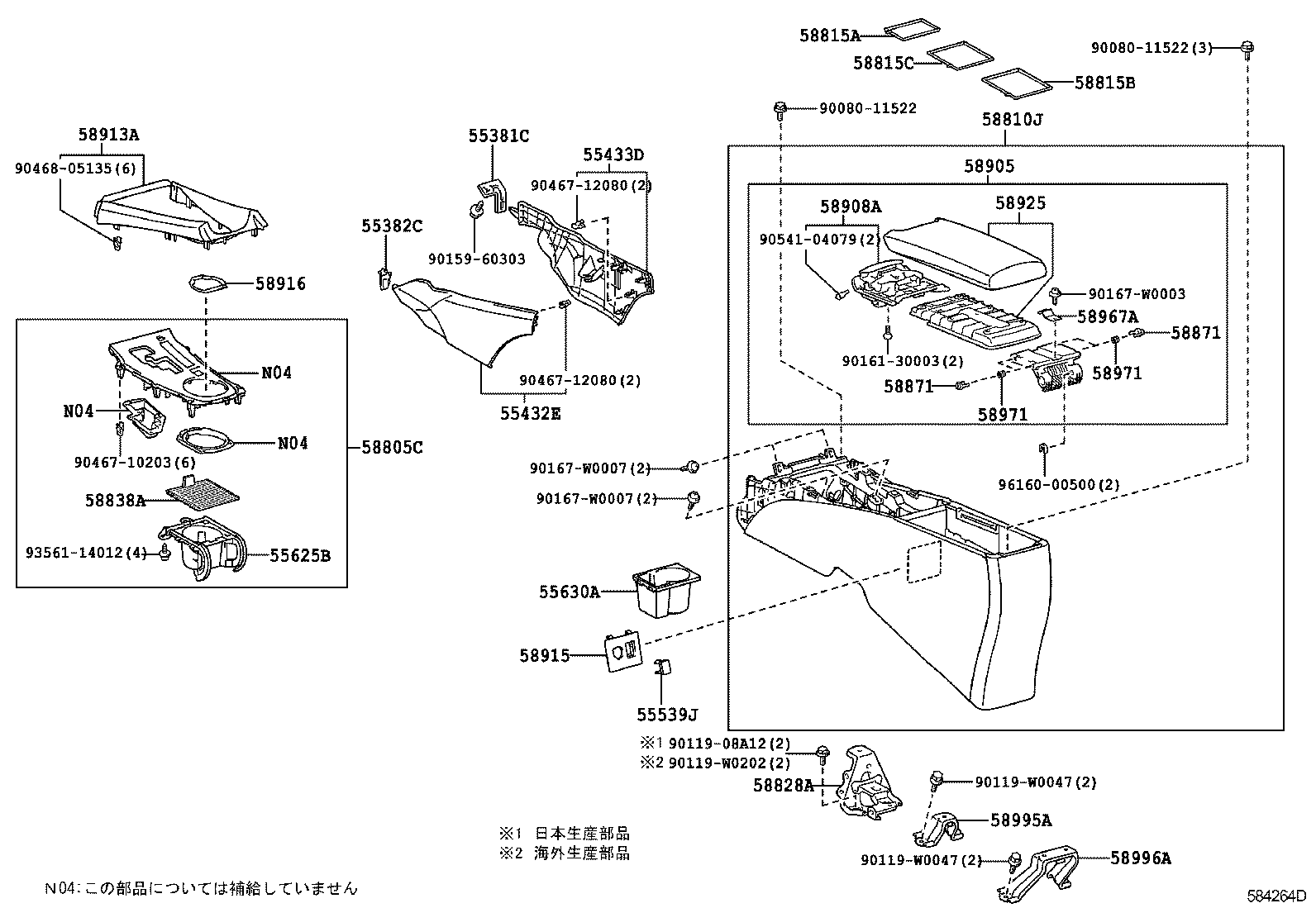

Toyota Avensis ZRT272 CONSOLE BOX & BRACKET

Part #	Description	Period	Qty
55381C - BRACKET, FINISH PANEL MOUNTING, NO.1
55381-02070	ZRT272	02/2012 - 05/2015	1
55381-02070	ZRT272	07/2011 - 11/2011	1
55382C - BRACKET, FINISH PANEL MOUNTING, NO.2
55382-02050	ZRT272	07/2011 - 11/2011	1
55382-02050	ZRT272	02/2012 - 05/2015	1
55432E - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1
55432-05060C0	ZRT272 BLACK,TRIM2#	07/2011 - 11/2011	1
55432-05060E0	ZRT272..LI GREGE,TRIM4#	02/2012 - 05/2015	1
55433D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-05020C0	ZRT272 BLACK,TRIM2#	07/2011 - 11/2011	1
55433-05020E0	ZRT272..LI GREGE,TRIM4#	02/2012 - 05/2015	1
55539J - COVER, SPARE SWITCH HOLE
55539-05100	ZRT272	07/2011 - 11/2011	1
55539-05100	ZRT272	02/2012 - 05/2015	1
55625B - TRAY, INSTRUMENT PANEL CUP HOLDER
55625-05020	ZRT272	07/2011 - 11/2011	1
55625-05020	ZRT272	02/2012 - 05/2015	1
55630A - HOLDER, REAR CONSOLE BOX, CUP
55630-05040C0	ZRT272 BLACK,TRIM2#	07/2011 - 11/2011	1
55630-05040C0	ZRT272..LI BLACK,TRIM4#	02/2012 - 05/2015	1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-05270	ZRT272..LI	02/2012 - 05/2015	1
58805-05110	ZRT272	07/2011 - 11/2011	1
58810J - BOX ASSY, CONSOLE
58810-0505021	ZRT272..LI BLACK,TRIM4#	02/2012 - 05/2015	1
58810-05030C0	ZRT272 BLACK,TRIM2#	07/2011 - 11/2011	1
58815A - CARPET, CONSOLE BOX
58815-05040	ZRT272	02/2012 - 05/2015	1
58815-05040	ZRT272	07/2011 - 11/2011	1
58815B - CARPET, CONSOLE BOX
58815-05050	ZRT272	02/2012 - 05/2015	1
58815-05050	ZRT272	07/2011 - 11/2011	1
58815C - CARPET, CONSOLE BOX
58815-05060	ZRT272	07/2011 - 11/2011	1
58815-05060	ZRT272	02/2012 - 05/2015	1
58828A - BRACKET, CONSOLE BOX, LOWER
89189-05010	ZRT272	02/2012 - 05/2015	1
89189-05010	ZRT272	07/2011 - 11/2011	1
58838A - DOOR, CONSOLE CUP HOLDER BOX
58838-05010	ZRT272	07/2011 - 11/2011	1
58838-05010	ZRT272	02/2012 - 05/2015	1
58871 - CUSHION, CONSOLE BOX
58871-30070	ZRT272	02/2012 - 05/2015	4
58871-30070	ZRT272	07/2011 - 11/2011	4
58871 - CUSHION, CONSOLE BOX
58871-30070	ZRT272	02/2012 - 05/2015	4
58871-30070	ZRT272	07/2011 - 11/2011	4
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-05090E2	ZRT272..LI BLACK,TRIM4#	02/2012 - 05/2015	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-05020C0	ZRT272 BLACK,TRIM2#	07/2011 - 11/2011	1
58908-05030B1	ZRT272..LI W. NICKEL,TRIM4#	02/2012 - 05/2015	1
58913A - PANEL, BOX, NO.3
58913-05012E0	ZRT272..LI GREGE,TRIM4#	02/2012 - 05/2015	1
58913-05012C0	ZRT272 BLACK,TRIM2#	07/2011 - 11/2011	1
58915 - PANEL, BOX BOTTOM
58915-05020C0	ZRT272 BLACK,TRIM2#	07/2011 - 11/2011	1
58915-05020C0	ZRT272..LI BLACK,TRIM4#	02/2012 - 05/2015	1
58916 - MAT, BOX BOTTOM
58916-05060	ZRT272	02/2012 - 05/2015	1
58916-05060	ZRT272	07/2011 - 11/2011	1
58925 - LID, REAR CONSOLE ARMREST
58925-05020E2	ZRT272..LI BLACK,TRIM4#	02/2012 - 05/2015	1
58925-05010C0	ZRT272 BLACK,TRIM2#	07/2011 - 11/2011	1
58967A - SPRING, CONSOLE DOOR STOPPER
58949-05010	ZRT272	07/2011 - 11/2011	1
58949-05010	ZRT272	02/2012 - 05/2015	1
58971 - LOCK, CONSOLE COMPARTMENT DOOR
58992-30050	ZRT272	07/2011 - 11/2011	4
58992-30050	ZRT272	02/2012 - 05/2015	4
58971 - LOCK, CONSOLE COMPARTMENT DOOR
58992-30050	ZRT272	07/2011 - 11/2011	4
58992-30050	ZRT272	02/2012 - 05/2015	4
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-05040	ZRT272	02/2012 - 05/2015	1
58995-05040	ZRT272	07/2011 - 11/2011	1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-05040	ZRT272	07/2011 - 11/2011	1
58996-05040	ZRT272	02/2012 - 05/2015	1
Common parts
90080-11522
90119-08A12
90119-W0047
90119-W0202
90159-60303
90161-30003
90167-W0003
90167-W0007
90467-10203
90467-12080
90468-05135
90541-04079
93561-14012
96160-00500

ZRT272W-AWXGP (2012)

(1202-1505)
