ZRT272W-AWXGP (2012)
Toyota Avensis

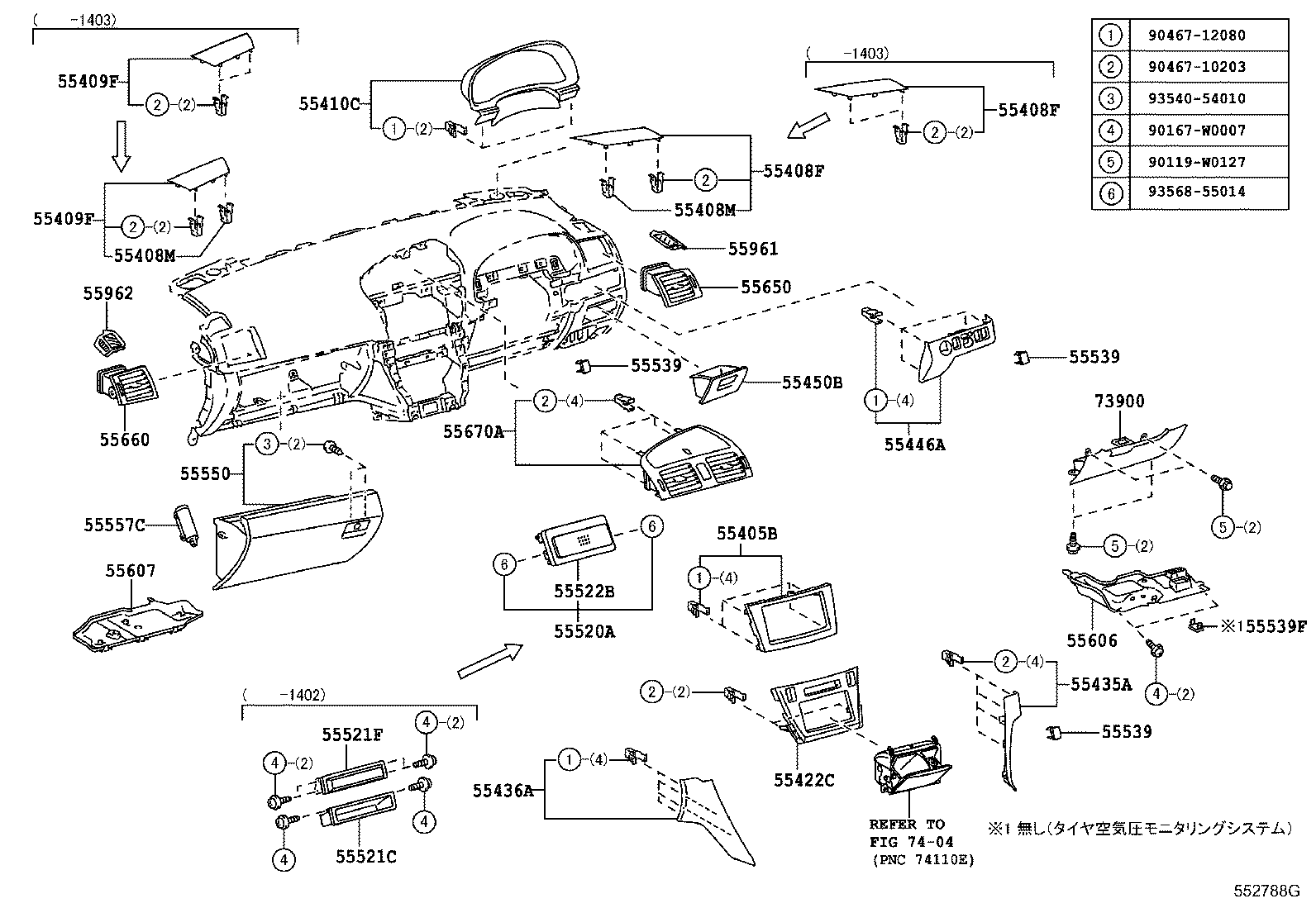

ILLUST NO. 2 OF 2(1202-1505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-05271 |
ZRT272..LI |
1 | ||
| 55405-05220 |
ZRT272 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-05010C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55472-05010C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55472-05011C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-05010C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55472-05010C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55472-05011C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55408M - CLIP(FOR INSTRUMENT PANEL SPEAKER PANEL) | ||||
| 90467-13082A0 |
ZRT272 MELLOW WHITE |
2 | ||
| 55408M - CLIP(FOR INSTRUMENT PANEL SPEAKER PANEL) | ||||
| 90467-13082A0 |
ZRT272 MELLOW WHITE |
2 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-05010C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55473-05011C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55473-05010C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-05010C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55473-05011C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55473-05010C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-05040C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55410-05040C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-05120 |
ZRT272..LI |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55436-05030C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55436-05030C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55435-05020C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55435-05020C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-05090C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55446-05090C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-05020C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55450-05020C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55520A - COVER ASSY, STEREO OPENING | ||||
| 55520-47020 |
ZRT272 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05040 |
ZRT272 |
1 | ||
| 55521-02070 |
ZRT272 |
1 | ||
| 55521-02070 |
ZRT272 |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-02090 |
ZRT272 |
1 | ||
| 55521-02090 |
ZRT272 |
1 | ||
| 55521-05050 |
ZRT272 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
ZRT272 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-05100 |
ZRT272 |
1 | ||
| 55539-05100 |
ZRT272 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-05100 |
ZRT272 |
1 | ||
| 55539-05100 |
ZRT272 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-05100 |
ZRT272 |
1 | ||
| 55539-05100 |
ZRT272 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
ZRT272 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-05101C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55550-05102C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55550-05101C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55557C - DAMPER, GLOVE COMPARTMENT DOOR | ||||
| 55557-33030 |
ZRT272 |
1 | ||
| 55054-47010 |
ZRT272 |
1 | ||
| 55557-33030 |
ZRT272 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-05060 |
ZRT272 |
1 | ||
| 55606-05060 |
ZRT272 |
1 | ||
| 55606-05080 |
ZRT272 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-05060 |
ZRT272 |
1 | ||
| 55607-05060 |
ZRT272 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-05150C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55650-05141C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55650-05141C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-05101C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55660-05101C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55660-05110C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-05191 |
ZRT272..LI |
1 | ||
| 55670-05140 |
ZRT272 |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-05050C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55961-05050C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-05050C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55962-05050C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-05040C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 73900-05041C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 73900-05040C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 93540-54010 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||

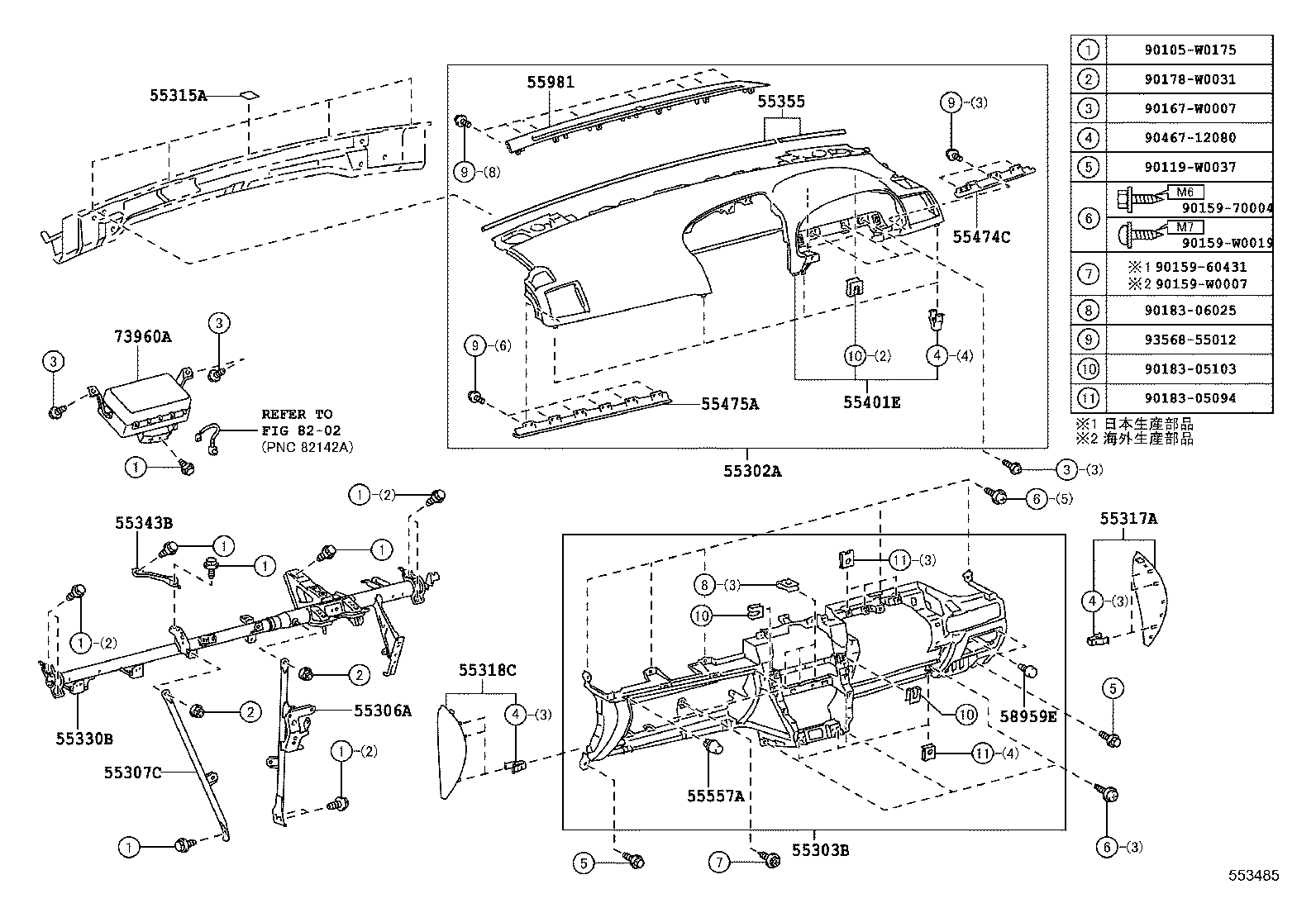

ILLUST NO. 1 OF 2(1503-1505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-05072C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55302-05071C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-05040C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55303-05040C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-05110 |
ZRT272 |
1 | ||
| 55306-05110 |
ZRT272 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-05040 |
ZRT272 |
1 | ||
| 55307-05040 |
ZRT272 |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-05050 |
ZRT272 |
5 | ||
| 55315-05050 |
ZRT272 |
5 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-05020C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55317-05020C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-05010C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55318-05010C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-05161 |
ZRT272 |
1 | ||
| 55330-05161 |
ZRT272 |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02060 |
ZRT272 |
1 | ||
| 55343-02060 |
ZRT272 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-05060 |
ZRT272 |
1 | ||
| 55355-05110 |
ZRT272 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 55355-05060 |
ZRT272 |
1 | ||
| 55355-05100 |
ZRT272 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-05060 |
ZRT272 |
1 | ||
| 55355-05110 |
ZRT272 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 55355-05060 |
ZRT272 |
1 | ||
| 55355-05100 |
ZRT272 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 55355E - CUSHION, INSTRUMENT PANEL | ||||
| 55355-05140 |
ZRT272 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 55355-05130 |
ZRT272 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 55355E - CUSHION, INSTRUMENT PANEL | ||||
| 55355-05140 |
ZRT272 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 55355-05130 |
ZRT272 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-05111C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55401-05111C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-05120 |
ZRT272 |
1 | ||
| 55474-05120 |
ZRT272 |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-05220 |
ZRT272 |
1 | ||
| 55475-05220 |
ZRT272 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
ZRT272 |
2 | ||
| 55557-53030 |
ZRT272 |
2 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-05021C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55981-05021C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZRT272 |
2 | ||
| 58959-60060 |
ZRT272 |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-05020 |
ZRT272 |
1 | ||
| 73960-05020 |
ZRT272 |
1 | ||
| 73960-05021 |
ZRT272 |
1 | ||
| Common parts | ||||
| 90105-W0175 | ||||
| 90119-W0037 | ||||
| 90159-60431 | ||||
| 90159-70004 | ||||
| 90159-W0007 | ||||
| 90159-W0019 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90183-06025 | ||||
| 90467-12080 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8202 | ||||

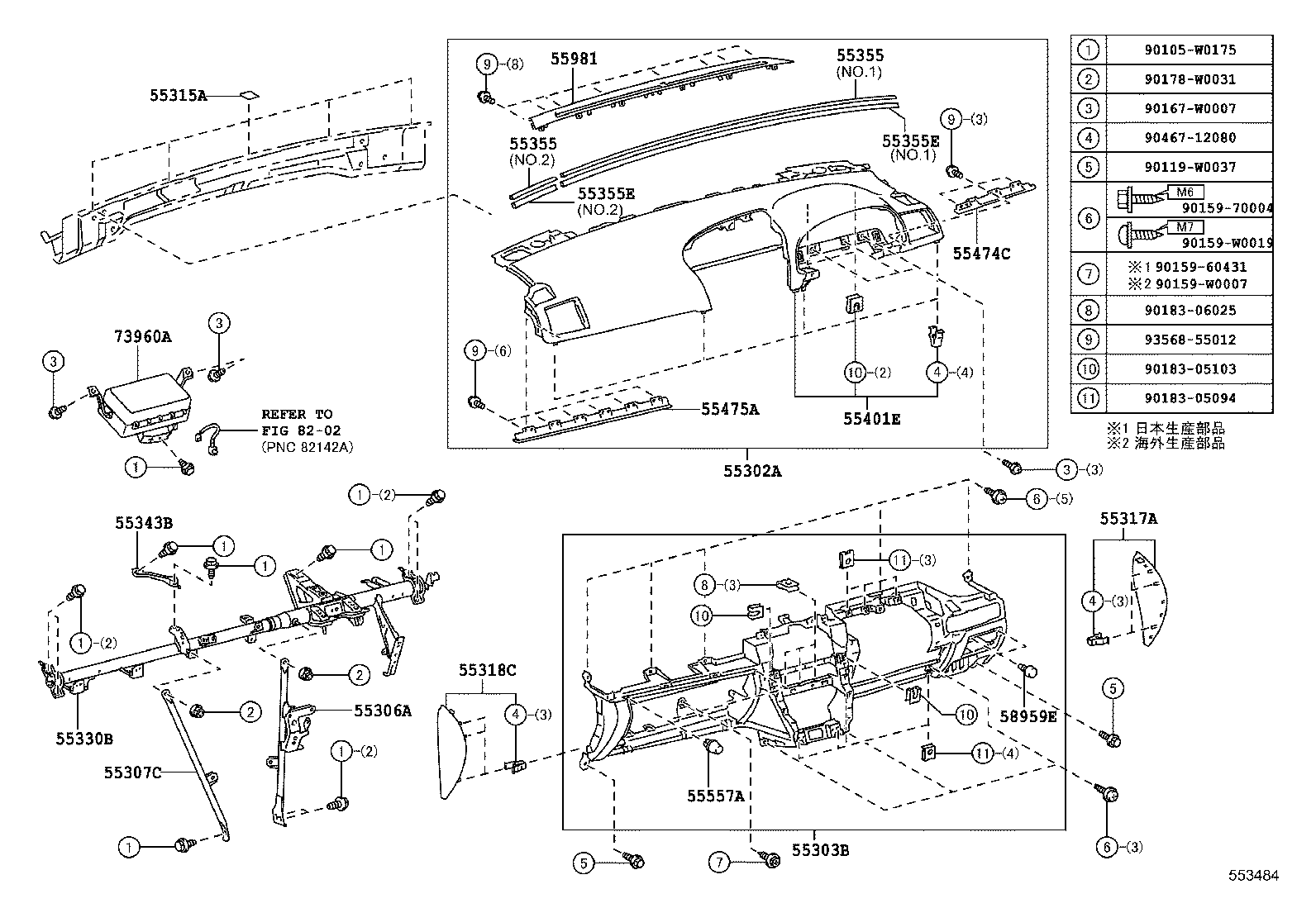

ILLUST NO. 1 OF 2(1107-1503)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-05072C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55302-05071C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-05040C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55303-05040C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-05110 |
ZRT272 |
1 | ||
| 55306-05110 |
ZRT272 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-05040 |
ZRT272 |
1 | ||
| 55307-05040 |
ZRT272 |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-05050 |
ZRT272 |
5 | ||
| 55315-05050 |
ZRT272 |
5 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-05020C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55317-05020C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-05010C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55318-05010C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-05161 |
ZRT272 |
1 | ||
| 55330-05161 |
ZRT272 |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02060 |
ZRT272 |
1 | ||
| 55343-02060 |
ZRT272 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-05060 |
ZRT272 |
1 | ||
| 55355-05110 |
ZRT272 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 55355-05060 |
ZRT272 |
1 | ||
| 55355-05100 |
ZRT272 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-05111C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 55401-05111C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-05120 |
ZRT272 |
1 | ||
| 55474-05120 |
ZRT272 |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-05220 |
ZRT272 |
1 | ||
| 55475-05220 |
ZRT272 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
ZRT272 |
2 | ||
| 55557-53030 |
ZRT272 |
2 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-05021C0 |
ZRT272..LI BLACK,TRIM4# |
1 | ||
| 55981-05021C0 |
ZRT272 BLACK,TRIM2# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZRT272 |
2 | ||
| 58959-60060 |
ZRT272 |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-05020 |
ZRT272 |
1 | ||
| 73960-05020 |
ZRT272 |
1 | ||
| 73960-05021 |
ZRT272 |
1 | ||
| Common parts | ||||
| 90105-W0175 | ||||
| 90119-W0037 | ||||
| 90159-60431 | ||||
| 90159-70004 | ||||
| 90159-W0007 | ||||
| 90159-W0019 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90183-06025 | ||||
| 90467-12080 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
