ZRT272W-AWXEP (2015)
Toyota Avensis
Production
Jul 2015
-
Jul 2018
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1507- )

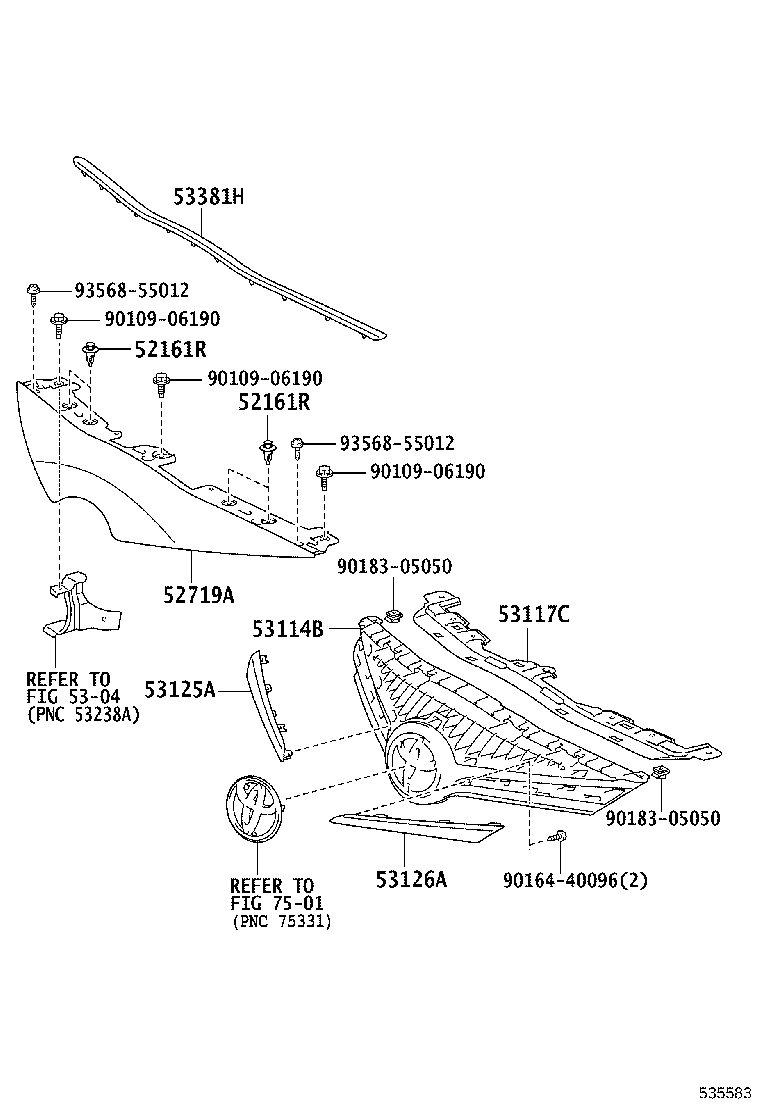

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-02030 |
ZRT272 |
4 | ||
| 52161R - PIECE, FRONT BUMPER | ||||
| 52161-02030 |
ZRT272 |
4 | ||
| 52719A - COVER, FRONT BUMPER MOULDING | ||||
| 52719-05030 |
ZRT272 |
1 | ||
| 53114B - GRILLE, RADIATOR, UPPER | ||||
| 53114-05130 |
ZRT272 塗装なし |
1 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 52521-05030 |
ZRT272 |
1 | ||
| 53125A - MOULDING, RADIATOR GRILLE, CENTER RH | ||||
| 53125-05030 |
ZRT272 |
1 | ||
| 53126A - MOULDING, RADIATOR GRILLE, CENTER LH | ||||
| 53126-05030 |
ZRT272 |
1 | ||
| 53381H - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-05050 |
ZRT272 |
1 | ||
| 53381-05080 |
ZRT272 |
1 | ||
| Common parts | ||||
| 90109-06190 | ||||
| 90164-40096 | ||||
| 90183-05050 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 5304 | ||||
| 7501 | ||||
