ZRT272W-AWXEP (2015)
Toyota Avensis
Production
Jul 2015
-
Jul 2018
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1507- )

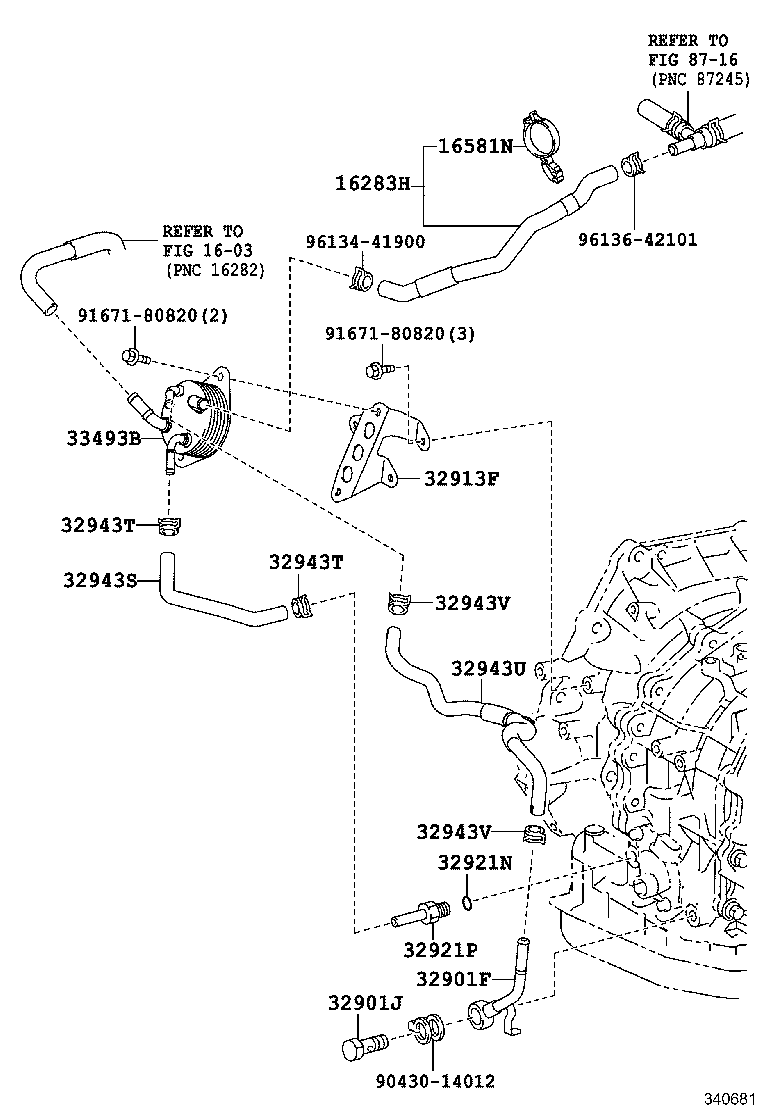

Click highlighted areas on diagram
K114
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16283H - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-0T050 |
3ZRFAE..ZRT272 |
1 | ||
| 16283-0T010 |
3ZRFAE..ZRT272 |
1 | ||
| 16581N - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-37020 |
3ZRFAE..ZRT272 |
1 | ||
| 32901F - ELBOW SUB-ASSY, OIL COOLER | ||||
| 32901-28010 |
ZRT272 |
1 | ||
| 32901J - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-14003 |
ZRT272 |
1 | ||
| 32913F - BRACKET, TRANSMISSION OIL COOLER | ||||
| 32913-05010 |
ZRT272 |
1 | ||
| 32921N - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10018 |
ZRT272 |
1 | ||
| 90301-10189 |
ZRT272 |
2 | ||
| 32921P - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-13004 |
ZRT272 |
2 | ||
| 90404-13009 |
ZRT272 |
1 | ||
| 32943S - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-20250 |
ZRT272 |
1 | ||
| 32943T - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
ZRT272 |
2 | ||
| 32943T - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
ZRT272 |
2 | ||
| 32943U - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32943-20260 |
ZRT272 |
1 | ||
| 32943V - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
ZRT272 |
2 | ||
| 32943V - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
ZRT272 |
2 | ||
| 33493B - COOLER, OIL | ||||
| 33493-05010 |
ZRT272 |
1 | ||
| 33493-20040 |
ZRT272 |
1 | ||
| Common parts | ||||
| 90430-14012 | ||||
| 91671-80820 | ||||
| 96134-41900 | ||||
| 96136-42101 | ||||
