ZRT272W-AWXEP (2012)

Toyota Avensis

Production Feb 2012 - May 2015
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1202-1505)

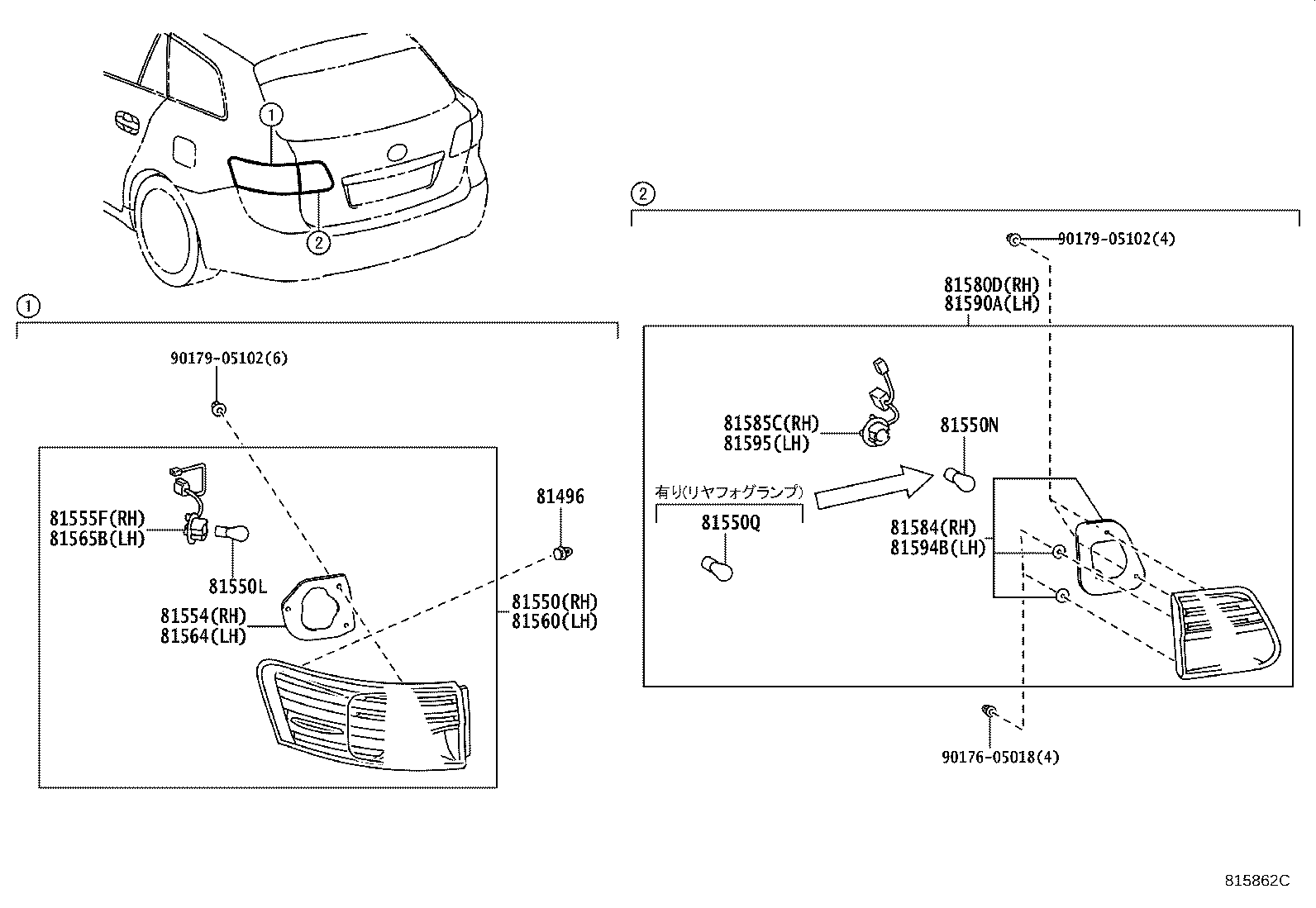

Click highlighted areas on diagram

diagram 81496 81550 81550L 81550N 81550Q 81554 81555F 81560 81564 81565B 81580D 81584 81585C 81590A 81594B 81595 9017605018 9017905102 9017905102
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-21010

ZRT272

 2
81496-21010

ZRT272

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-05280

ZRT272

 1
81550L - BULB, REAR TURN SIGNAL LAMP
90981-WF003

ZRT272

12V 21W

 2
90981-WF003

ZRT272

12V 21W

 2
81550N - BULB, BACK UP LAMP
90981-WC003

ZRT272

12V 21W

 1
90981-WC003

ZRT272

12V 21W

 1
81550Q - BULB, REAR FOG LAMP, NO.1
90981-WC003

ZRT272

 1
90981-WC003

ZRT272

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-05260

ZRT272

 1
81552-05280

ZRT272

 1
81555F - HOLDER, REAR COMBINATION LAMP BULB, RH
81555-05260

ZRT272

 1
81555-05270

ZRT272

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-05290

ZRT272

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81552-05280

ZRT272

 1
81552-05260

ZRT272

 1
81565B - HOLDER, REAR COMBINATION LAMP BULB, LH
81555-05270

ZRT272

 1
81555-05260

ZRT272

 1
81580D - LAMP ASSY, REAR, RH
81580-05150

ZRT272

 1
81584 - PACKING, REAR LAMP RH
81584-05110

ZRT272

 1
81584-05150

ZRT272

 1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-05110

ZRT272

 1
81585-05140

ZRT272

 1
81590A - LAMP ASSY, REAR, LH
81590-05150

ZRT272

 1
81594B - PACKING, REAR LAMP LH
81584-05140

ZRT272

 1
81584-05110

ZRT272

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-05140

ZRT272

 1
81585-05110

ZRT272

 1
Common parts
90176-05018
90179-05102
