AZT255-AEPNH (2006)
Toyota Avensis
Production
Jun 2006
-
Nov 2008
Engine
1AZFSE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

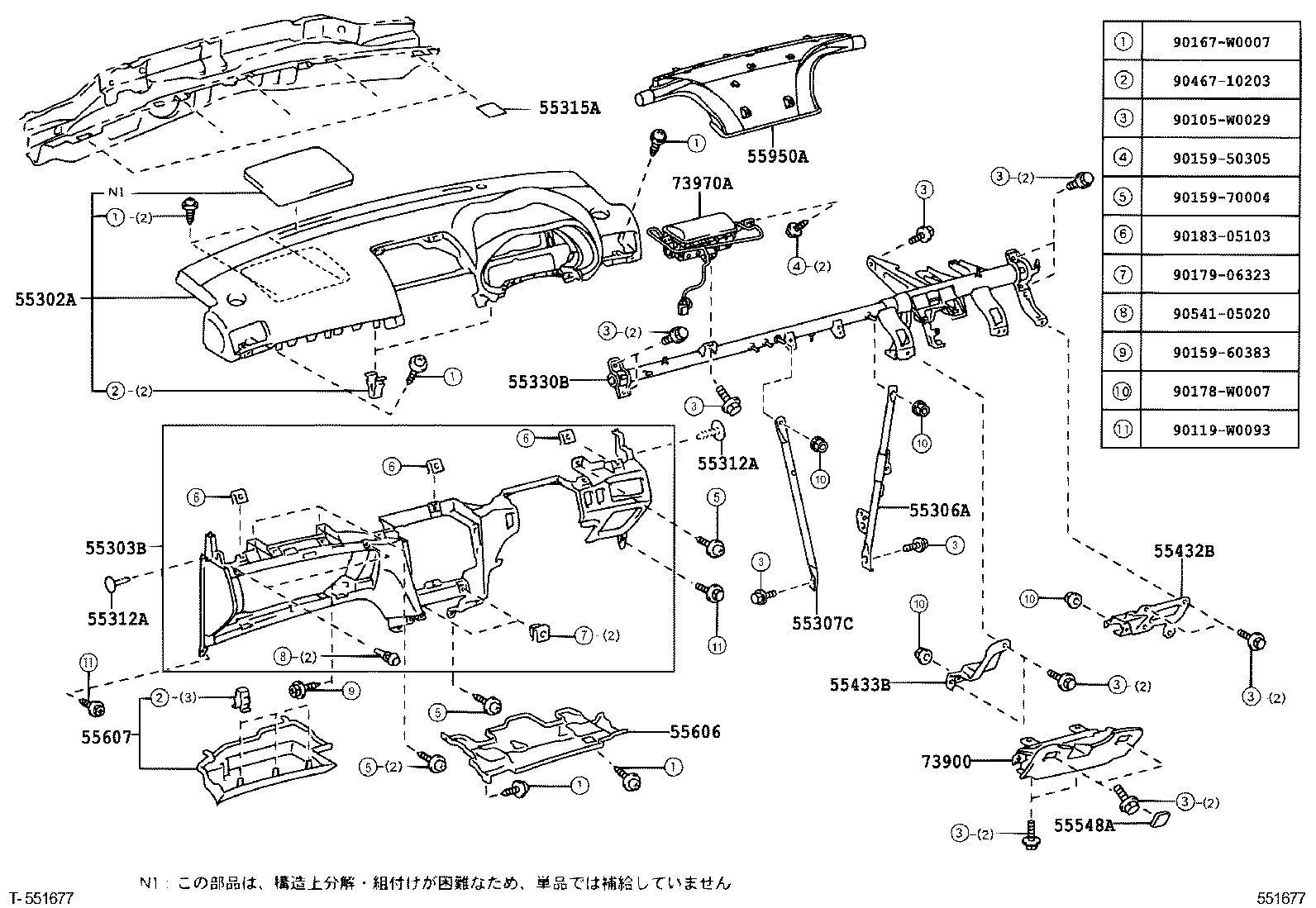

ILLUST NO. 1 OF 3(0606- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-05020B0 |
AZT250,255 DK.GRAY,TRIM1# |
1 | ||
| 55302-05020B0 |
AZT251..WG;AZT250,255..XI DK.GRAY,TRIM1# |
1 | ||
| 55302-05021B0 |
AZT250,255 DK.GRAY,TRIM1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-05021B0 |
AZT25# DK.GRAY,TRIM1# |
1 | ||
| 55303-05021B0 |
AZT25# DK.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-05090 |
AZT25# |
1 | ||
| 55306-05090 |
AZT25# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-05020 |
AZT25# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05161B0 |
AZT25# DK.GRAY |
2 | ||
| 90467-05161B0 |
AZT250,255 DK.GRAY,TRIM1# |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-05161B0 |
AZT25# DK.GRAY |
2 | ||
| 90467-05161B0 |
AZT250,255 DK.GRAY,TRIM1# |
2 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-05050 |
AZT25# |
5 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-05120 |
AZT25# |
1 | ||
| 55330-05140 |
AZT25# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-20400 |
AZT25# |
1 | ||
| 55432-20400 |
AZT25# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-20180 |
AZT25# |
1 | ||
| 55433-20180 |
AZT25# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-05030B0 |
AZT25# DK.GRAY,TRIM1# |
2 | ||
| 55548-05030B0 |
AZT25# DK.GRAY,TRIM1# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-05040 |
AZT25# |
1 | ||
| 55606-05040 |
AZT25# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-05020 |
AZT25# |
1 | ||
| 55607-05020 |
AZT25# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-05070 |
AZT25# |
1 | ||
| 55950-05070 |
AZT25# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-05020B0 |
AZT25# DK.GRAY,TRIM1# |
1 | ||
| 73900-05020B0 |
AZT25# DK.GRAY,TRIM1# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-05090 |
AZT25# |
1 | ||
| 73970-05090 |
AZT25# |
1 | ||
| Common parts | ||||
| 90105-W0029 | ||||
| 90119-W0093 | ||||
| 90159-50305 | ||||
| 90159-60383 | ||||
| 90159-70004 | ||||
| 90167-W0007 | ||||
| 90178-W0007 | ||||
| 90179-06323 | ||||
| 90183-05103 | ||||
| 90467-10203 | ||||
| 90541-05020 | ||||
