AZT251W-AWAQH (2005)

Toyota Avensis

Production Jun 2005 - Jun 2006
Engine 2AZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

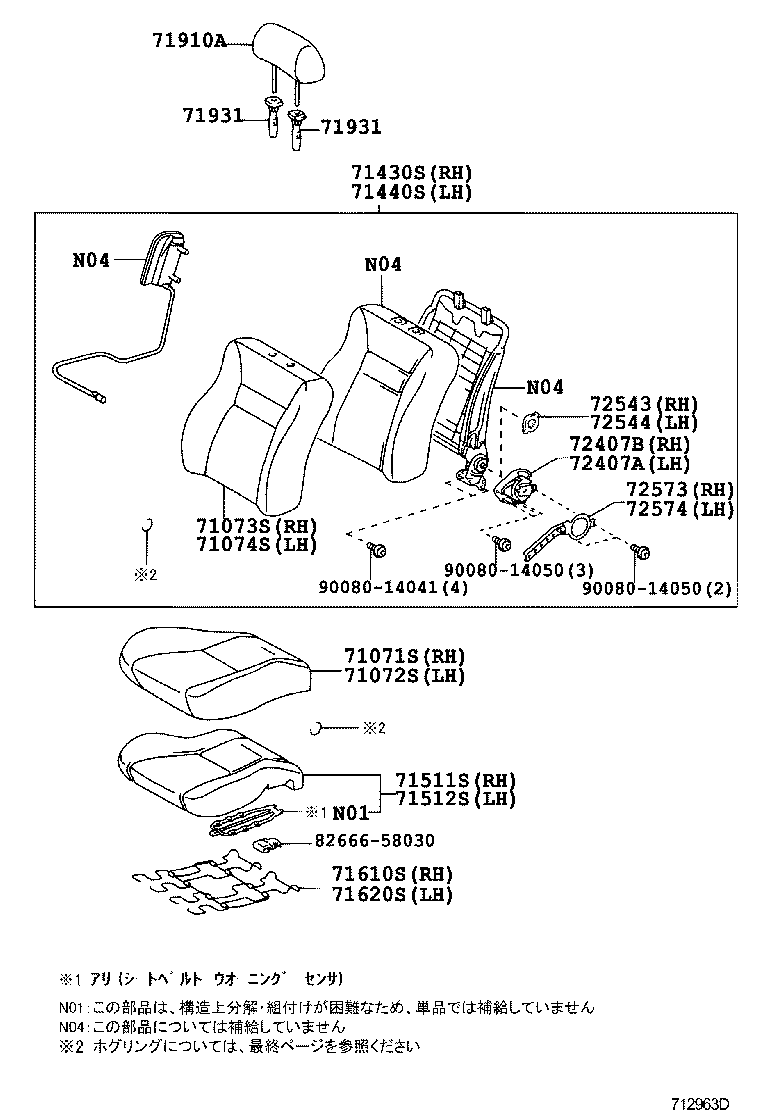

ILLUST NO. 1 OF 2(0307-0606)

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71430S 71440S 71511S 71512S 71610S 71620S 71910A 71931 71931 72407A 72407B 72543 72544 72573 72574 8266658030 9008014041 9008014050 9008014050
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-05690A0

AZT251..QI

IVORY,TRIM0#

 1
71071-05690B0

AZT251..QI

DK.GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-05560B0

AZT251..QI

DK.GRAY,TRIM1#

 1
71072-05560A0

AZT251..QI

IVORY,TRIM0#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-05870B0

AZT251..WG..QI

DK.GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-05680B0

AZT251..WG..QI

DK.GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-05050

AZT251

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-05020

AZT251

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-CA040B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02070B0

AZT250,255;AZT251..WG;AZT251..SED..QI

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-02050B0

AZT250,255;AZT251..WG;AZT251..SED..QI

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02070B0

AZT250,255;AZT251..WG;AZT251..SED..QI

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-02050B0

AZT250,255;AZT251..WG;AZT251..SED..QI

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
Common parts
82666-58030
90080-14041
90080-14050

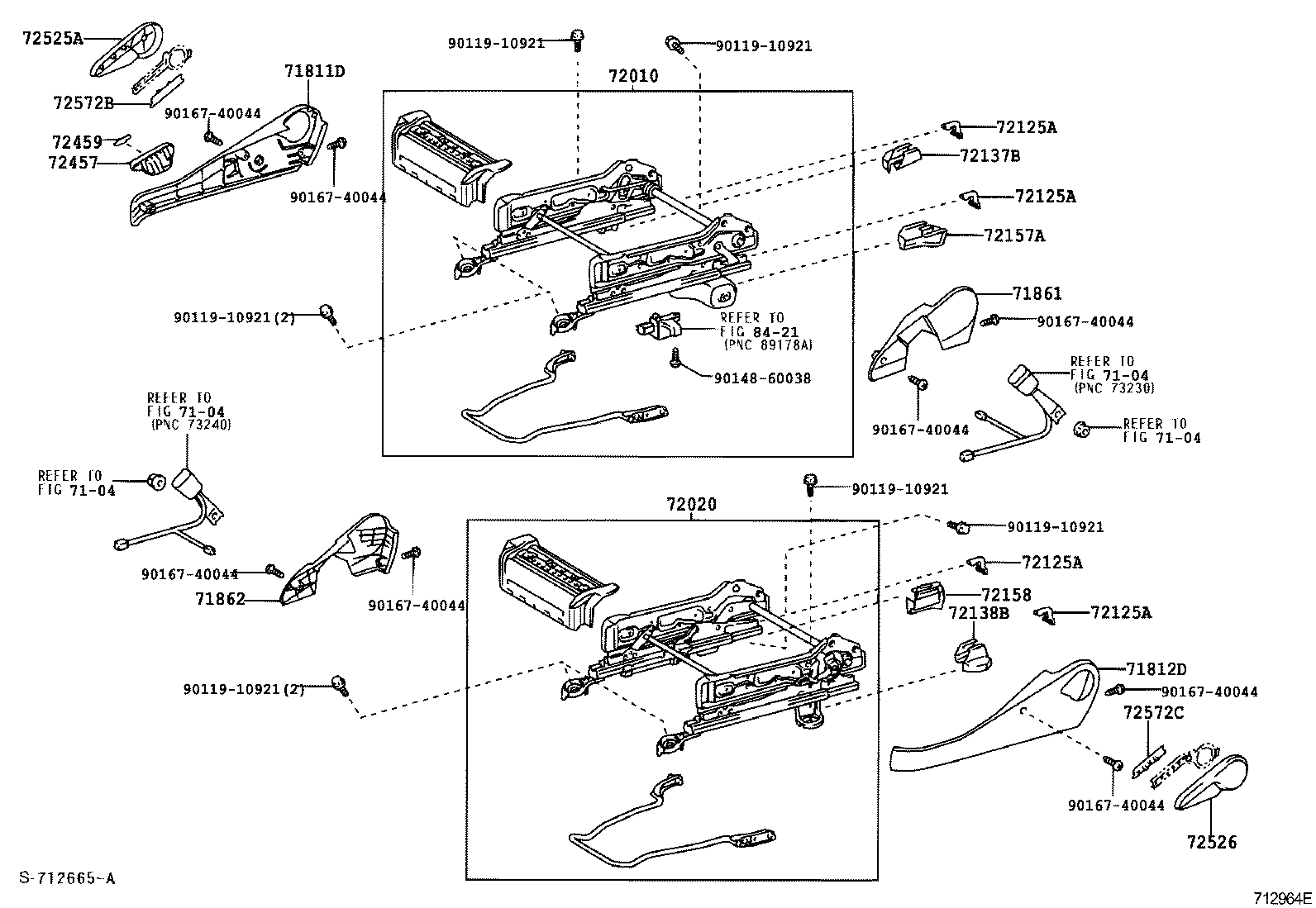

ILLUST NO. 2 OF 2(0307-0606)

Click highlighted areas on diagram

diagram 7104 7104 7104 7104 71811D 71812D 71861 71862 72010 72020 72125A 72125A 72125A 72125A 72137B 72138B 72157A 72158 72457 72459 72525A 72526 72572B 72572C 8421 9011910921 9011910921 9011910921 9011910921 9011910921 9011910921 9014860038 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044
Part # Description Qty Price
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-05050B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-05060B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-60110B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-60100B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
72137B - COVER, SEAT TRACK, RH
72137-05030B0

AZT251

DK.GRAY,TRIM1#

 1
72138B - COVER, SEAT TRACK, LH
72138-05020B0

AZT251

DK.GRAY,TRIM1#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-05030B0

AZT251

DK.GRAY,TRIM1#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-05030B0

AZT251

DK.GRAY,TRIM1#

 1
Common parts
90119-10921
90148-60038
90167-40044
Linked diagrams
7104
8421

(0307-0606)

Click highlighted areas on diagram

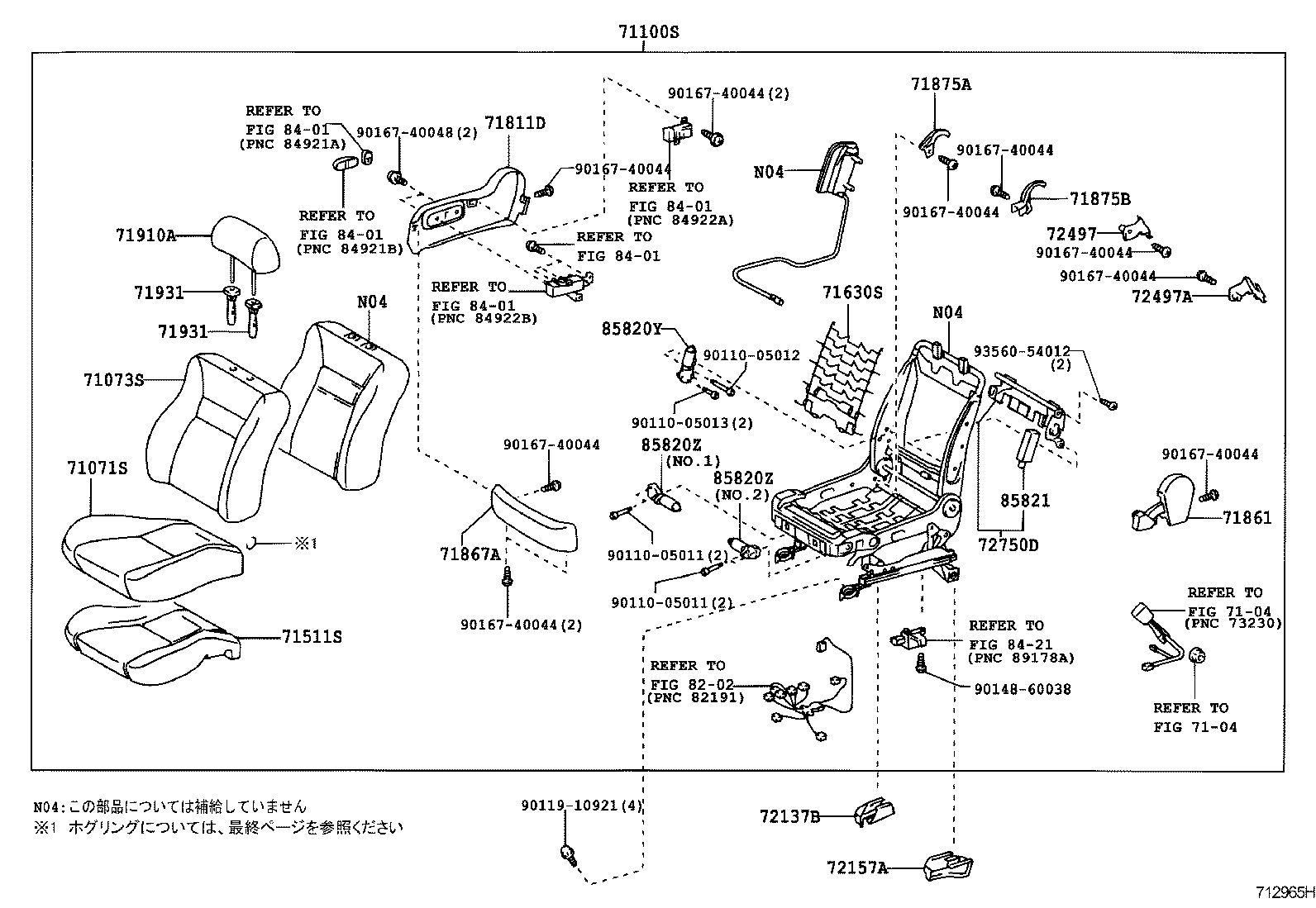

ｳﾝﾃﾝｾｷ ﾊﾟﾜ-ｼ-ﾄ

diagram 7104 7104 71071S 71073S 71100S 71511S 71630S 71811D 71861 71867A 71875A 71875B 71910A 71931 71931 72137B 72157A 72497 72497A 72750D 8202 8401 8401 8401 8401 8401 8421 85820Y 85820Z 85820Z 85821 9011005011 9011005011 9011005012 9011005013 9011910921 9014860038 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9356054012
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-05690A0

AZT251..QI

IVORY,TRIM0#

 1
71071-05690B0

AZT251..QI

DK.GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-05870B0

AZT251..WG..QI

DK.GRAY,TRIM1#

 1
71100S - SEAT ASSY, FRONT RH
71010-05102A0

AZT251..QI

IVORY,TRIM0#

 1
71010-05102B0

AZT251..QI

DK.GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-05050

AZT251

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71053-58010

AZT251

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-05050B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-60110B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71867-05010B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-58030B2

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60150B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-CA040B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02070B0

AZT250,255;AZT251..WG;AZT251..SED..QI

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-02050B0

AZT250,255;AZT251..WG;AZT251..SED..QI

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02070B0

AZT250,255;AZT251..WG;AZT251..SED..QI

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-02050B0

AZT250,255;AZT251..WG;AZT251..SED..QI

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
72137B - COVER, SEAT TRACK, RH
72137-05030B0

AZT251

DK.GRAY,TRIM1#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-05030B0

AZT251

DK.GRAY,TRIM1#

 1
72497 - COVER, VERTICAL ADJUSTER BRACKET, OUTER
72497-58010

AZT251

 1
72497A - COVER, VERTICAL ADJUSTER BRACKET, INNER
72498-58010

AZT251

 1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-60050

AZT251

 1
85820Y - MOTOR ASSY, POWER SEAT
85801-58020

AZT251

運転席側

 1
85820Z - MOTOR ASSY, POWER SEAT
85801-58040

AZT251

NO.1

 1
85801-58030

AZT251

NO.2

 1
85820Z - MOTOR ASSY, POWER SEAT
85801-58040

AZT251

NO.1

 1
85801-58030

AZT251

NO.2

 1
85821 - MOTOR ASSY, POWER SEAT
85820-60130

AZT251

 1
Common parts
90110-05011
90110-05012
90110-05013
90119-10921
90148-60038
90167-40044
90167-40048
93560-54012
Linked diagrams
7104
8202
8401
8421

(0307-0606)

Click highlighted areas on diagram

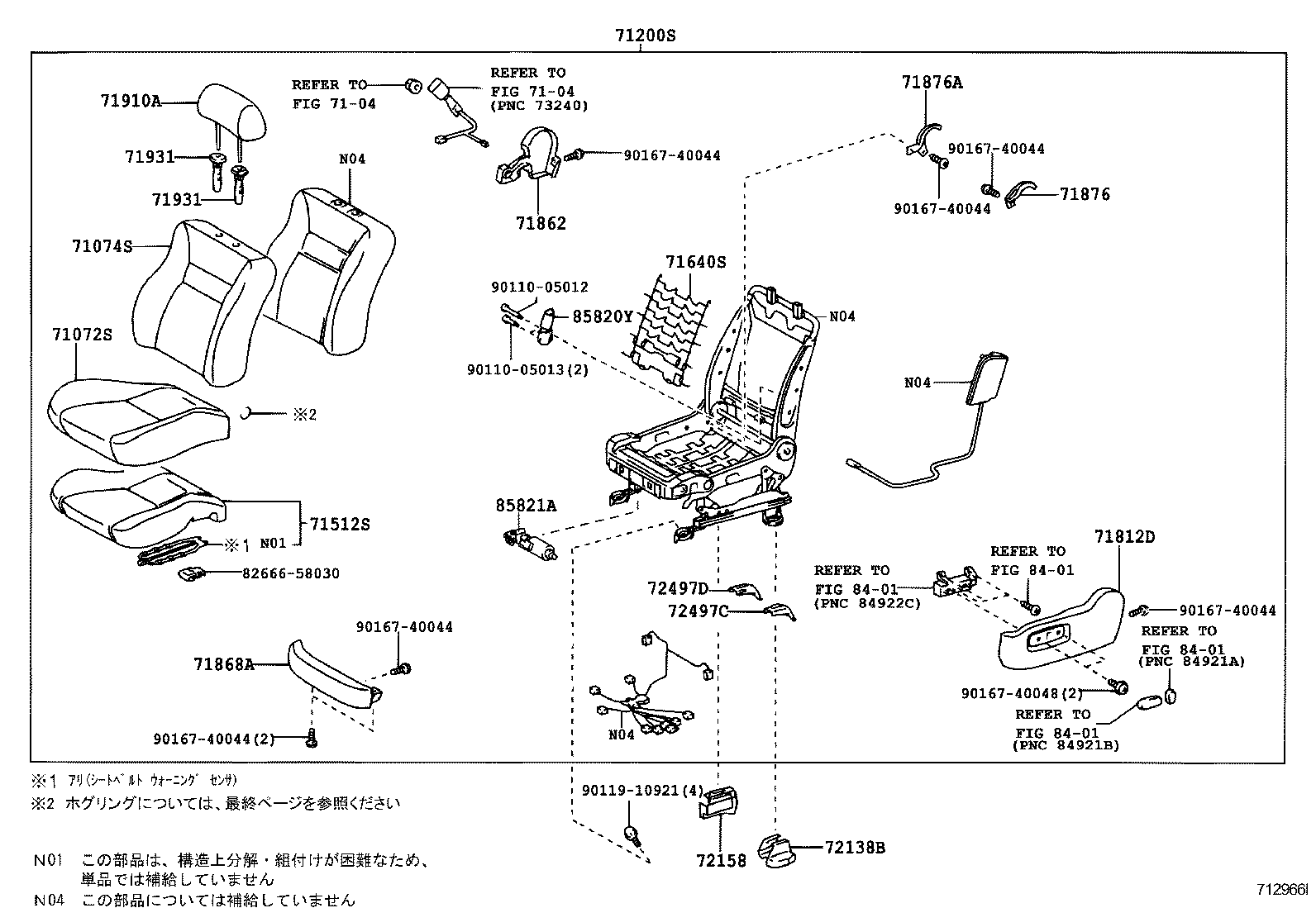

ｼﾞﾖｼﾕｾｷ ﾊﾟﾜ-ｼ-ﾄ

diagram 7104 7104 71072S 71074S 71200S 71512S 71640S 71812D 71862 71868A 71876 71876A 71910A 71931 71931 72138B 72158 72497C 72497D 8266658030 8401 8401 8401 8401 85820Y 85821A 9011005012 9011005013 9011910921 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-05560B0

AZT251..QI

DK.GRAY,TRIM1#

 1
71072-05560A0

AZT251..QI

IVORY,TRIM0#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-05680B0

AZT251..WG..QI

DK.GRAY,TRIM1#

 1
71200S - SEAT ASSY, FRONT LH
71020-05102A0

AZT251..QI

IVORY,TRIM0#

 1
71020-05102B0

AZT251..QI

DK.GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-05020

AZT251

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71053-58010

AZT251

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-05060B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-60100B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-05010B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60150B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60170B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-CA040B0

AZT251..WG;AZT251..SED..QI

DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02070B0

AZT250,255;AZT251..WG;AZT251..SED..QI

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-02050B0

AZT250,255;AZT251..WG;AZT251..SED..QI

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02070B0

AZT250,255;AZT251..WG;AZT251..SED..QI

ﾛｯｸ付,DK.GRAY,TRIM1#

 2
71931-02050B0

AZT250,255;AZT251..WG;AZT251..SED..QI

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
72138B - COVER, SEAT TRACK, LH
72138-05020B0

AZT251

DK.GRAY,TRIM1#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-05030B0

AZT251

DK.GRAY,TRIM1#

 1
72497C - COVER, VERTICAL ADJUSTER BRACKET, OUTER
72498-60010

AZT251

 1
72497D - COVER, VERTICAL ADJUSTER BRACKET, INNER
72497-60010

AZT251

 1
85820Y - MOTOR ASSY, POWER SEAT
85801-58020

AZT251

運転席側

 1
85821A - MOTOR ASSY, POWER SEAT
85801-58010

AZT251

 1
Common parts
82666-58030
90110-05012
90110-05013
90119-10921
90167-40044
90167-40048
Linked diagrams
7104
8401
