AZT251-AEAQH (2006)

Toyota Avensis

Production Jun 2006 - Nov 2008
Engine 2AZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0606- )

Click highlighted areas on diagram

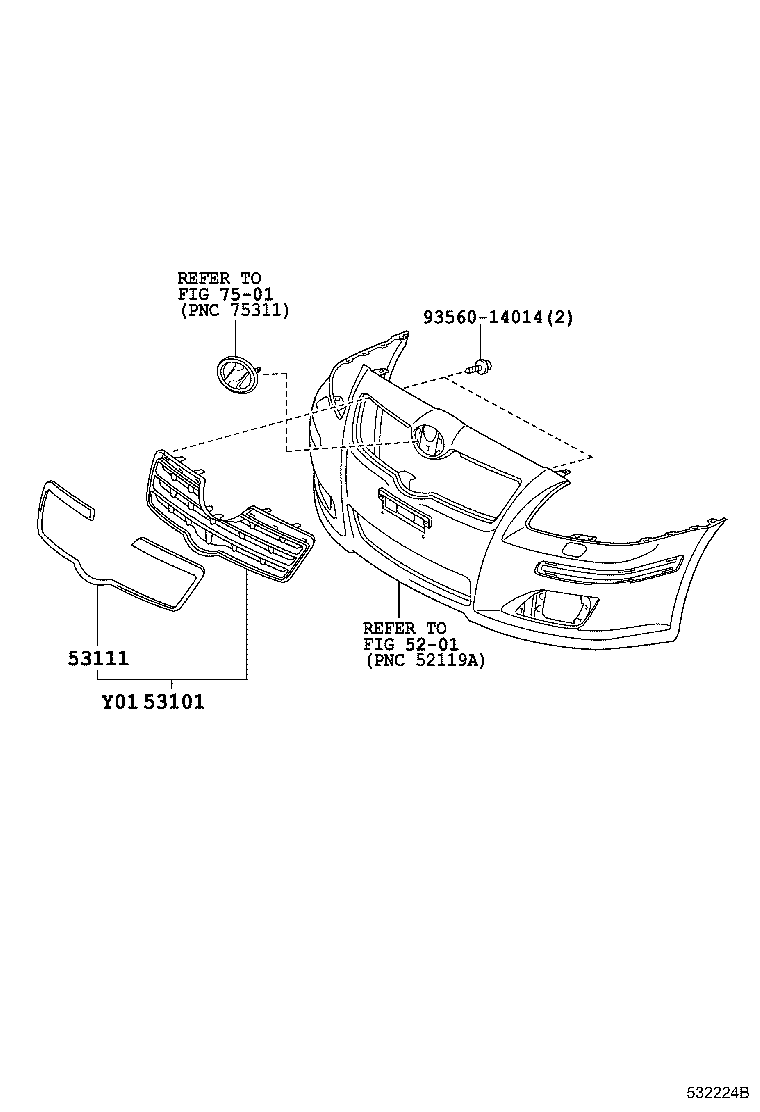

diagram 5201 53101 53111 7501 9356014014
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53100-05080B0

AZT25#

SILVER ME.,1C0

 1
53100-05080A0

AZT25#..SED

SUPER WHITE 2,040

 1
53100-05080D1

AZT25#..SED

MAROON MC.,3N0

 1
53100-05080J0

AZT25#

DK.BLUE MC.,8S6

 1
53111 - GRILLE, RADIATOR
53111-05060

AZT25#

ﾒｯｷ

 1
53111-05050

AZT25#

ﾒｯｷ

 1
Common parts
93560-14014
Linked diagrams
5201
7501
