AZT251-AEAGH (2006)
Toyota Avensis

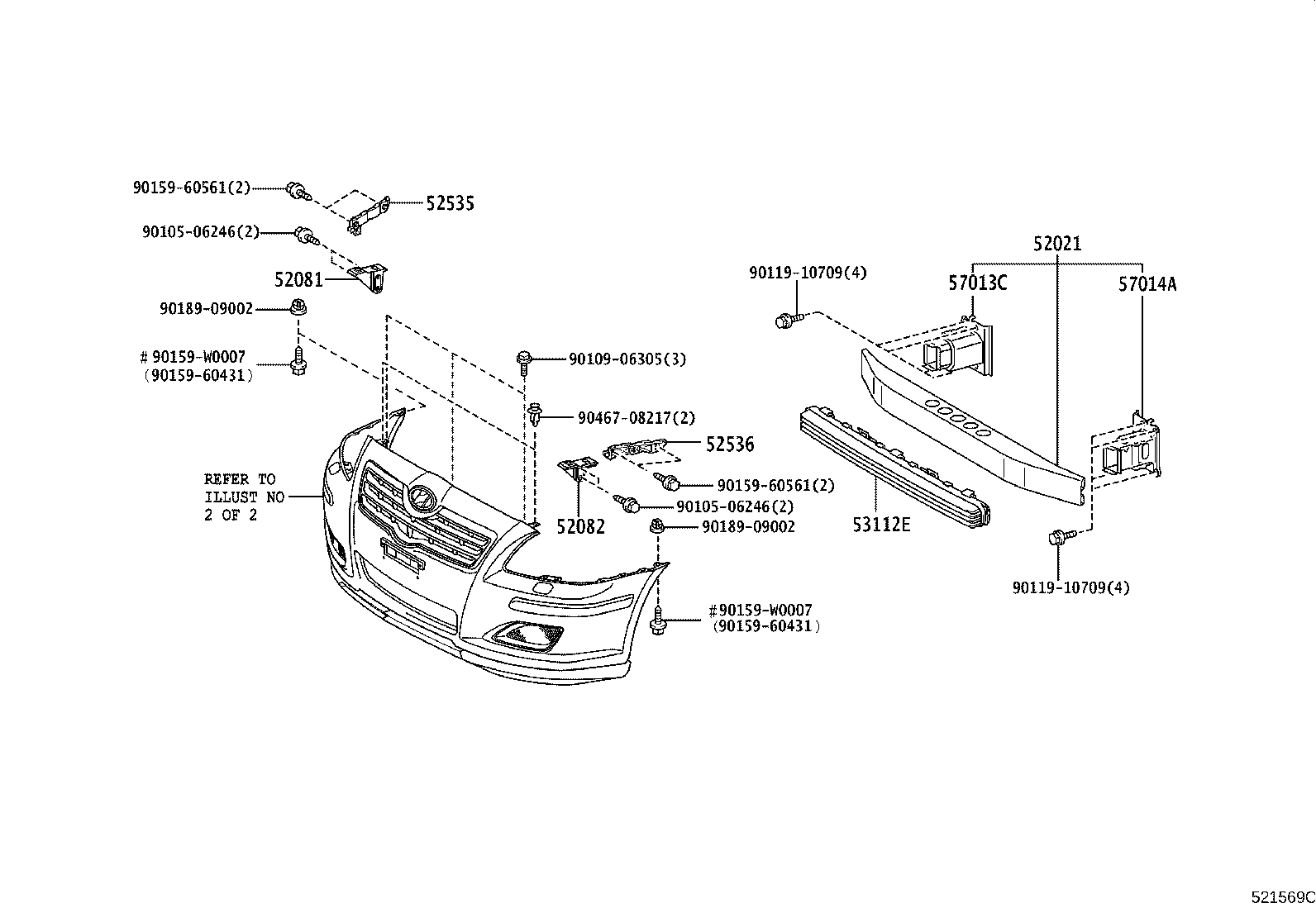

ILLUST NO. 1 OF 2(0606- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-05040 |
AZT25# |
1 | ||
| 52021-05040 |
AZT25# |
1 | ||
| 52081 - STAY SUB-ASSY, FRONT BUMPER | ||||
| 52081-05020 |
AZT25# |
1 | ||
| 52081-05010 |
AZT25# |
1 | ||
| 52082 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52082-05010 |
AZT25# |
1 | ||
| 52082-05020 |
AZT25# |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-05020 |
AZT25# |
1 | ||
| 52535-05020 |
AZT25# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-05020 |
AZT25# |
1 | ||
| 52536-05020 |
AZT25# |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-05060 |
AZT25# 塗装不要 |
1 | ||
| 53112-05050 |
AZT25# 塗装不要 |
1 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-05020 |
AZT25# |
1 | ||
| 57013-05020 |
AZT25# |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-05020 |
AZT25# |
1 | ||
| 57014-05020 |
AZT25# |
1 | ||
| Common parts | ||||
| 90105-06246 | ||||
| 90109-06305 | ||||
| 90119-10709 | ||||
| 90159-60431 | ||||
| 90159-60561 | ||||
| 90159-W0007 | ||||
| 90189-09002 | ||||
| 90467-08217 | ||||

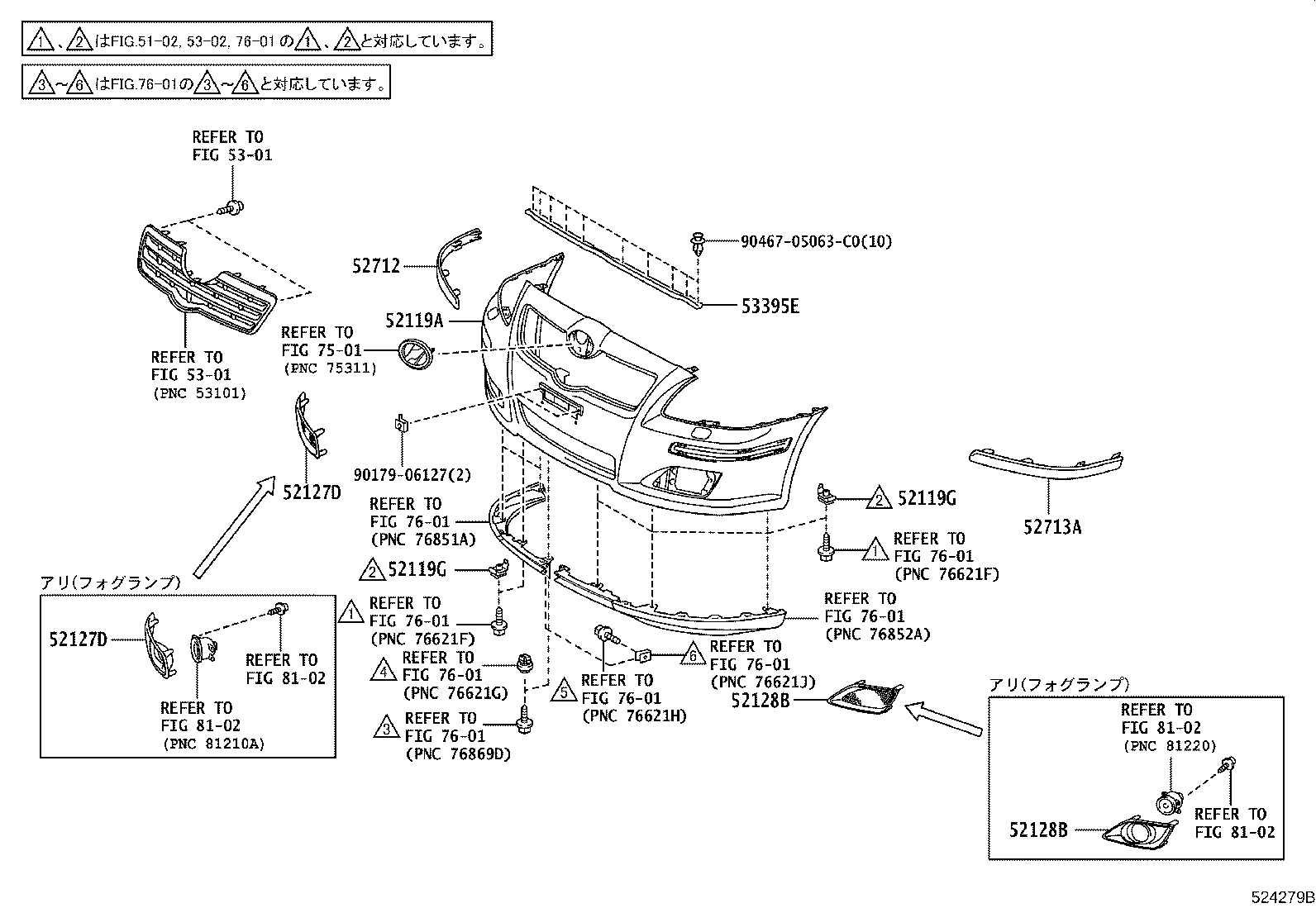

ILLUST NO. 2 OF 2(0606- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-05150G1 |
AZT25# LT.OLIVE M.M.,6T1 |
1 | ||
| 52119-05150A0 |
AZT251,255..SED;AZT250..SED..XI SUPER WHITE 2,040 |
1 | ||
| 52119-05170B0 |
AZT25# SILVER ME.,1C0 |
1 | ||
| 52119-05150J0 |
AZT251;AZT250,255..XI DK.BLUE M.M.,8P4 |
1 | ||
| 52119-05150B0 |
AZT251;AZT250,255..XI SILVER ME.,1C0 |
1 | ||
| 52119-05170D1 |
AZT25#..SED MAROON MC.,3N0 |
1 | ||
| 52119-05170A0 |
AZT25#..SED SUPER WHITE 2,040 |
1 | ||
| 52119-05170J0 |
AZT25# DK.BLUE MC.,8S6 |
1 | ||
| 52119G - CLIP, NO.1 | ||||
| 90467-05138 |
AZT25# |
6 | ||
| 90467-05138 |
AZT25# |
6 | ||
| 52119G - CLIP, NO.1 | ||||
| 90467-05138 |
AZT25# |
6 | ||
| 90467-05138 |
AZT25# |
6 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-05020 |
AZT250,251..LI,QI |
1 | ||
| 52127-05030 |
AZT251,255 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-05020 |
AZT250,251..LI,QI |
1 | ||
| 52127-05030 |
AZT251,255 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-05050 |
AZT251,255 |
1 | ||
| 52128-05020 |
AZT250,251..LI,QI |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-05050 |
AZT251,255 |
1 | ||
| 52128-05020 |
AZT250,251..LI,QI |
1 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-05020J0 |
AZT251;AZT250,255..XI DK.BLUE M.M.,8P4 |
1 | ||
| 52712-05020G1 |
AZT25# LT.OLIVE M.M.,6T1 |
1 | ||
| 52712-05030J0 |
AZT25# DK.BLUE MC.,8S6 |
1 | ||
| 52712-05020B0 |
AZT251;AZT250,255..XI SILVER ME.,1C0 |
1 | ||
| 52712-05020A0 |
AZT251,255..SED;AZT250..SED..XI SUPER WHITE 2,040 |
1 | ||
| 52712-05030A0 |
AZT25#..SED SUPER WHITE 2,040 |
1 | ||
| 52712-05030D1 |
AZT25#..SED MAROON MC.,3N0 |
1 | ||
| 52712-05030B0 |
AZT25# SILVER ME.,1C0 |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-05020A0 |
AZT251,255..SED;AZT250..SED..XI SUPER WHITE 2,040 |
1 | ||
| 52713-05030J0 |
AZT25# DK.BLUE MC.,8S6 |
1 | ||
| 52713-05030D1 |
AZT25#..SED MAROON MC.,3N0 |
1 | ||
| 52713-05020G1 |
AZT25# LT.OLIVE M.M.,6T1 |
1 | ||
| 52713-05030A0 |
AZT25#..SED SUPER WHITE 2,040 |
1 | ||
| 52713-05020J0 |
AZT251;AZT250,255..XI DK.BLUE M.M.,8P4 |
1 | ||
| 52713-05030B0 |
AZT25# SILVER ME.,1C0 |
1 | ||
| 52713-05020B0 |
AZT251;AZT250,255..XI SILVER ME.,1C0 |
1 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-05020 |
AZT25# |
1 | ||
| 53395-05010 |
AZT25# |
1 | ||
| Common parts | ||||
| 90179-06127 | ||||
| 90467-05063C0 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7501 | ||||
| 7601 | ||||
| 8102 | ||||
