AZT250W-AWPNH (2003)
Toyota Avensis
Production
Jul 2003
-
Jun 2006
Engine
1AZFSE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0307- )WG

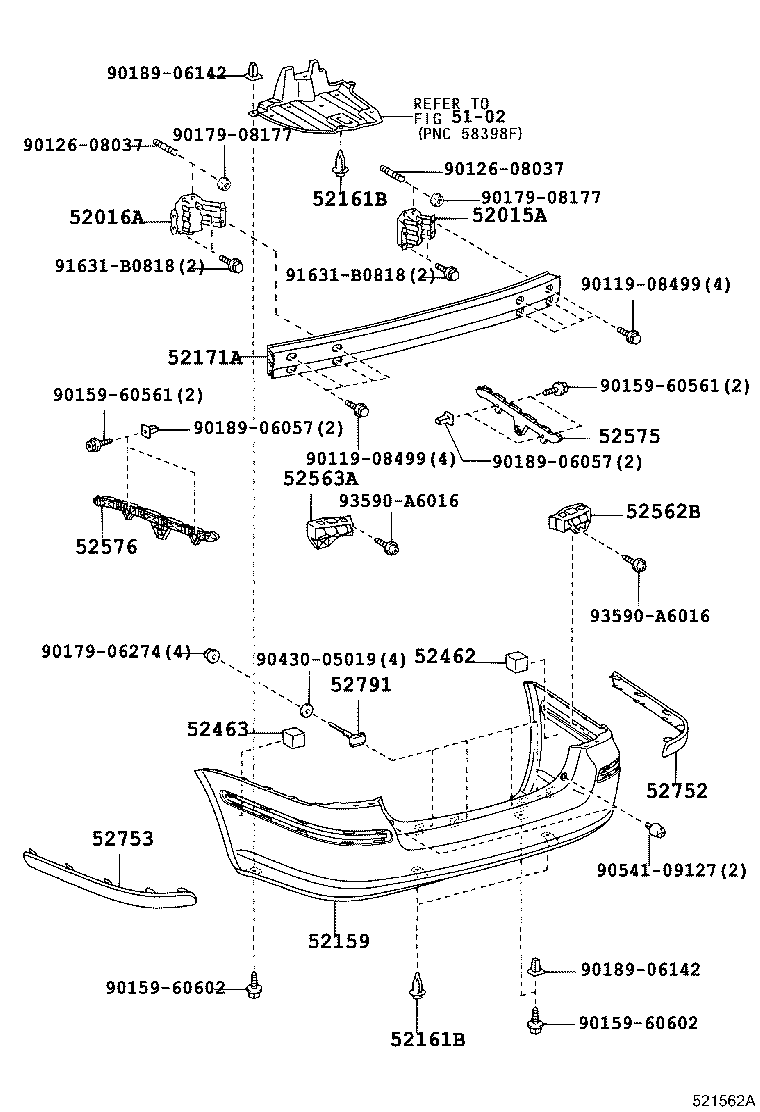

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-05020 |
AZT25#..WG |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-05020 |
AZT25#..WG |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-05110A1 |
AZT250,255..WG SUPER WHITE 2,040 |
1 | ||
| 52159-05110G3 |
AZT250,255..WG LT.OLIVE M.M.,6T1 |
1 | ||
| 52159-05110B2 |
AZT25#..WG SILVER ME.,1C0 |
1 | ||
| 52159-05110C1 |
AZT25#..WG BLACK MC.,209 |
1 | ||
| 52159-05110J1 |
AZT25#..WG DK.BLUE M.M.,8P4 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AZT25# |
3 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AZT25# |
3 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-05010 |
AZT25# |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-05020 |
AZT25# |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-05020 |
AZT25# |
1 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-05020 |
AZT25#..WG |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-05020 |
AZT25#..WG |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-05050 |
AZT25#..WG |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-05050 |
AZT25#..WG |
1 | ||
| 52752 - MOULDING, REAR BUMPER SIDE, RH | ||||
| 52752-05903 |
AZT25#..WG |
1 | ||
| 52752-05040G1 |
AZT250,255..WG LT.OLIVE M.M.,6T1 |
1 | ||
| 52752-05040A0 |
AZT250,255..WG SUPER WHITE 2,040 |
1 | ||
| 52752-05040B0 |
AZT25#..WG SILVER ME.,1C0 |
1 | ||
| 52752-05040C0 |
AZT25#..WG BLACK MC.,209 |
1 | ||
| 52752-05040J0 |
AZT25#..WG DK.BLUE M.M.,8P4 |
1 | ||
| 52753 - MOULDING, REAR BUMPER SIDE, LH | ||||
| 52753-05040J0 |
AZT25#..WG DK.BLUE M.M.,8P4 |
1 | ||
| 52753-05040G1 |
AZT250,255..WG LT.OLIVE M.M.,6T1 |
1 | ||
| 52753-05040B0 |
AZT25#..WG SILVER ME.,1C0 |
1 | ||
| 52753-05040A0 |
AZT250,255..WG SUPER WHITE 2,040 |
1 | ||
| 52753-05040C0 |
AZT25#..WG BLACK MC.,209 |
1 | ||
| 52753-05903 |
AZT25#..WG |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 52791-12040 |
AZT25# |
4 | ||
| Common parts | ||||
| 90119-08499 | ||||
| 90126-08037 | ||||
| 90159-60561 | ||||
| 90159-60602 | ||||
| 90179-06274 | ||||
| 90179-08177 | ||||
| 90189-06057 | ||||
| 90189-06142 | ||||
| 90430-05019 | ||||
| 90541-09127 | ||||
| 91631-B0818 | ||||
| 93590-A6016 | ||||
| Linked diagrams | ||||
| 5102 | ||||
