AZT250W-AWPNH (2003)

Toyota Avensis

Production Jul 2003 - Jun 2006
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0307- )

Click highlighted areas on diagram

12V 1.6KW

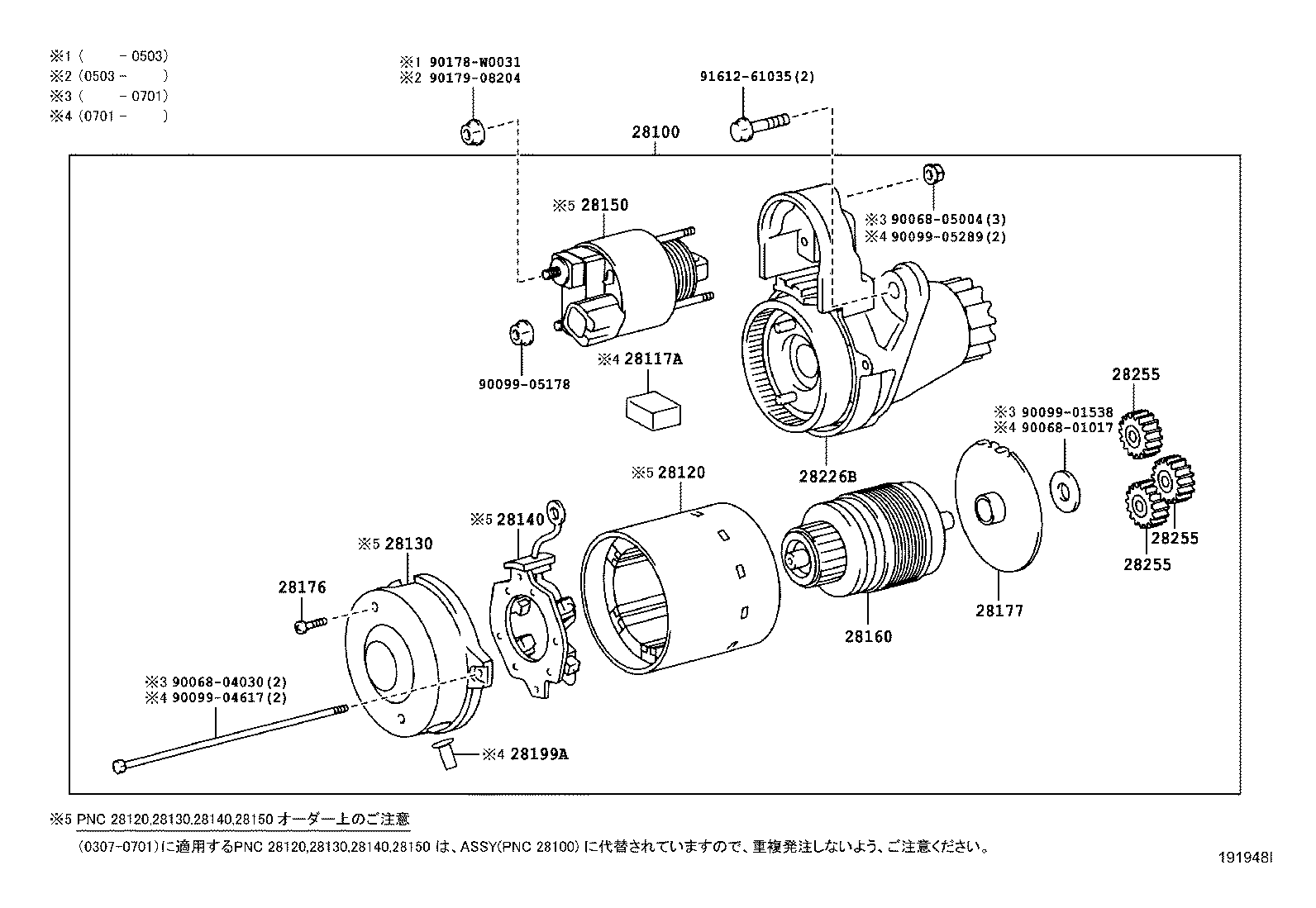

diagram 28100 28117A 28120 28130 28140 28150 28160 28176 28177 28199A 28226B 28255 28255 28255 9006801017 9006804030 9006805004 9009901538 9009904617 9009905178 9009905289 90178W0031 9017908204 9161261035
Part # Description Qty Price
28100 - STARTER ASSY
28100-0H061

1AZFSE,2AZFSE..AZT25#

12V 1.6KW

 1
28100-0H060

1AZFSE,2AZFSE..AZT25#

12V 1.6KW

 1
28120 - YOKE ASSY, STARTER
28120-0H060

1AZFSE,2AZFSE..AZT25#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0H050

1AZFSE,2AZFSE..AZT25#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0H050

1AZFSE,2AZFSE..AZT25#

 1
28150 - SWITCH ASSY, MAGNET STARTER
28226-0D090

1AZFSE,2AZFSE..AZT25#

 1
28160 - ARMATURE ASSY, STARTER
28160-0H060

1AZFSE,2AZFSE..AZT25#

 1
28176 - SCREW, STARTER
90068-00015

1AZFSE,2AZFSE..AZT25#

 2
28177 - PLATE(FOR STARTER ARMATURE)
28177-0D090

1AZFSE,2AZFSE..AZT25#

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-0H051

1AZFSE,2AZFSE..AZT25#

 1
28226-0H050

1AZFSE,2AZFSE..AZT25#

 1
28255 - GEAR, PLANET
28255-0D090

1AZFSE,2AZFSE..AZT25#

 3
28255 - GEAR, PLANET
28255-0D090

1AZFSE,2AZFSE..AZT25#

 3
28255 - GEAR, PLANET
28255-0D090

1AZFSE,2AZFSE..AZT25#

 3
Common parts
90068-01017
90068-04030
90068-05004
90099-01538
90099-04617
90099-05178
90099-05289
90178-W0031
90179-08204
91612-61035
