AZT250W-AWPNH (2003)

Toyota Avensis

Production Jul 2003 - Jun 2006
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0307- )1AZFSE..AZT250 ; (0309- )1AZFSE..AZT255

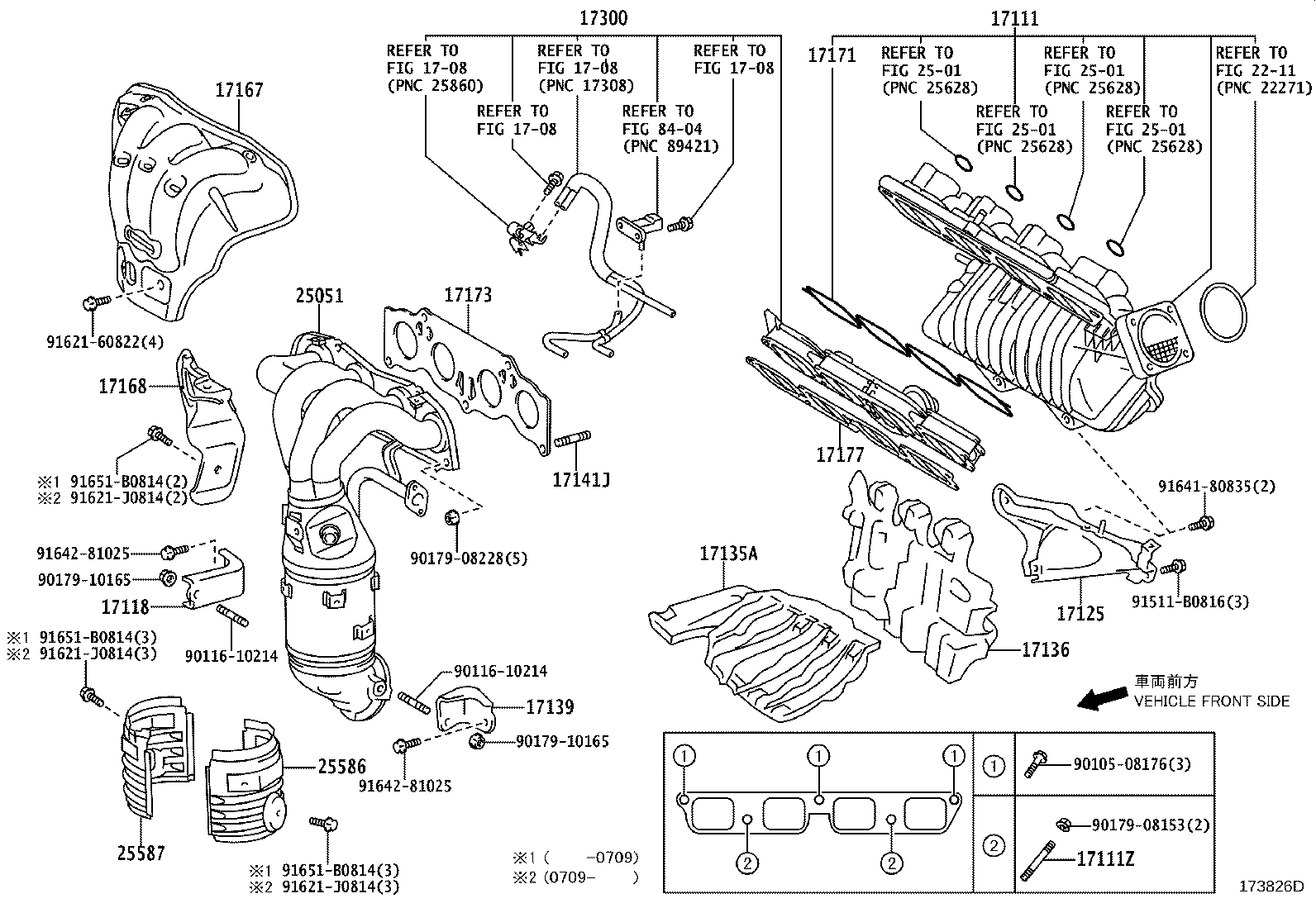

Click highlighted areas on diagram

diagram 1708 1708 1708 1708 17111 17111Z 17118 17125 17135A 17136 17139 17141J 17167 17168 17171 17173 17177 17300 2211 2501 2501 2501 2501 25051 25586 25587 8404 9010508176 9011610214 9011610214 9017908153 9017908228 9017910165 9017910165 91511B0816 9162160822 91621J0814 91621J0814 91621J0814 9164180835 9164281025 9164281025 91651B0814 91651B0814 91651B0814
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-28031

1AZFSE..AZT250,255

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08021

1AZFSE,2AZFSE..AZT25#

 2
17118 - STAY, MANIFOLD
17118-28030

1AZFSE..AZT250,255

 1
17125 - STAY, SURGE TANK, NO.1
17125-28010

1AZFSE..AZT250,255

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-28020

1AZFSE,2AZFSE..AZT25#

 1
17136 - INSULATOR, INTAKE MANIFOLD, NO.2
17136-28010

1AZFSE,2AZFSE..AZT25#

 1
17139 - STAY, MANIFOLD, NO.2
17139-28020

1AZFSE..AZT250,255

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-08037

1AZFSE,2AZFSE..AZT25#

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-28031

1AZFSE..AZT250,255

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-28020

1AZFSE..AZT250

 1
17168-28021

1AZFSE..AZT250,255

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-28010

1AZFSE,2AZFSE..AZT25#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-28010

1AZFSE,2AZFSE..AZT25#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-28020

1AZFSE,2AZFSE..AZT25#

 1
17300 - VALVE ASSY, INTAKE AIR CONTROL
17300-28020

1AZFSE,2AZFSE..AZT25#

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-28201

1AZFSE..AZT250,255

 1
25051-28200

1AZFSE..AZT250,255

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-28031

1AZFSE..AZT250,255

 1
25587 - INSULATOR, MANIFOLD CONVERTER, NO.2
25587-28041

1AZFSE..AZT250,255

 1
Common parts
90105-08176
90116-10214
90179-08153
90179-08228
90179-10165
91511-B0816
91621-60822
91621-J0814
91641-80835
91642-81025
91651-B0814
Linked diagrams
1708
2211
2501
8404
