AZT250W-AWPGH (2003)

Toyota Avensis

Production Jul 2003 - Aug 2005
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0307- )

Click highlighted areas on diagram

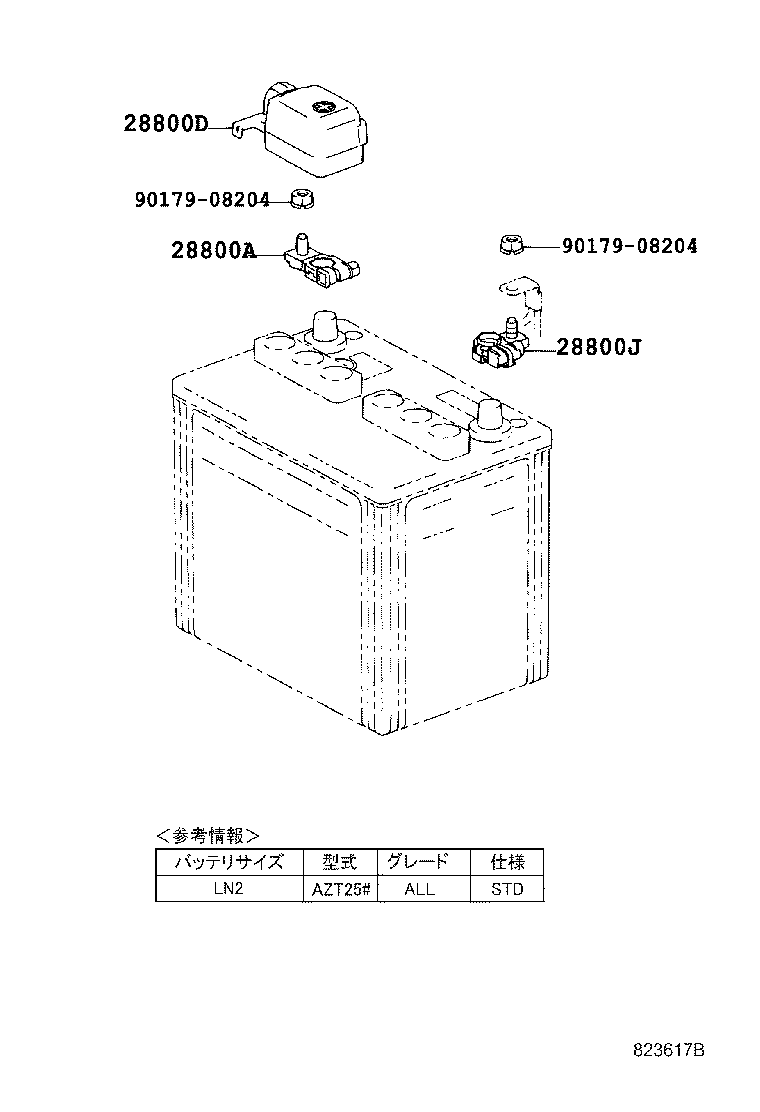

diagram 28800A 28800D 28800J 9017908204 9017908204
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05056

1AZFSE,2AZFSE..AZT25#

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12500

1AZFSE,2AZFSE..AZT25#

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06028

1AZFSE..AZT25#

 1
Common parts
90179-08204
