AZT250-AEPNH (2006)

Toyota Avensis

Production Jun 2006 - Nov 2008
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0606- )

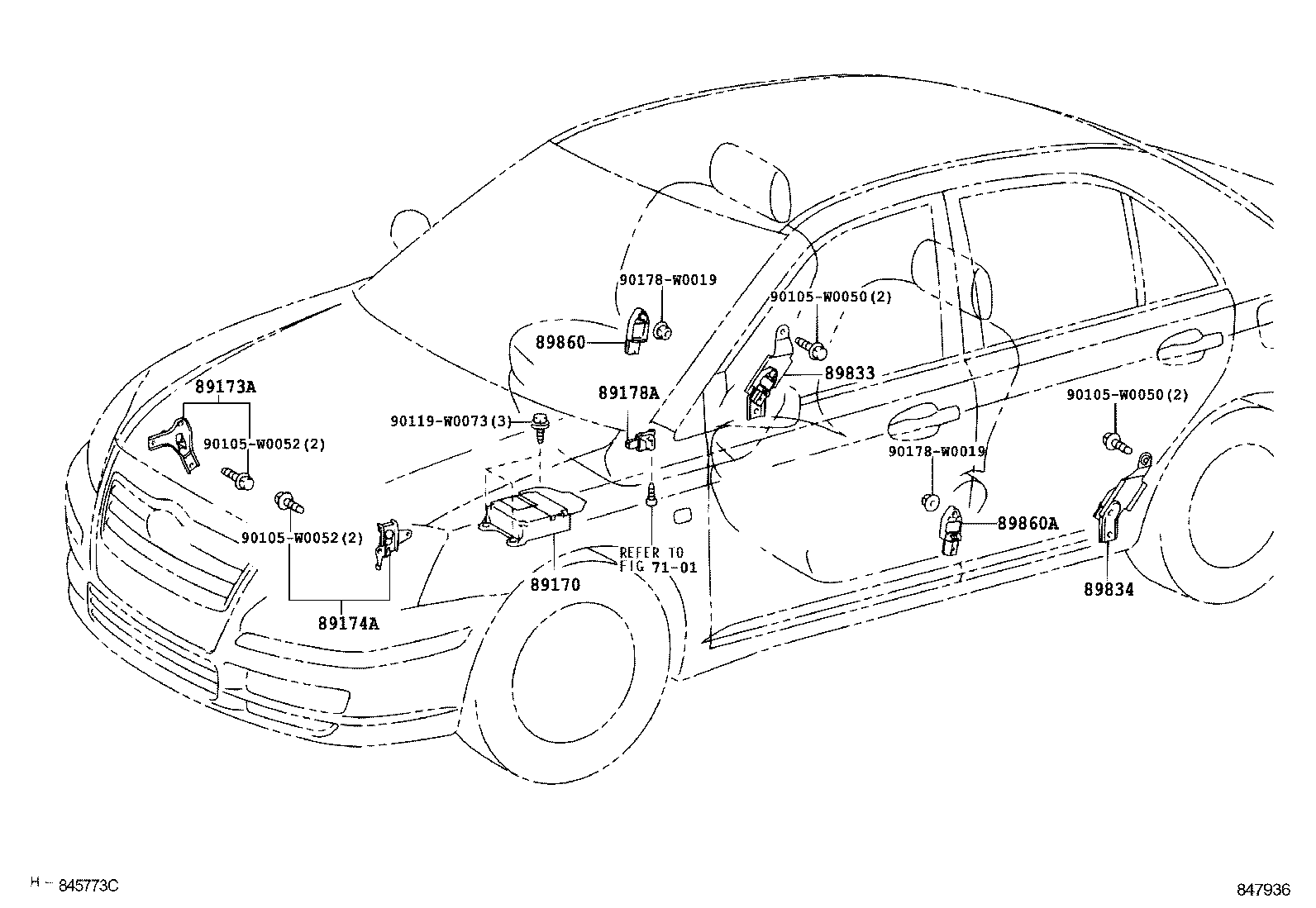

Click highlighted areas on diagram

diagram 7101 89170 89173A 89174A 89178A 89833 89834 89860 89860A 90105W0050 90105W0050 90105W0052 90105W0052 90119W0073 90178W0019 90178W0019
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-05130

AZT25#..XI

 1
89170-05170

AZT25#..LI,XI

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09340

AZT25#

 1
89173-05030

AZT25#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89174-05010

AZT25#

 1
89174-09060

AZT25#

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-0W010

AZT25#

 1
89178-0W010

AZT25#

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-02020

AZT25#

 1
89831-05010

AZT25#

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-05010

AZT25#

 1
89831-02020

AZT25#

 1
Common parts
90105-W0050
90105-W0052
90119-W0073
90178-W0019
Linked diagrams
7101
