AZT250-AEPGH (2003)

Toyota Avensis

Production Jul 2003 - Aug 2005
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0307- )

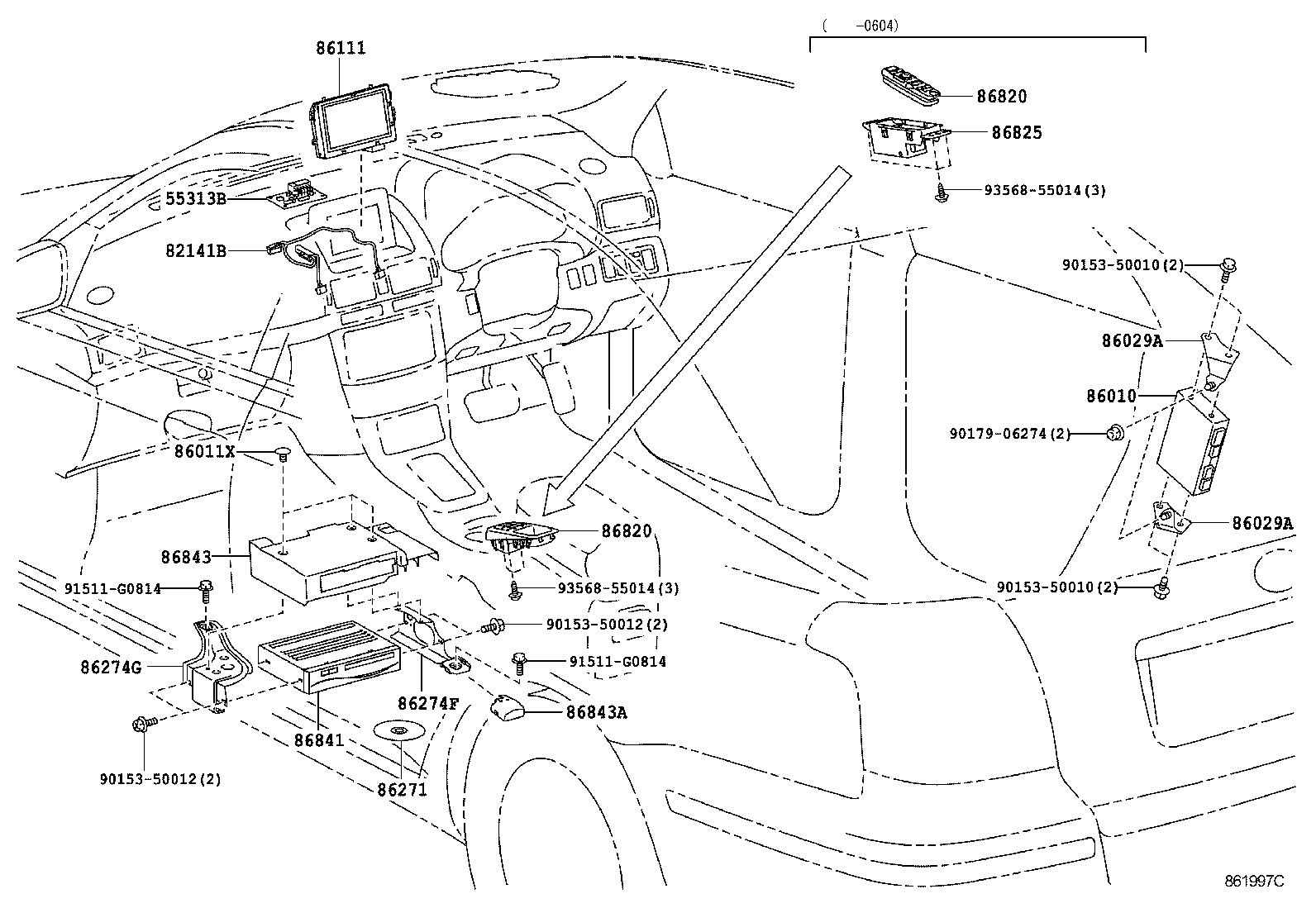

Click highlighted areas on diagram

diagram 55313B 82141B 86010 86011X 86029A 86029A 86111 86271 86274F 86274G 86820 86820 86825 86841 86843 86843A 9015350010 9015350010 9015350012 9015350012 9017906274 91511G0814 91511G0814 9356855014 9356855014
Part # Description Qty Price
55313B - CIRCUIT, DOOR CONTROL UNIT
55313-20060

AZT25#

日本装着&地図ﾅﾋﾞ

 1
82141B - WIRE, INSTRUMENT PANEL
82145-20410

AZT25#

日本装着&地図ﾅﾋﾞ

 1
86010 - TUNER ASSY, TELEVISION
86016-50010

AZT25#

 1
86011X - CLIP, NAVIGATION
90467-05159B0

AZT25#

地図ﾅﾋﾞ,DK.GRAY,TRIM1#

 3
90467-05159A0

AZT250..LI;AZT251..SED

地図ﾅﾋﾞ,IVORY,TRIM0#

 3
86029A - BRACKET SET, TELEVISION, NO.1
86029-20010

AZT25#

ﾏｰｸ A

 1
86029-20020

AZT25#

ﾏｰｸ B

 1
86029A - BRACKET SET, TELEVISION, NO.1
86029-20010

AZT25#

ﾏｰｸ A

 1
86029-20020

AZT25#

ﾏｰｸ B

 1
86111 - MULTI-DISPLAY
86111-20020

AZT25#

PANASONIC,地図ﾅﾋﾞ

 1
86271 - DISC, DISC PLAYER
86271-13030

AZT25#

地図ﾅﾋﾞ

 1
86271-13032

AZT25#

地図ﾅﾋﾞ

 1
86271-13031

AZT25#

地図ﾅﾋﾞ

 1
86271-13033

AZT25#

地図ﾅﾋﾞ

 1
86274F - BRACKET, DISC PLAYER, NO.2
86274-20020

AZT25#

地図ﾅﾋﾞ

 1
86274-20020

AZT25#

地図ﾅﾋﾞ

 1
86274-20020

AZT25#

地図ﾅﾋﾞ

 1
86274G - BRACKET, DISC PLAYER, NO.3
86274-20031

AZT25#

地図ﾅﾋﾞ

 1
86274-20031

AZT25#

地図ﾅﾋﾞ

 1
86274-20031

AZT25#

地図ﾅﾋﾞ

 1
86820 - CONTROLLER ASSY, NAVIGATION
86820-20030

AZT25#

地図ﾅﾋﾞ

 1
86820 - CONTROLLER ASSY, NAVIGATION
86820-20030

AZT25#

地図ﾅﾋﾞ

 1
86825 - HOLDER, NAVIGATION CONTROLLER
86825-20010

AZT25#

地図ﾅﾋﾞ

 1
86841 - COMPUTER, NAVIGATION
86841-51030

AZT25#

地図ﾅﾋﾞ

 1
86843 - COVER, NAVIGATION COMPUTER
86804-20011A0

AZT250..LI;AZT251..SED

地図ﾅﾋﾞ,IVORY,TRIM0#

 1
86804-20011B0

AZT25#

地図ﾅﾋﾞ,DK.GRAY,TRIM1#

 1
86843A - COVER, NAVIGATION COMPUTER
86843-20020A0

AZT250..LI;AZT251..SED

地図ﾅﾋﾞ,IVORY,TRIM0#

 1
86843-20020B0

AZT25#

地図ﾅﾋﾞ,DK.GRAY,TRIM1#

 1
Common parts
90153-50010
90153-50012
90179-06274
91511-G0814
93568-55014
