AZT250-AEPGH (2003)

Toyota Avensis

Production Jul 2003 - Aug 2005
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

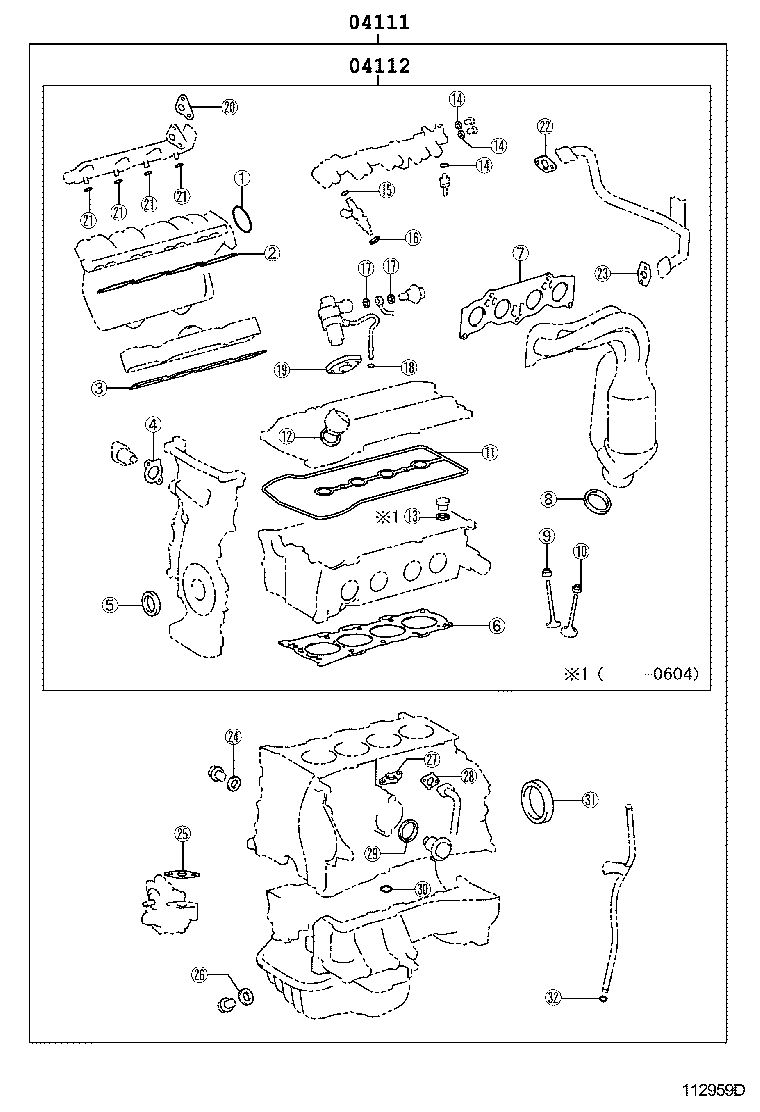

ILLUST NO. 1 OF 2(0307-0710)1AZFSE..AZT250 ; (0309-0710)1AZFSE..AZT255

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-0H150

1AZFSE..AZT250,255

 1
04111-0H080

1AZFSE..AZT25#

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0H080

1AZFSE..AZT25#

 1
04112-0H150

1AZFSE..AZT250,255

 1

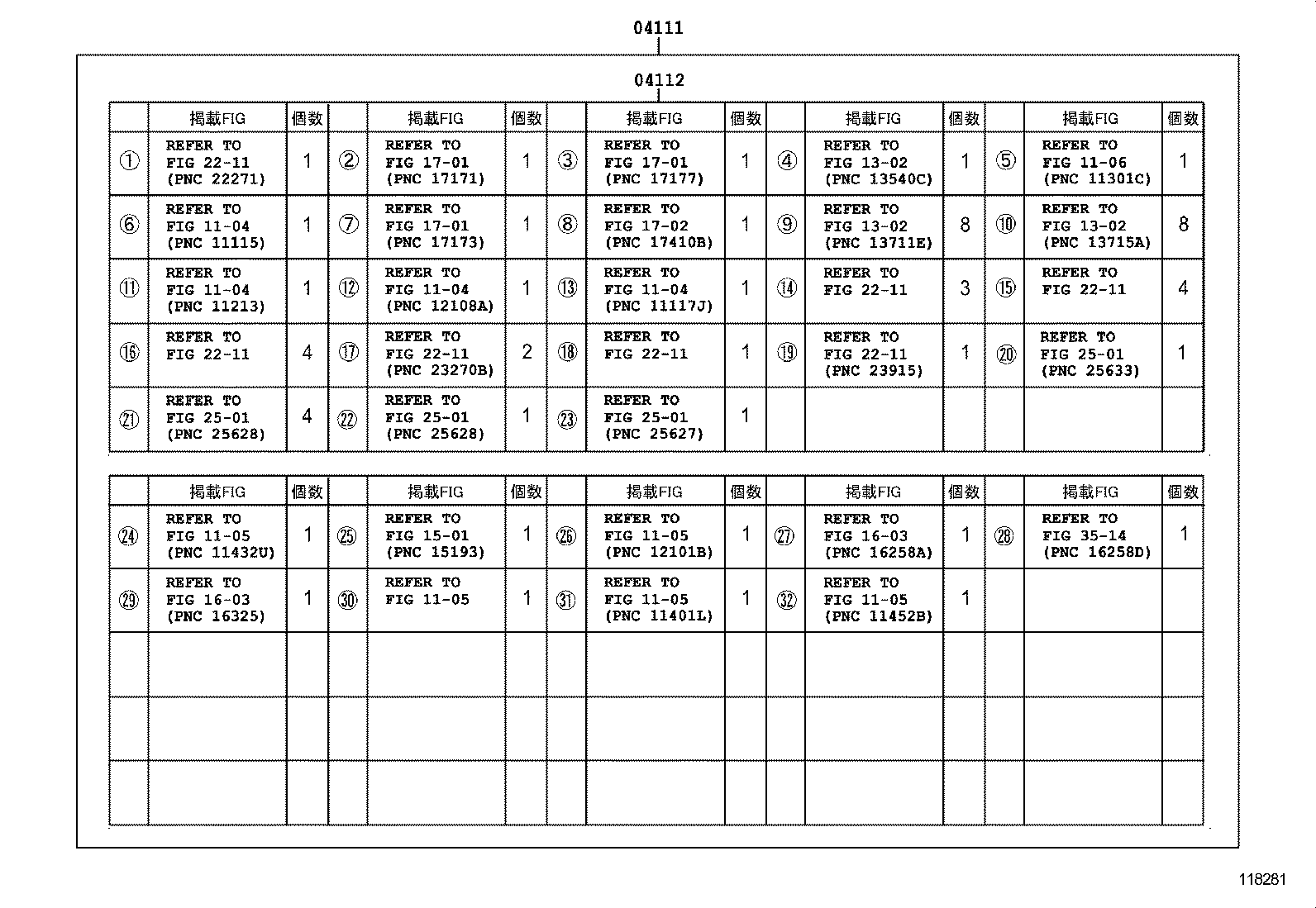

ILLUST NO. 2 OF 2(0307-0710)1AZFSE..AZT250 ; (0309-0710)1AZFSE..AZT255

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1104 1105 1105 1105 1105 1105 1106 1302 1302 1302 1501 1603 1603 1701 1701 1701 1702 2211 2211 2211 2211 2211 2211 2211 2501 2501 2501 2501 3514
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-0H150

1AZFSE..AZT250,255

 1
04111-0H080

1AZFSE..AZT25#

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-0H080

1AZFSE..AZT25#

 1
04112-0H150

1AZFSE..AZT250,255

 1
Linked diagrams
1104
1105
1106
1302
1501
1603
1701
1702
2211
2501
3514
