MCX10-AEPGK (1995)

Toyota Avalon

Production Mar 1995 - Feb 2000
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9608- )

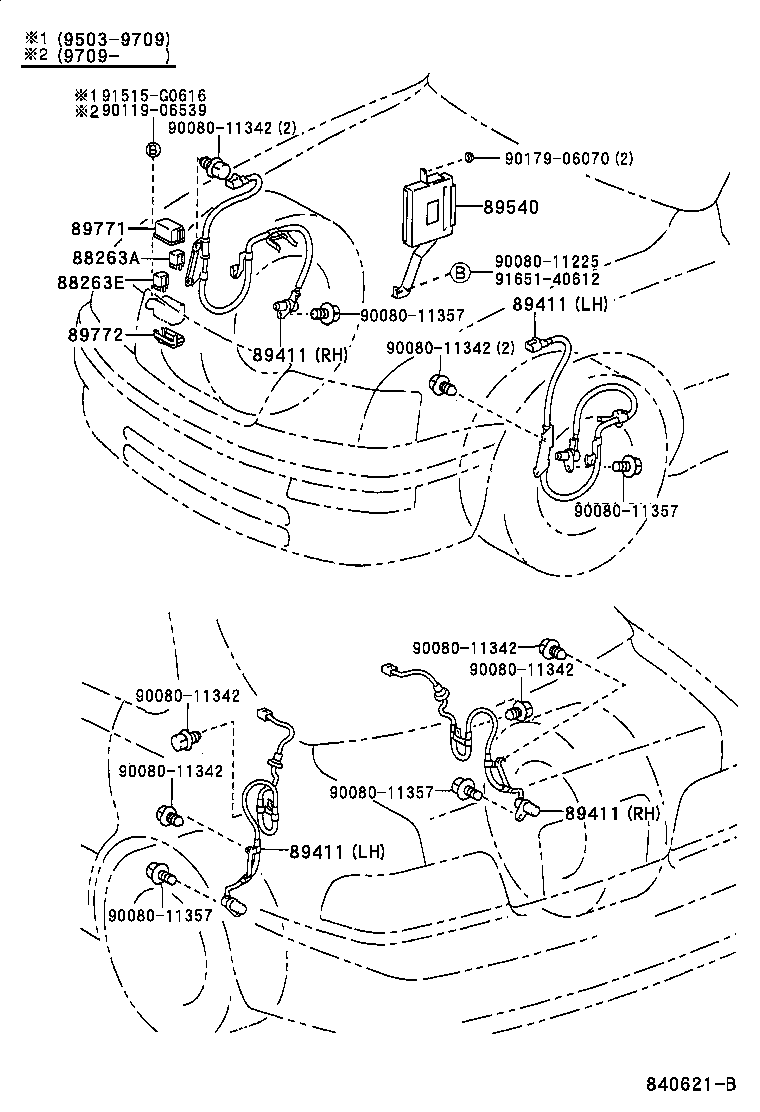

Click highlighted areas on diagram

diagram 88263A 88263E 89411 89411 89411 89411 89540 89771 89772 9008011225 9008011342 9008011342 9008011342 9008011342 9008011342 9008011342 9008011357 9008011357 9008011357 9008011357 9011906539 9017906070 91515G0616 9165140612
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-14110

MCX10

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

MCX10

 1
89411 - SENSOR, SPEED
89542-33010

MCX10

FRONT RH

 1
89543-33030

MCX10

FRONT LH

 1
89546-33020

MCX10

REAR LH

 1
89545-33010

MCX10

REAR RH

 1
89545-33020

MCX10

REAR RH

 1
89546-33010

MCX10

REAR LH

 1
89542-33030

MCX10

FRONT RH

 1
89543-33010

MCX10

FRONT LH

 1
89543-33050

MCX10

FRONT LH

 1
89542-33050

MCX10

FRONT RH

 1
89411 - SENSOR, SPEED
89542-33010

MCX10

FRONT RH

 1
89543-33030

MCX10

FRONT LH

 1
89546-33020

MCX10

REAR LH

 1
89545-33010

MCX10

REAR RH

 1
89545-33020

MCX10

REAR RH

 1
89546-33010

MCX10

REAR LH

 1
89542-33030

MCX10

FRONT RH

 1
89543-33010

MCX10

FRONT LH

 1
89543-33050

MCX10

FRONT LH

 1
89542-33050

MCX10

FRONT RH

 1
89411 - SENSOR, SPEED
89542-33010

MCX10

FRONT RH

 1
89543-33030

MCX10

FRONT LH

 1
89546-33020

MCX10

REAR LH

 1
89545-33010

MCX10

REAR RH

 1
89545-33020

MCX10

REAR RH

 1
89546-33010

MCX10

REAR LH

 1
89542-33030

MCX10

FRONT RH

 1
89543-33010

MCX10

FRONT LH

 1
89543-33050

MCX10

FRONT LH

 1
89542-33050

MCX10

FRONT RH

 1
89411 - SENSOR, SPEED
89542-33010

MCX10

FRONT RH

 1
89543-33030

MCX10

FRONT LH

 1
89546-33020

MCX10

REAR LH

 1
89545-33010

MCX10

REAR RH

 1
89545-33020

MCX10

REAR RH

 1
89546-33010

MCX10

REAR LH

 1
89542-33030

MCX10

FRONT RH

 1
89543-33010

MCX10

FRONT LH

 1
89543-33050

MCX10

FRONT LH

 1
89542-33050

MCX10

FRONT RH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-41010

MCX10

 1
89540-41011

MCX10

 1
89541-07010

MCX10

 1
89771 - COVER, ABS RELAY BLOCK, UPPER
89771-12010

MCX10

 1
89772 - COVER, ABS RELAY BLOCK, LOWER
89772-12010

MCX10

 1
Common parts
90080-11225
90080-11342
90080-11357
90119-06539
90179-06070
91515-G0616
91651-40612

(9503-9608)

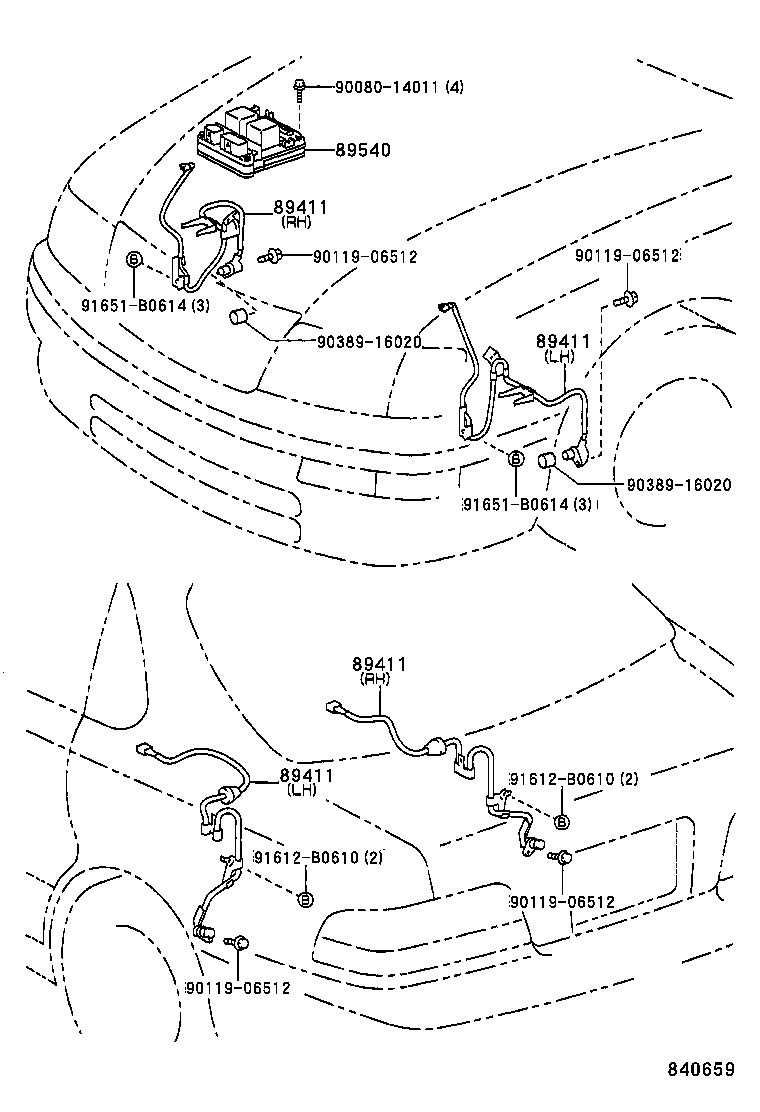

Click highlighted areas on diagram

diagram 89411 89411 89411 89411 89540 9008014011 9011906512 9011906512 9011906512 9011906512 9038916020 9038916020 91612B0610 91612B0610 91651B0614 91651B0614
Part # Description Qty Price
89411 - SENSOR, SPEED
89542-33010

MCX10

FRONT RH

 1
89543-33030

MCX10

FRONT LH

 1
89546-33020

MCX10

REAR LH

 1
89545-33010

MCX10

REAR RH

 1
89545-33020

MCX10

REAR RH

 1
89546-33010

MCX10

REAR LH

 1
89542-33030

MCX10

FRONT RH

 1
89543-33010

MCX10

FRONT LH

 1
89543-33050

MCX10

FRONT LH

 1
89542-33050

MCX10

FRONT RH

 1
89411 - SENSOR, SPEED
89542-33010

MCX10

FRONT RH

 1
89543-33030

MCX10

FRONT LH

 1
89546-33020

MCX10

REAR LH

 1
89545-33010

MCX10

REAR RH

 1
89545-33020

MCX10

REAR RH

 1
89546-33010

MCX10

REAR LH

 1
89542-33030

MCX10

FRONT RH

 1
89543-33010

MCX10

FRONT LH

 1
89543-33050

MCX10

FRONT LH

 1
89542-33050

MCX10

FRONT RH

 1
89411 - SENSOR, SPEED
89542-33010

MCX10

FRONT RH

 1
89543-33030

MCX10

FRONT LH

 1
89546-33020

MCX10

REAR LH

 1
89545-33010

MCX10

REAR RH

 1
89545-33020

MCX10

REAR RH

 1
89546-33010

MCX10

REAR LH

 1
89542-33030

MCX10

FRONT RH

 1
89543-33010

MCX10

FRONT LH

 1
89543-33050

MCX10

FRONT LH

 1
89542-33050

MCX10

FRONT RH

 1
89411 - SENSOR, SPEED
89542-33010

MCX10

FRONT RH

 1
89543-33030

MCX10

FRONT LH

 1
89546-33020

MCX10

REAR LH

 1
89545-33010

MCX10

REAR RH

 1
89545-33020

MCX10

REAR RH

 1
89546-33010

MCX10

REAR LH

 1
89542-33030

MCX10

FRONT RH

 1
89543-33010

MCX10

FRONT LH

 1
89543-33050

MCX10

FRONT LH

 1
89542-33050

MCX10

FRONT RH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-41010

MCX10

 1
89540-41011

MCX10

 1
89541-07010

MCX10

 1
Common parts
90080-14011
90119-06512
90389-16020
91612-B0610
91651-B0614
