MCX10-AEPGK (1995)

Toyota Avalon

Production Mar 1995 - Feb 2000
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9503- )

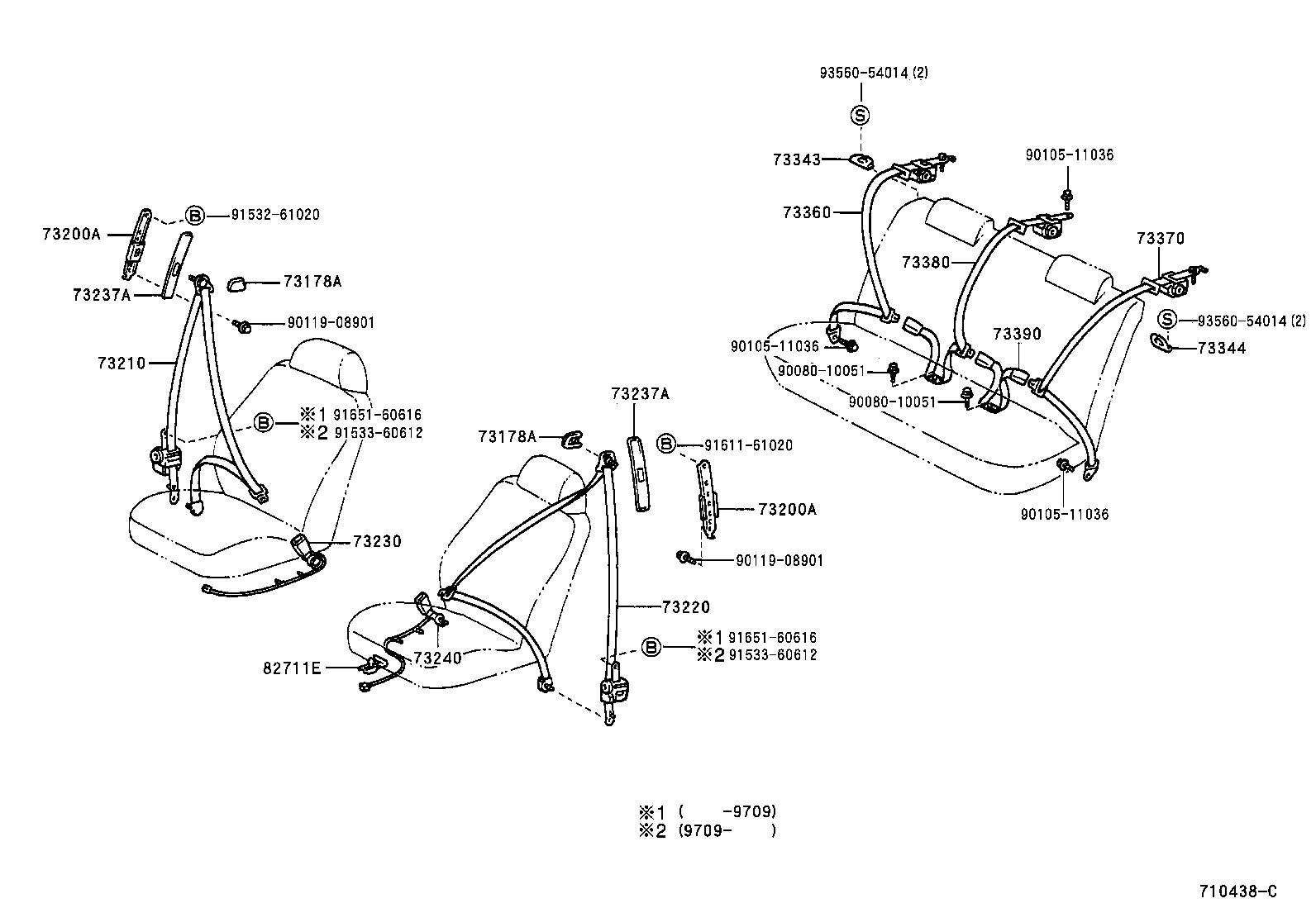

Click highlighted areas on diagram

diagram 73178A 73178A 73200A 73200A 73210 73220 73230 73237A 73237A 73240 73343 73344 73360 73370 73380 73390 82711E 9008010051 9008010051 9010511036 9010511036 9010511036 9011908901 9011908901 9153261020 9153360612 9153360612 9161161020 9165160616 9165160616 9356054014 9356054014
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-07020E1

MCX10

LT. ADOBE,TRIM4#

 2
73178-07020E0

MCX10

QUARTZ,TRIM4#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-07020E1

MCX10

LT. ADOBE,TRIM4#

 2
73178-07020E0

MCX10

QUARTZ,TRIM4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-07010E1

MCX10

LT. ADOBE,TRIM4#

 2
73200-07011E0

MCX10

QUARTZ,TRIM4#

 2
73200-07011E1

MCX10

ADOBE,TRIM4#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-07010E1

MCX10

LT. ADOBE,TRIM4#

 2
73200-07011E0

MCX10

QUARTZ,TRIM4#

 2
73200-07011E1

MCX10

ADOBE,TRIM4#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-07050E0

MCX10

QUARTZ,TRIM4#

 1
73210-07020E0

MCX10

LIGHT OAK,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-07040E0

MCX10

QUARTZ,TRIM4#

 1
73220-07020E0

MCX10

LIGHT OAK,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-06020E1

MCX10

ADOBE,TRIM4#

 1
73230-06020E2

MCX10

QUARTZ,TRIM4#

 1
73237A - COVER, SHOULDER BELT ANCHOR
73237-07010E0

MCX10

QUARTZ,TRIM4#

 2
73237-07010E1

MCX10

LT. ADOBE,TRIM4#

 2
73237A - COVER, SHOULDER BELT ANCHOR
73237-07010E0

MCX10

QUARTZ,TRIM4#

 2
73237-07010E1

MCX10

LT. ADOBE,TRIM4#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-06011E2

MCX10

LT. ADOBE,TRIM4#

 1
73240-06021E2

MCX10

3.0G,LT. ADOBE,TRIM4#

 1
73240-06021E1

MCX10

3.0G,QUARTZ,TRIM4#

 1
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-07010E1

MCX10

LT. ADOBE,TRIM4#

 1
73343-07010E0

MCX10

QUARTZ,TRIM4#

 1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-07010E1

MCX10

LT. ADOBE,TRIM4#

 1
73344-07010E0

MCX10

QUARTZ,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-07030E0

MCX10

QUARTZ,TRIM4#

 1
73360-07020E0

MCX10

LIGHT OAK,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-07020E0

MCX10

LIGHT OAK,TRIM4#

 1
73360-07030E0

MCX10

QUARTZ,TRIM4#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-07030E0

MCX10

QUARTZ,TRIM4#

 1
73470-07021E0

MCX10

LIGHT OAK,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-07011E1

MCX10

LIGHT OAK,TRIM4#

 1
73480-07020E0

MCX10

QUARTZ,TRIM4#

 1
82711E - CLAMP, WIRING HARNESS
82711-3H550

MCX10

 1
82711-3H540

MCX10

3.0G

 1
Common parts
90080-10051
90105-11036
90119-08901
91532-61020
91533-60612
91611-61020
91651-60616
93560-54014
