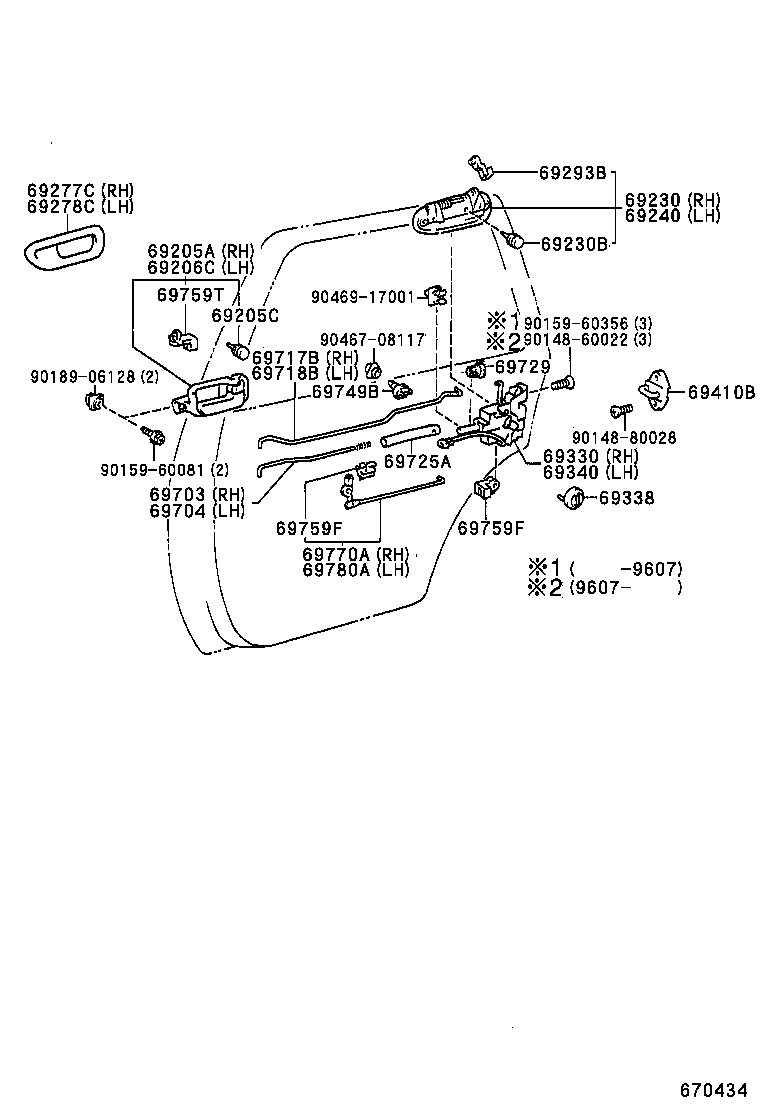

MCX10-AEPGK (1995)
Toyota Avalon
(9503- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-07010C0 |
MCX10 BLACK,TRIM4# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90080-54005 |
MCX10 |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-07010C0 |
MCX10 BLACK,TRIM4# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-AC010G1 |
MCX10 DK.GREEN M.M.,6P2 |
1 | ||
| 69230-AC010H0 |
MCX10 DK.TEAL GREEN MC,751 |
1 | ||
| 69230-AC010A1 |
MCX10 SU.WHITE PM,051 |
1 | ||
| 69230-AC010J0 |
MCX10 DK.BLUE M.M.,8K0 |
1 | ||
| 69230-AC010J1 |
MCX10 DK.BLUE M.M.,8L3 |
1 | ||
| 69230-AC010A1 |
MCX10 SU.WHITE PM,28Y |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90080-54005 |
MCX10 |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-AC010J0 |
MCX10 DK.BLUE M.M.,8K0 |
1 | ||
| 69240-AC010H0 |
MCX10 DK.TEAL GREEN MC,751 |
1 | ||
| 69240-AC010A1 |
MCX10 SU.WHITE PM,28Y |
1 | ||
| 69240-AC010G1 |
MCX10 DK.GREEN M.M.,6P2 |
1 | ||
| 69240-AC010J1 |
MCX10 DK.BLUE M.M.,8L3 |
1 | ||
| 69240-AC010A1 |
MCX10 SU.WHITE PM,051 |
1 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-07010 |
MCX10 ｱﾘ(9 ｽﾋﾟ-ｶ) |
1 | ||
| 69277-07011 |
MCX10 ｱﾘ(9 ｽﾋﾟ-ｶ) |
1 | ||
| 69277-07040 |
MCX10 |
1 | ||
| 69277-07041 |
MCX10 |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69278-07010 |
MCX10 ｱﾘ(9 ｽﾋﾟ-ｶ) |
1 | ||
| 69278-07011 |
MCX10 ｱﾘ(9 ｽﾋﾟ-ｶ) |
1 | ||
| 69278-07040 |
MCX10 |
1 | ||
| 69278-07041 |
MCX10 |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-AC020 |
MCX10 ｲｴﾛｰ |
1 | ||
| 69293-AC010 |
MCX10 ﾅﾁｭﾗﾙ |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69305-07010 |
MCX10 |
1 | ||
| 69338 - KNOB, CHILD PROTECTOR LOCK LEVER | ||||
| 69338-32010 |
MCX10 |
2 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69306-07010 |
MCX10 |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-AA010 |
MCX10 |
2 | ||
| 69410-AC010 |
MCX10 |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69737-07010 |
MCX10 |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69738-07010 |
MCX10 |
1 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-07010 |
MCX10 |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-07010 |
MCX10 |
1 | ||
| 69725A - PROTECTOR, DOOR INSIDE LOCKING LINK | ||||
| 69725-07010 |
MCX10 |
2 | ||
| 69729 - RETAINER, DOOR LOCKING LINK PROTECTOR | ||||
| 69729-AA010 |
MCX10 |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-32030 |
MCX10 |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-AA010 |
MCX10 ｸﾞﾘｰﾝ |
1 | ||
| 69759-AC010 |
MCX10 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-AA040 |
MCX10 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-AA020 |
MCX10 ｸﾞﾚｰ |
1 | ||
| 69759-AA030 |
MCX10 ｲｴﾛｰ |
1 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-AA010 |
MCX10 ｸﾞﾘｰﾝ |
1 | ||
| 69759-AC010 |
MCX10 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-AA040 |
MCX10 ﾌﾞﾗｳﾝ |
1 | ||
| 69759-AA020 |
MCX10 ｸﾞﾚｰ |
1 | ||
| 69759-AA030 |
MCX10 ｲｴﾛｰ |
1 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-06030 |
MCX10 ﾅﾁｭﾗﾙ |
2 | ||
| 69759-03020 |
MCX10 ｲｴﾛｰ |
2 | ||
| 69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-07010 |
MCX10 |
1 | ||
| 69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69780-07010 |
MCX10 |
1 | ||
| Common parts | ||||
| 90148-60022 | ||||
| 90148-80028 | ||||
| 90159-60081 | ||||
| 90159-60356 | ||||
| 90189-06128 | ||||
| 90467-08117 | ||||
| 90469-17001 | ||||
