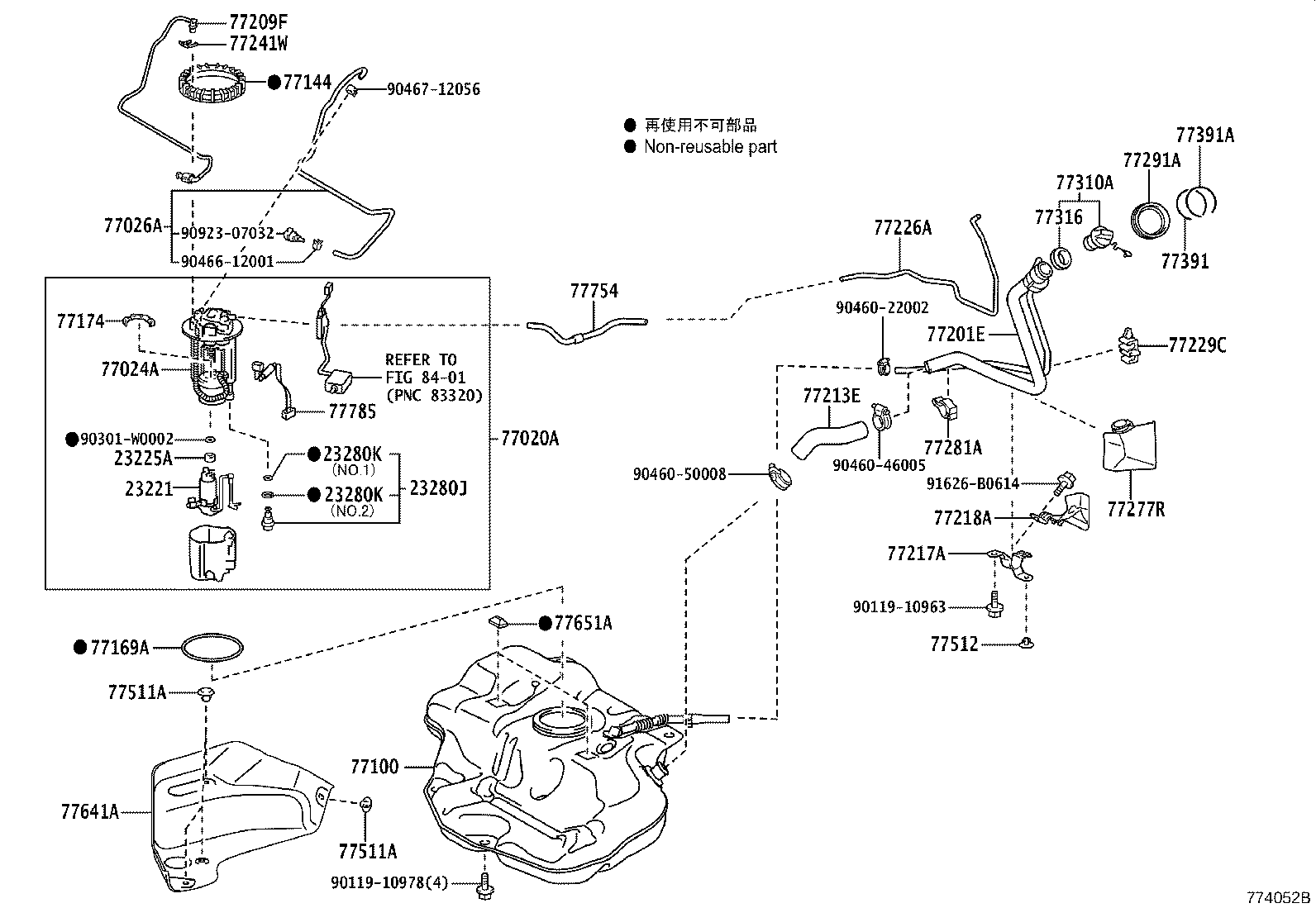

Toyota Auris ZWE186 FUEL TANK & TUBE

Part #	Description	Period	Qty
23221 - PUMP, FUEL
23220-0Q041	2ZRFXE..ZWE186	04/2016 - 05/2018	1
77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77020-02502	ZWE186	04/2016 - 05/2018	1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-02330	ZWE186	04/2016 - 05/2018	1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-02070	ZWE186	04/2016 - 05/2018	1
77100 - TANK ASSY, FUEL
77001-02560	ZWE186	04/2016 - 12/2999	1
77209F - TUBE SUB-ASSY, FUEL TANK MAIN
77209-02190	ZWE186	04/2016 - 05/2018	1
77511A - BRACKET, FUEL TANK
77512-35140	ZWE186	04/2016 - 12/2999	4
77511A - BRACKET, FUEL TANK
77512-35140	ZWE186	04/2016 - 12/2999	4
77641A - PROTECTOR, FUEL TANK, NO.1
77641-02180	ZWE186	04/2016 - 12/2999	1
77651A - CUSHION, FUEL TANK, NO.1
77651-02110	ZWE186	04/2016 - 05/2018	2
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-02090	ZWE186	04/2016 - 05/2018	1
Common parts
90119-10963
90119-10978
90301-W0002
90460-22002
90460-46005
90460-50008
90466-12001
90467-12056
90923-07032
91626-B0614
Linked diagrams

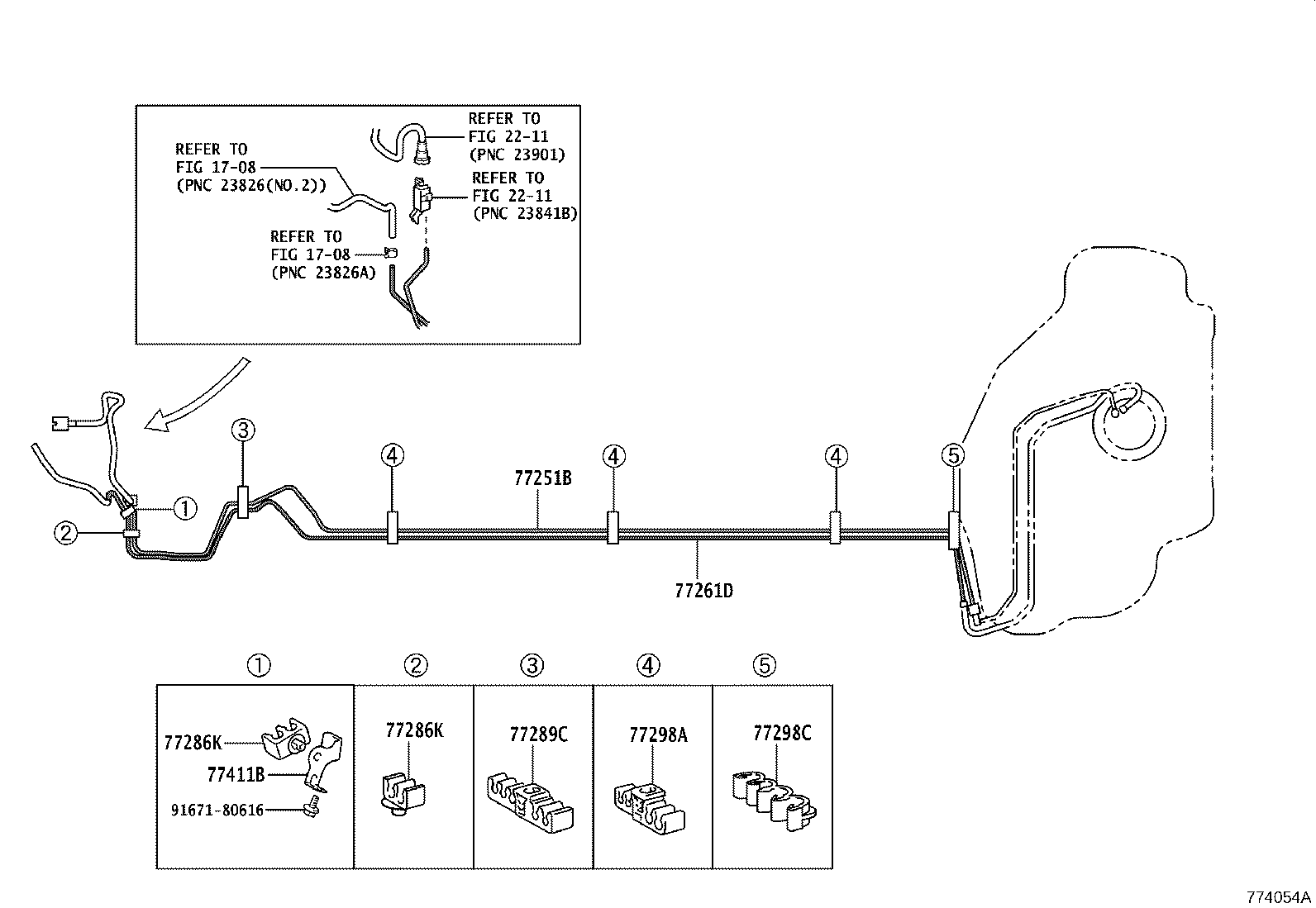

8401

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-12880	ZWE186	04/2016 - 12/2999	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-12650	ZWE186	04/2016 - 12/2999	1
77286K - CLAMP, FUEL TUBE, NO.2
77286-12120	ZWE186	04/2016 - 12/2999	2
77286K - CLAMP, FUEL TUBE, NO.2
77286-12120	ZWE186	04/2016 - 12/2999	2
77298C - CLAMP, FUEL TUBE, NO.4
77299-52070	ZWE186	04/2016 - 12/2999	1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-47010	ZWE186	04/2016 - 12/2999	1
Common parts
91671-80616
Linked diagrams
1708
2211

ZWE186H-BHXNB (2016)
