ZWE186H-BHXNB (2016)

Toyota Auris

Production Apr 2016 - May 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )ZWE186

Click highlighted areas on diagram

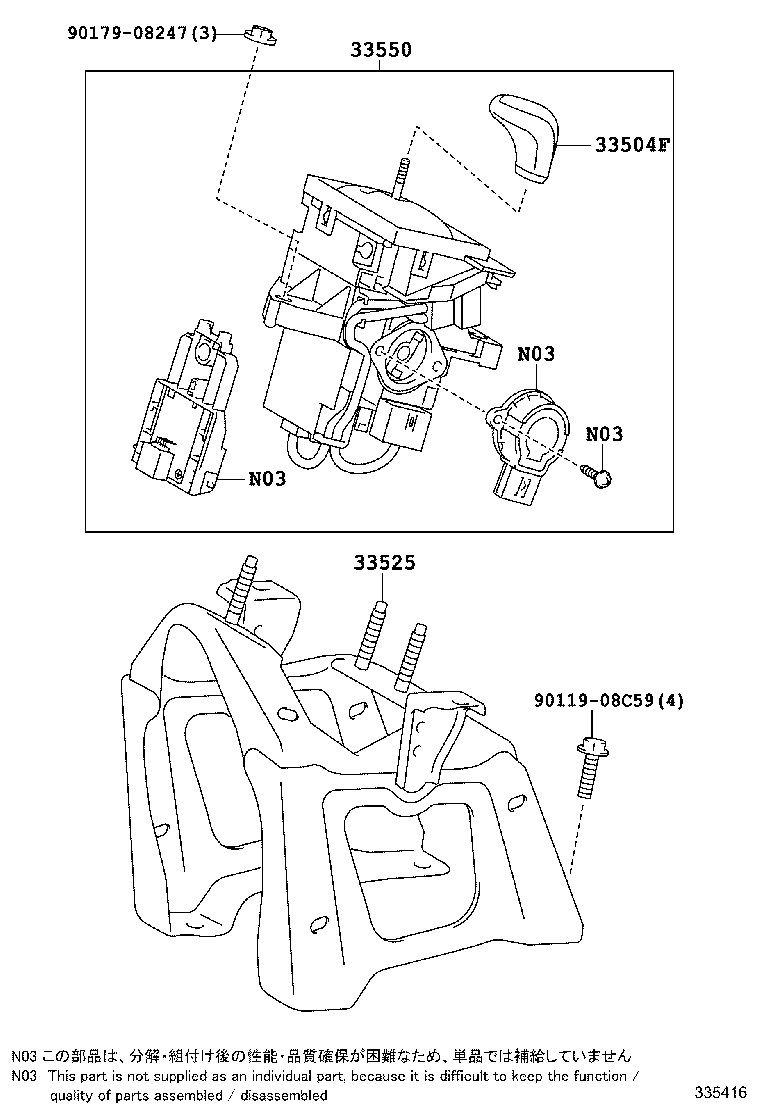

diagram 33504F 33525 33550 9011908C59 9017908247
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-19005

ZWE186

 1
33525 - SUPPORT, SHIFT LEVER
58123-02100

ZWE186

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-12J30

ZWE186

 1
Common parts
90119-08C59
90179-08247
