ZWE186H-BHXNB (2016)

Toyota Auris

Production Apr 2016 - May 2018
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )2ZRFXE

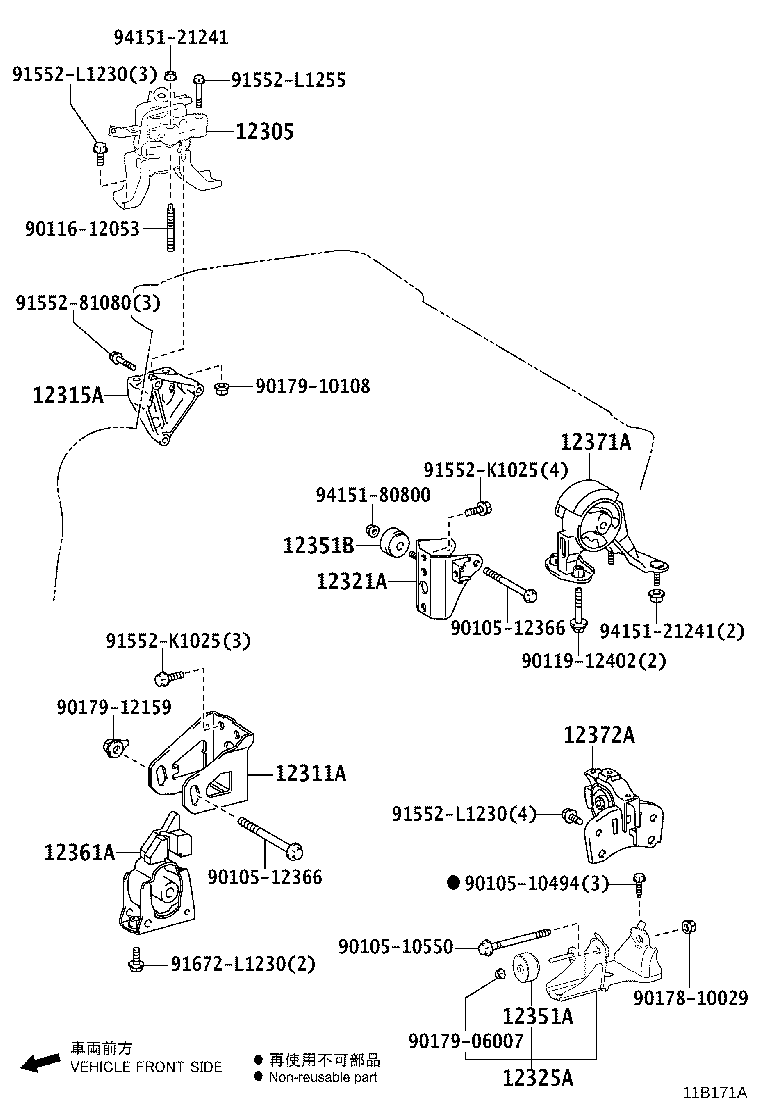

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12325A 12351A 12351B 12361A 12371A 12372A 9010510494 9010510550 9010512366 9010512366 9011612053 9011912402 9017810029 9017906007 9017910108 9017912159 9155281080 91552K1025 91552K1025 91552L1230 91552L1230 91552L1255 91672L1230 9415121241 9415121241 9415180800
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-37370

2ZRFXE..ZWE186

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-37240

2ZRFXE..ZWE186

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-37100

2ZRFXE..ZWE186

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-37060

2ZRFXE..ZWE186

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12304-37160

2ZRFXE..ZWE186

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-37140

2ZRFXE..ZWE186

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-37260

2ZRFXE..ZWE186

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-37270

2ZRFXE..ZWE186

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-37190

2ZRFXE..ZWE186

 1
Common parts
90105-10494
90105-10550
90105-12366
90116-12053
90119-12402
90178-10029
90179-06007
90179-10108
90179-12159
91552-81080
91552-K1025
91552-L1230
91552-L1255
91672-L1230
94151-21241
94151-80800
