ZRE186H-BHXNP (2012)
Toyota Auris
Production
Aug 2012
-
Mar 2015
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1208- )

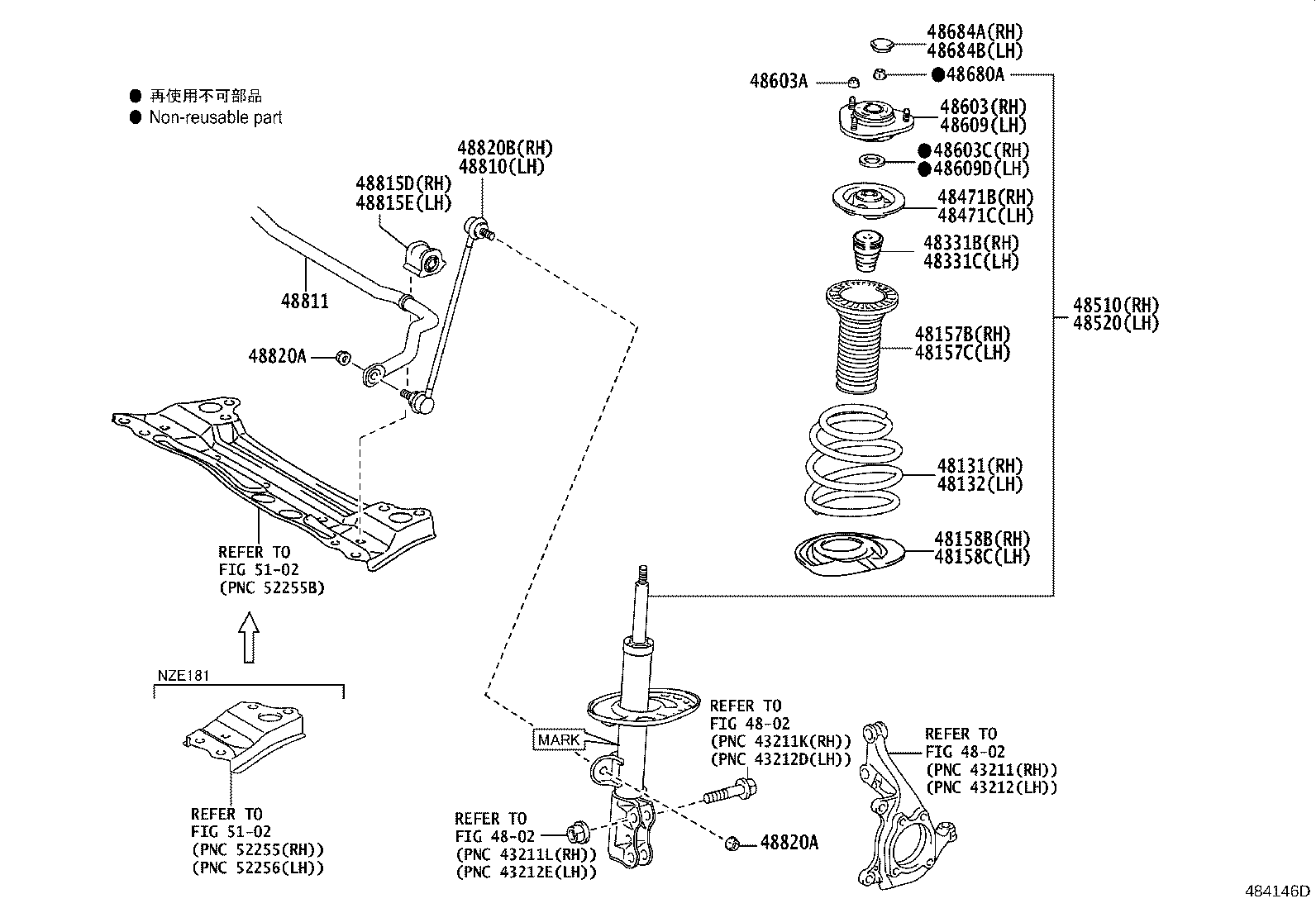

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-12E10 |
NZE181,ZRE186..CVT |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-12E10 |
NZE181,ZRE186..CVT |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-76010 |
NZE18#,ZRE186 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-76010 |
NZE18#,ZRE186 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-76010 |
NZE18#,ZRE186 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-76010 |
NZE18#,ZRE186 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-12250 |
NZE18#,ZRE186 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-12250 |
NZE18#,ZRE186 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-42010 |
NZE18#,ZRE186 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-42010 |
NZE18#,ZRE186 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80595 |
ZRE186..180 ﾏｰｸ 48510−12F50 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80310 |
ZRE186..180 ﾏｰｸ 48520−12F50 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-12600 |
NZE18#,ZRE186 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10030 |
NZE18#,ZRE186 |
6 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22002 |
NZE18#,ZRE186 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-12600 |
NZE18#,ZRE186 |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22002 |
NZE18#,ZRE186 |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90179-14015 |
NZE18#,ZRE186 |
2 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-52010 |
NZE18#,ZRE186 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-52010 |
NZE18#,ZRE186 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-42030 |
NZE18#,ZRE186 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-12A10 |
NZE18#,ZRE186 |
1 | ||
| 48815D - BUSH, FRONT STABILIZER BAR, RH | ||||
| 48815-12390 |
NZE18#,ZRE186 |
1 | ||
| 48815E - BUSH, FRONT STABILIZER BAR, LH | ||||
| 48815-12370 |
NZE18#,ZRE186 |
1 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
NZE18#,ZRE186 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
NZE18#,ZRE186 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-42030 |
NZE18#,ZRE186 |
1 | ||
| Linked diagrams | ||||
| 4802 | ||||
| 5102 | ||||
